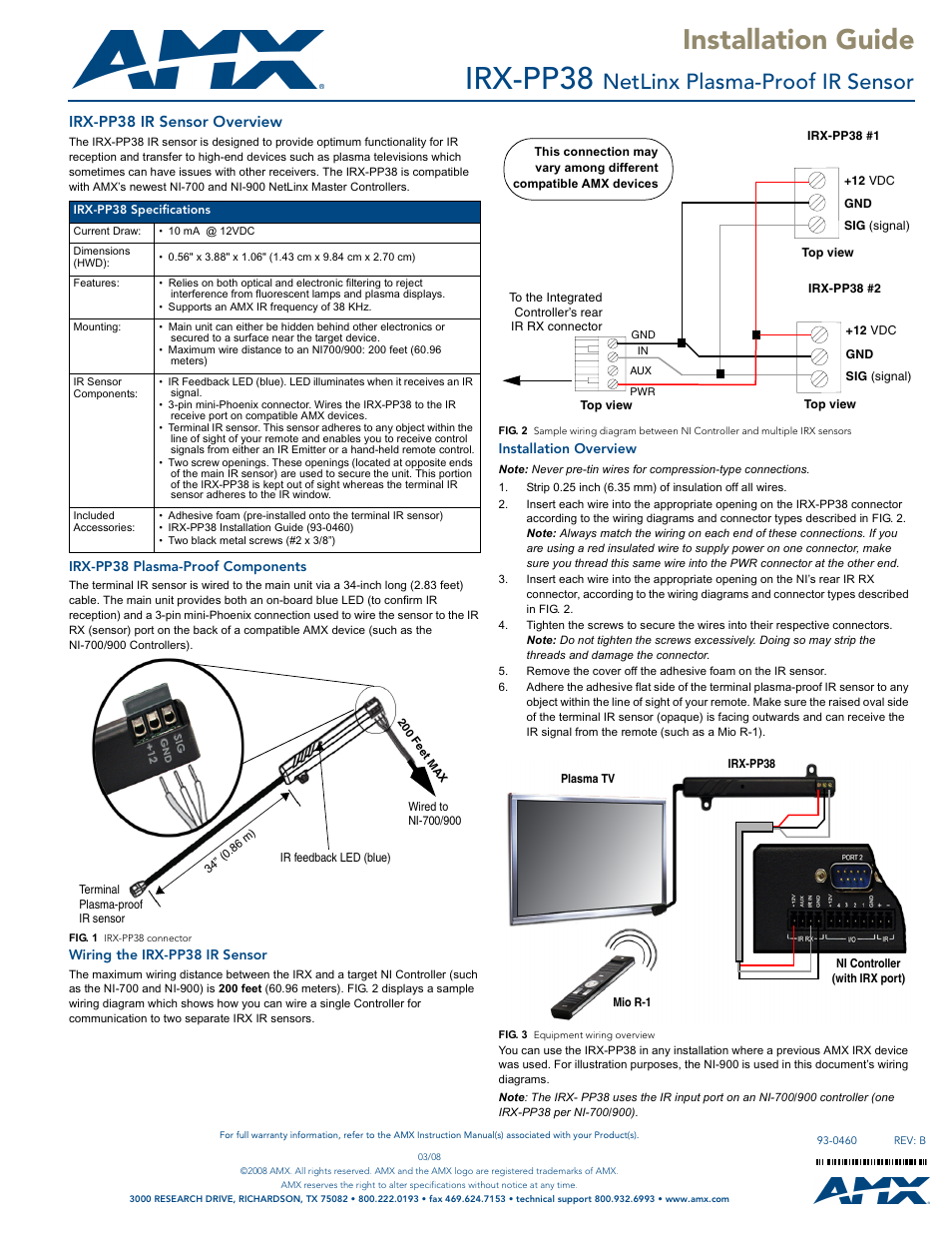

- IRX-PP38 NetLinx Plasma-Proof IR Sensor Installation Guide
- IRX-PP38 IR Sensor Overview
- IRX-PP38 Plasma-Proof Components
- Wiring the IRX-PP38 IR Sensor
- Installation Overview
- 1. Strip 0.25 inch (6.35 mm) of insulation off all wires.
- 2. Insert each wire into the appropriate opening on the IRX-PP38 connector according to the wiring diagrams and connector types described in FIG. 2. Note: Always match the wiring on each end of these connections. If you are using a red insulated wire...
- 3. Insert each wire into the appropriate opening on the NI’s rear IR RX connector, according to the wiring diagrams and connector types described in FIG. 2.
- 4. Tighten the screws to secure the wires into their respective connectors. Note: Do not tighten the screws excessively. Doing so may strip the threads and damage the connector.
- 5. Remove the cover off the adhesive foam on the IR sensor.
- 6. Adhere the adhesive flat side of the terminal plasma-proof IR sensor to any object within the line of sight of your remote. Make sure the raised oval side of the terminal IR sensor (opaque) is facing outwards and can receive the IR signal from the...
- IRX-PP38 IR Sensor Overview
