INSTALLING GAS-RT ON INDEX COVER
1 Using the transmitter mounting hole pattern and matching your index cover, locate the correct hole centers with
the appropriate transfer punch Drill each hole with the Vari-Bit and remove all chips and burrs from the holes before
proceeding See Figure 2

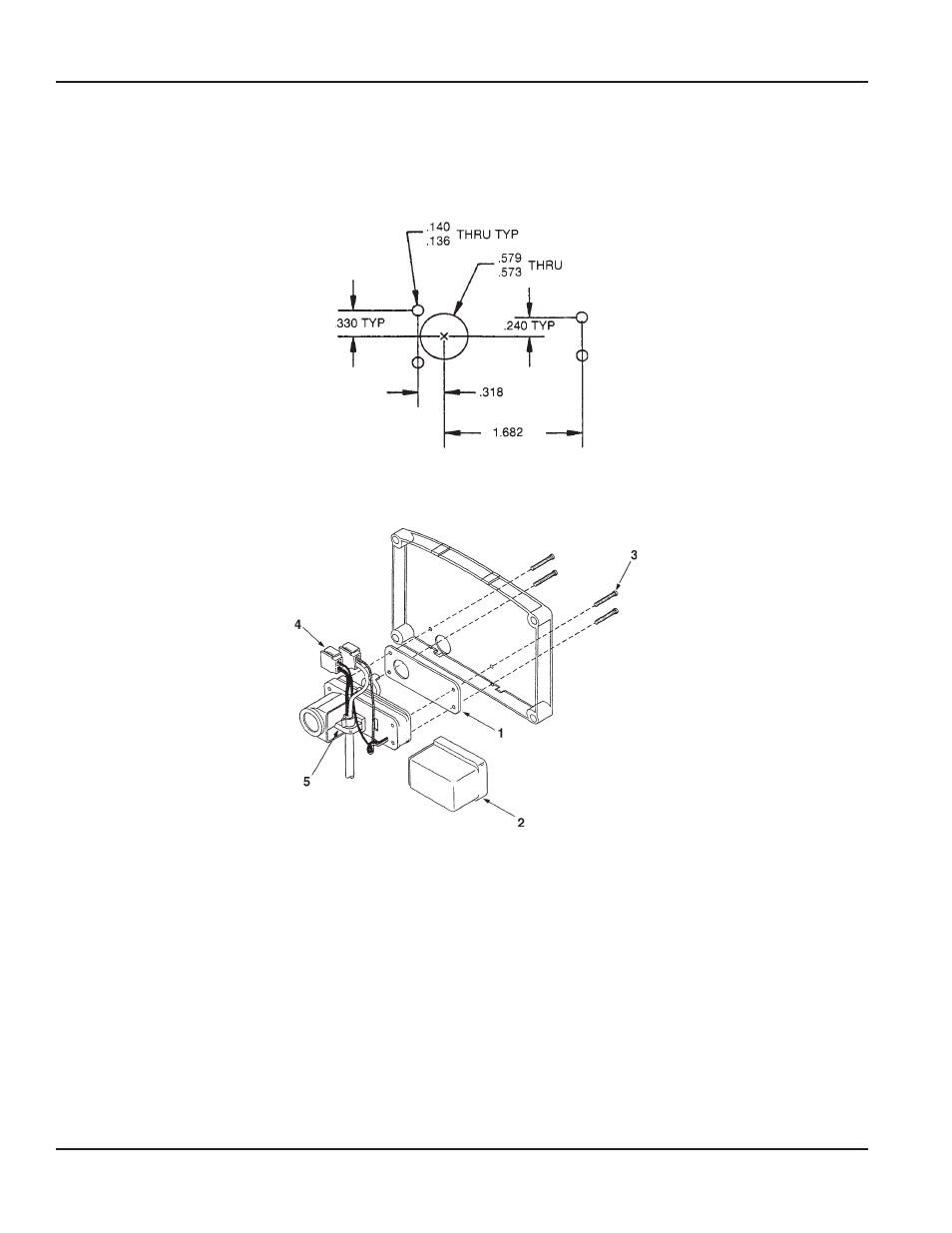

Figure 2: Mounting hole pattern
2 Mount the Gas-RT on the index cover using the TORX screws provided and reinstall the index cover on the meter Operate
the meter and observe the Gas-RT to ensure that no binding is occurring See Figure 3
Figure 3: Mounting detail, see "Required materials" on page 3
