5

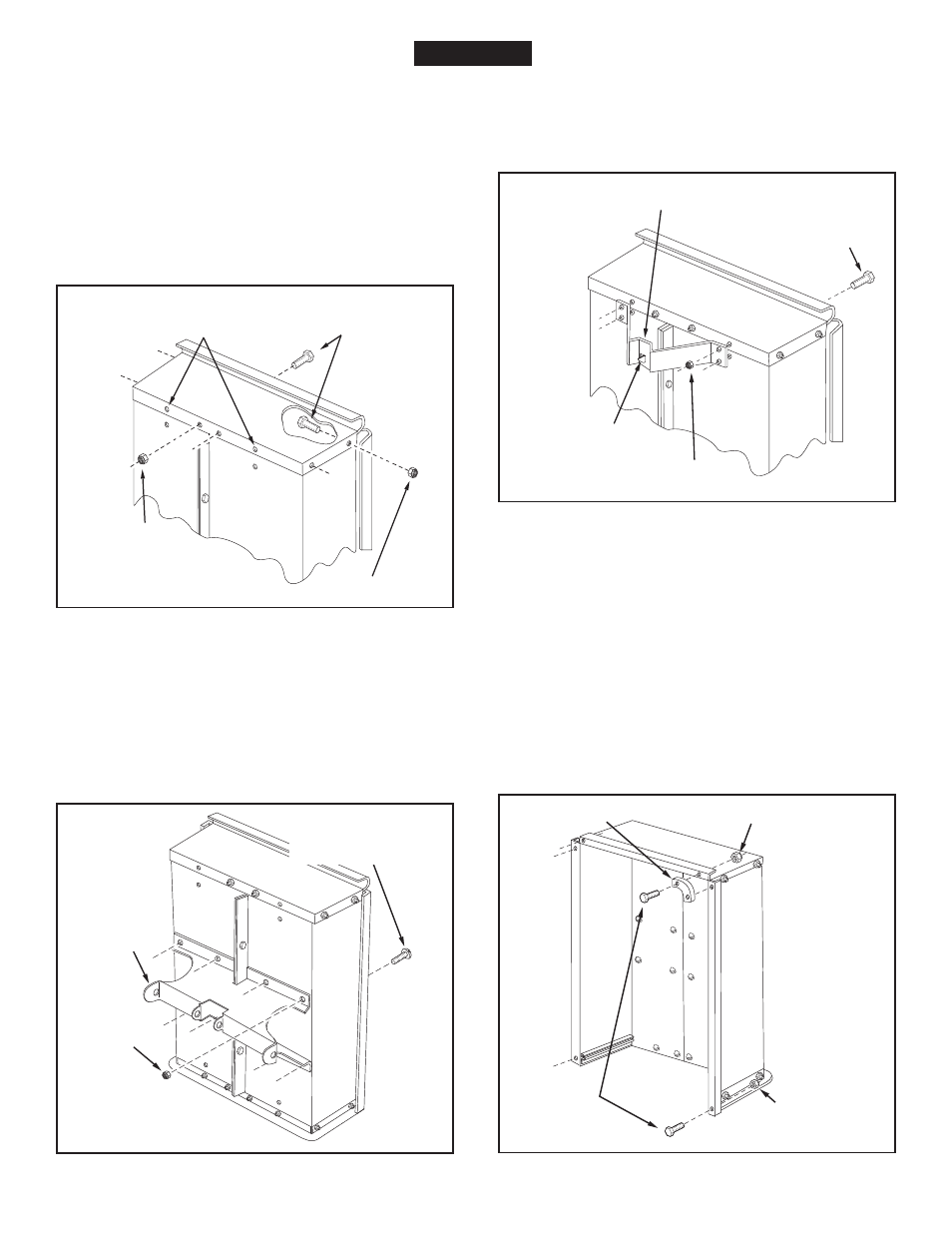

FIGURE 6
FIGURE 7
10. Assemble the wheel support to the cart using eight 5/16"
x 3/4" truss head bolts and 5/16" nylock nuts as shown
in figure 6. Heads of bolts go on the inside of the cart.
Tighten.
FIGURE 5
9. Assemble the front panel over the end of the cart using
six 1/4" x 3/4" hex bolts and 1/4" nylock nuts as shown
in figure 5. Leave two holes in the bottom of the panel
empty as shown. With the cart body halves pulled
together,
tighten the bolts in the bottom of the front
panel, then tighten the bolts in the sides. See figure
5.
At this time tighten the bolts assembled in step 4, which
fasten the bottom of the cart together.
FIGURE 8
12. Assemble the two corner caps to the front corners of
the cart using four 1/4" x 3/4" hex bolts and 1/4" nylock
nuts. Also assemble two 1/4" x 3/4" hex bolts and 1/4"
nylock nuts to the two rear corners of the cart.
TIGHTEN.
See figure 8.
11. Turn the latch stand bracket so that the aligning tab is
at the rear (bottom) of the bracket. Assemble the latch
stand bracket to the cart using four 1/4" x 3/4" hex bolts
and 1/4" nylock nuts.
TIGHTEN. See figure 7.
1/4" x 3/4"
HEX BOLTS
1/4" NYLOCK NUT
1/4" NYLOCK NUT
LEAVE HOLES OPEN FOR
LATCH STAND BRACKET
5/16" NYLOCK
NUT
WHEEL
SUPPORT
5/16" x 3/4"
TRUSS HEAD BOLT
1/4" x 3/4"
HEX BOLT
LATCH STAND BRACKET
1/4" NYLOCK NUT
ALIGNING TAB
AT BOTTOM
CORNER CAP
1/4" x 3/4"
HEX BOLT
1/4" NYLOCK NUT
1/4" NYLOCK
NUT
ENGLISH
