Instruction Manual pH 5+, pH 6+, Ion 6+
-4-

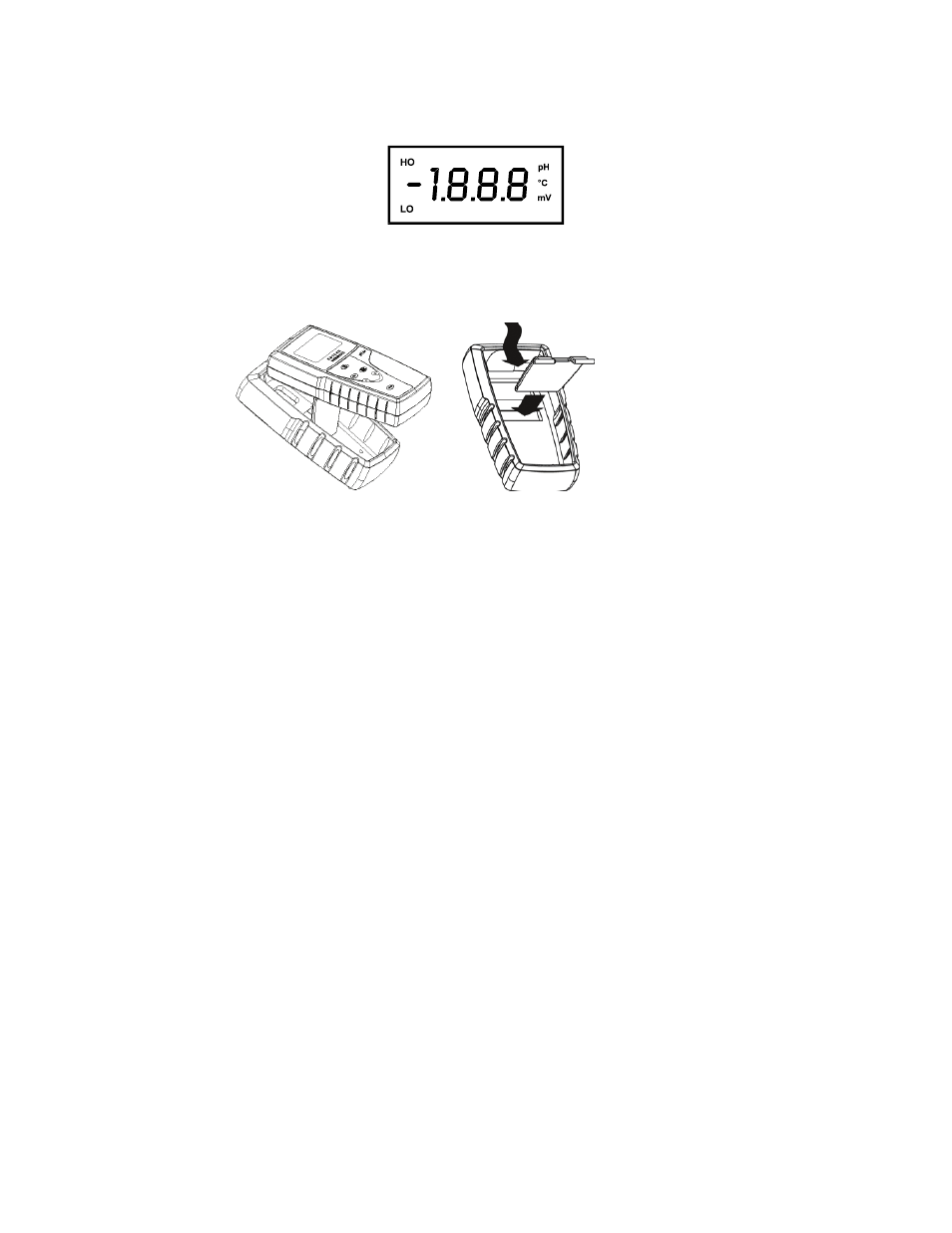

2.2 Description of LCD Annunciators
The large custom LCD consists of 3½-digit segments which uses annunciators for pH,
mV or
o C (Temperature). No annunciator is shown in Ion mode. Other annunciators
include “HO” (when HOLD function is activated) and “LO” (low battery condition).
2.3 Inserting & Removing the Rubber Armor / Stand
1. To remove meter from rubber armor, push out from the bottom edges of meter until
it is completely out of boot. Ensure that cables of ISE/pH electrode or temperature
probe are not connected. Figure A.
2. To insert meter into armor, slide in from the top of meter before pushing the bottom
edges of meter down to set it into position. Lift up the stand at the back of meter for
bench top applications if necessary. Figure B.
Figure A Figure B
