The part in fabric can be washed and replaced (fig. 2A).
To remove it, release the stud button and slid it out from the free
side. To fasten again, slide back in the fabric from the free side and
fix the fabric to the stud button.
FRONT PART : ADJUSTING see figure 3A
Loosen without removing the three screws on the right, left and
central part. Adjust the position of the front part rotating it upwards
or downwards until the desired position is obtained. After finding the
position, tighten the three screws and re-check the position of the
front part.
For all these operation, use the proper tool to tighten these
screws.
FRONT PART : REPLACING see figure 3B
Loosen and remove the three screws placed on the t right, left and
central part. Position the new front part by making the holes match
with the three threaded fittings on the shell. Insert the screws in the
specific housings without tightening completely. Adjust the position of
the front part and lock it into position as indicated in above para-
graph.
For all these operation, use the proper tool to tighten these
screws.
USER’S INSTRUCTIONS
ENG

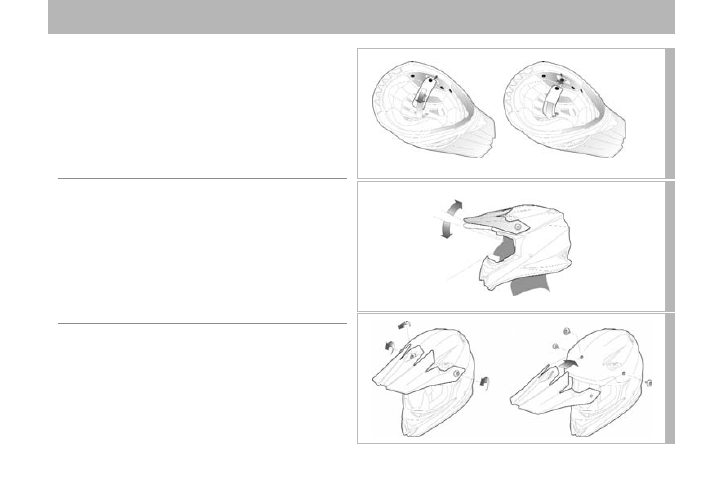

figure 2A
