PaRTS lIST

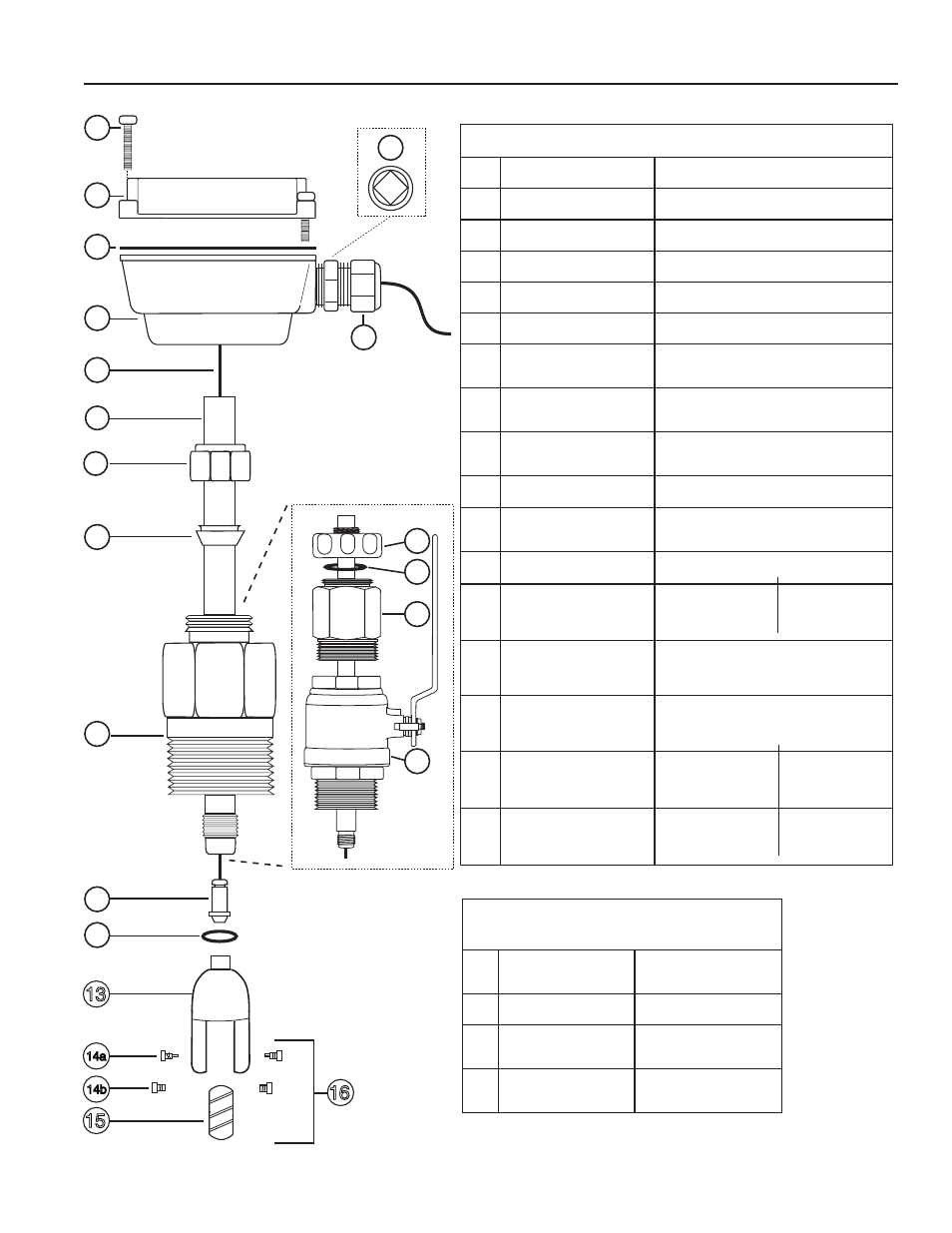

TX 101/201 Parts
1 Upper housing assembly 30475
2 Housing Gasket 26211
3 Lower housing Not Field Replaceable
4 Housing screw assembly 26229 (4 required)
5 Plug, steel 26073
6 Strain relief 07655
7 Sensor w/cable
26310 (Standard - FT420)
29953 (Micropower - FT415)
8 Tube Not Field Replaceable
9 Compression nut
14199 (Brass)
15064 (SS)
10 Compression Ferrule 26065
11 Adapter fitting
30998 (Brass)
30999 (SS)
12 Rotor housing O-ring 16454
13 Rotor housing
Before Jan 1, 2011 After Jan 1, 2011
25977 (Brass) 33023 (Brass)
25978 (SS) 33024 (SS)
14a
Jewel bearing assembly
(for carbide shaft)
25901 (2 required)
14b Jewel Bearing Assembly
(for ceramic shaft)
16710 (2 required)
15 Turbine Rotor assembly
Before Jan 1, 2011 After Jan 1, 2011
25946 (Polypro) 33015 (Kynar)
25947 (Kynar)
16
Rotor repair kit
(consists of #15 & #16)
Before Jan 1, 2011 After Jan 1, 2011
25930 (Poly/Carbide) 33087 (Kynar/Carb)
25945 (Kynar/Ceramic)
TX 115/215 Parts (hot tap)
All part numbers are the same except those below
17 Locking Collar
14190 (Brass)
15170 (SS)
18 Adapter fitting O-ring 26029
19 Adapter, hot tap
26130 (Brass)
26131 (SS)
20
Valve assembly
(inlcudes Adapter, #20)
14225 (Brass)
15225 (SS)
