PC1 and PC2 Power Supply
Specifications & Instructions

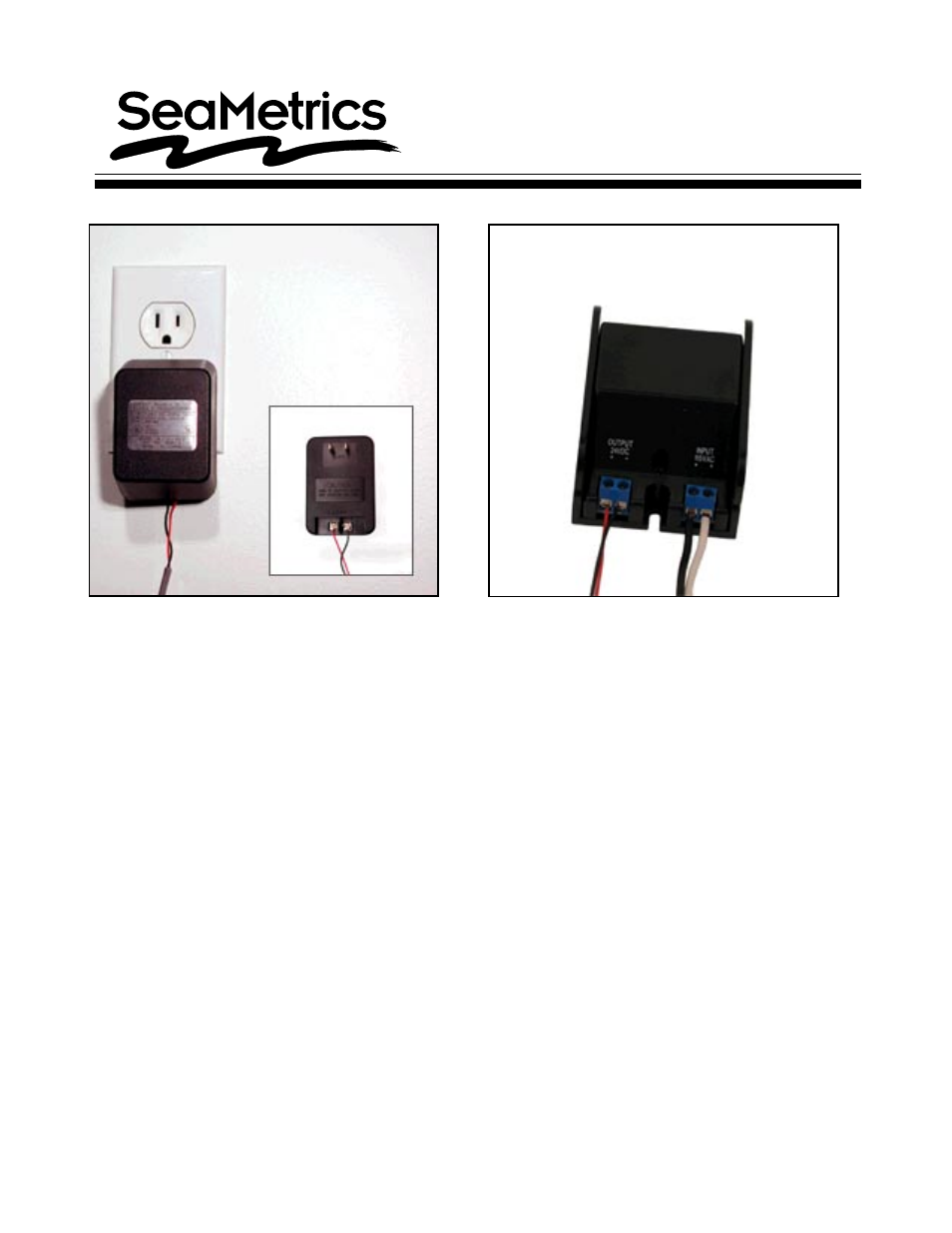

PC1 Power Supply
PC2 Power Supply
Description
The PC1 is designed as a convenient 12VDC power
supply for use with a 115 VAC outlet. Terminals allow
user connection of wiring on the low-voltage side. Since
this is an unregulated power supply, actual voltage may
be as high as 16 VDC, depending on load.
Specifications
Input Power
115VAC/60Hz
Output Voltage/Current
11.4-12.6VDC@100mA
15.4VDC@No Load
Regulation
Unregulated
Screw Terminal Size
18 AWG
Dimensions
81 x 56 x 49mm
(3.19"l x 2.20"w x 1.93"h)
Operating Temp.
0-60ºC
Safety Agency Approvals UL1310
UL tested and approved
to CSA C22.2 #223
Description
The PC2 is a terminal-by-terminal supply, designed for
use in the protected environment of a panel or enclo-
sure. This compact unit is regulated at 24 VDC, and is
well-suited for powering a 4-20 mA loop.
Specifications
Input Power
115VAC/60Hz (External
fuse recommended)
Output Voltage/Current
24VDC +/-1.0VDC@100mA
Regulation
+/-1.0% (line and load)
Ripple and Noise
1mV RMS
Screw Terminal Size
18 AWG
Dimensions
76 x 56 x 35.5mm
(2.99"l x 2.20"w x 1.40"h)
Operating Temp.
0-60ºC
LT-10828-A
Page 1 of 2
