PC3
120 Vac +/- 10%, 60 Hz, 19 W
24 Vdc @ 500 mA
Unregulated; may vary up to 32 Vdc
22 - 18 AWG
3.23” L x 2.20” W x 1.93” H
(82 x 56 x 49 mm)
32˚ to 140˚ F (0˚ to 60˚ C)
UL, UL/C (Canada) listed
Input Power
Output Voltage/Current
Regulation
Output Terminal Wire Size
Dimensions
Operating Temperature
Safety Agency Approvals
SPECIFICATIONS*
The PC3 is designed as a con-
venient 24 Vdc power supply
for use with a 120 Vac outlet.
Terminals allow user connec-
tion of wiring on the low-voltage
side. Since this is an unregulated
power supply, actual voltage may
be as high as 36 Vdc, depending
on line voltage and load.

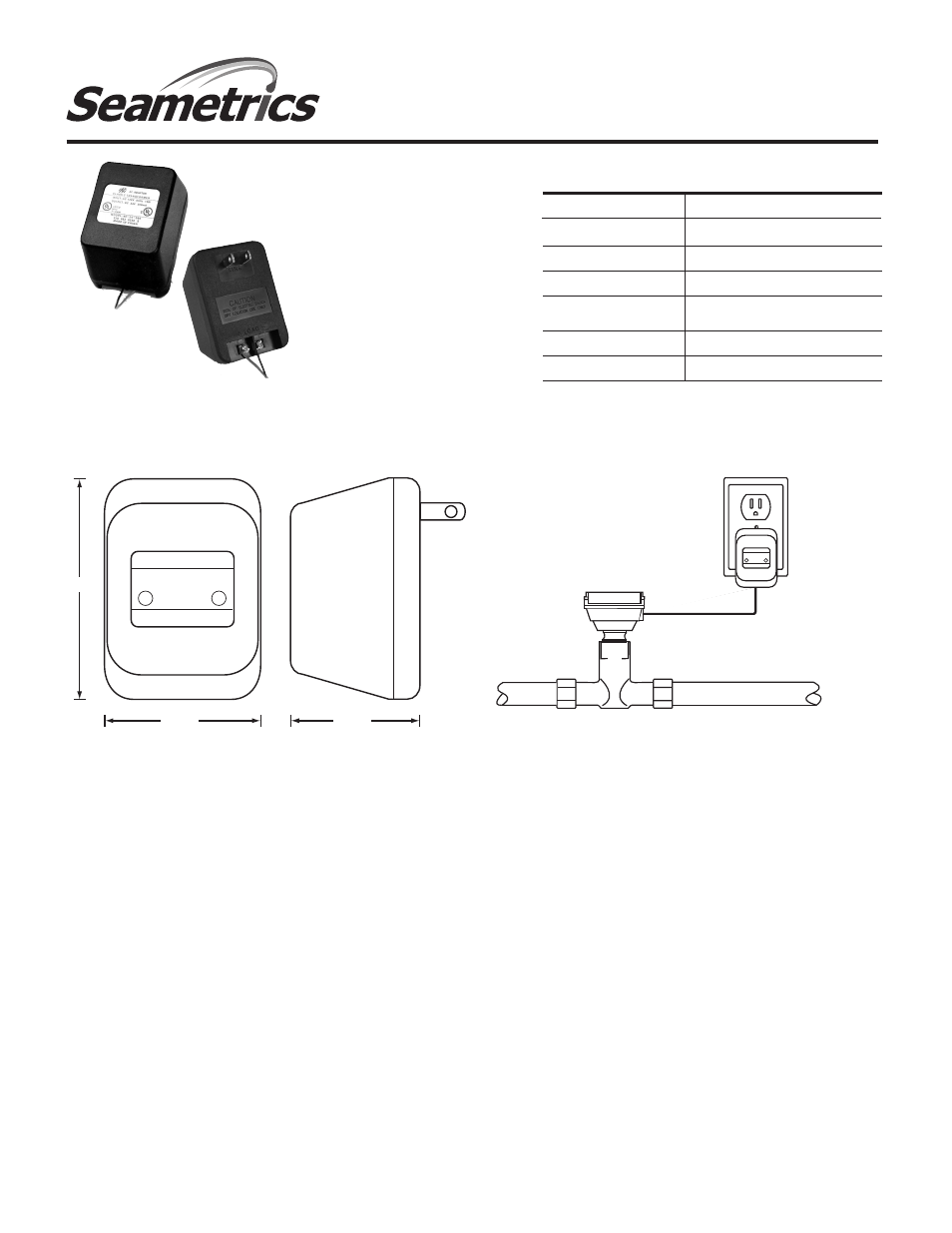

DIMENSIONS TYPICAL APPLICATION
PC-SERIES
Power Supply
U L U L
I / P : 120V AC 60Hz 19W
O/P : 24V DC 500mA
2.20"
3.23"
1.93"
U L U L
I / P : 120V AC 60Hz 19W
O/P : 246V DC 500mA
FT420 Indicator
PC3
Power Supply
*Specifications subject to change • Please consult our website for
current data (www.seametrics.com).
