GENERAL INFORMATION, FEATURES, DIMENSIONS, SPECIFICATIONS

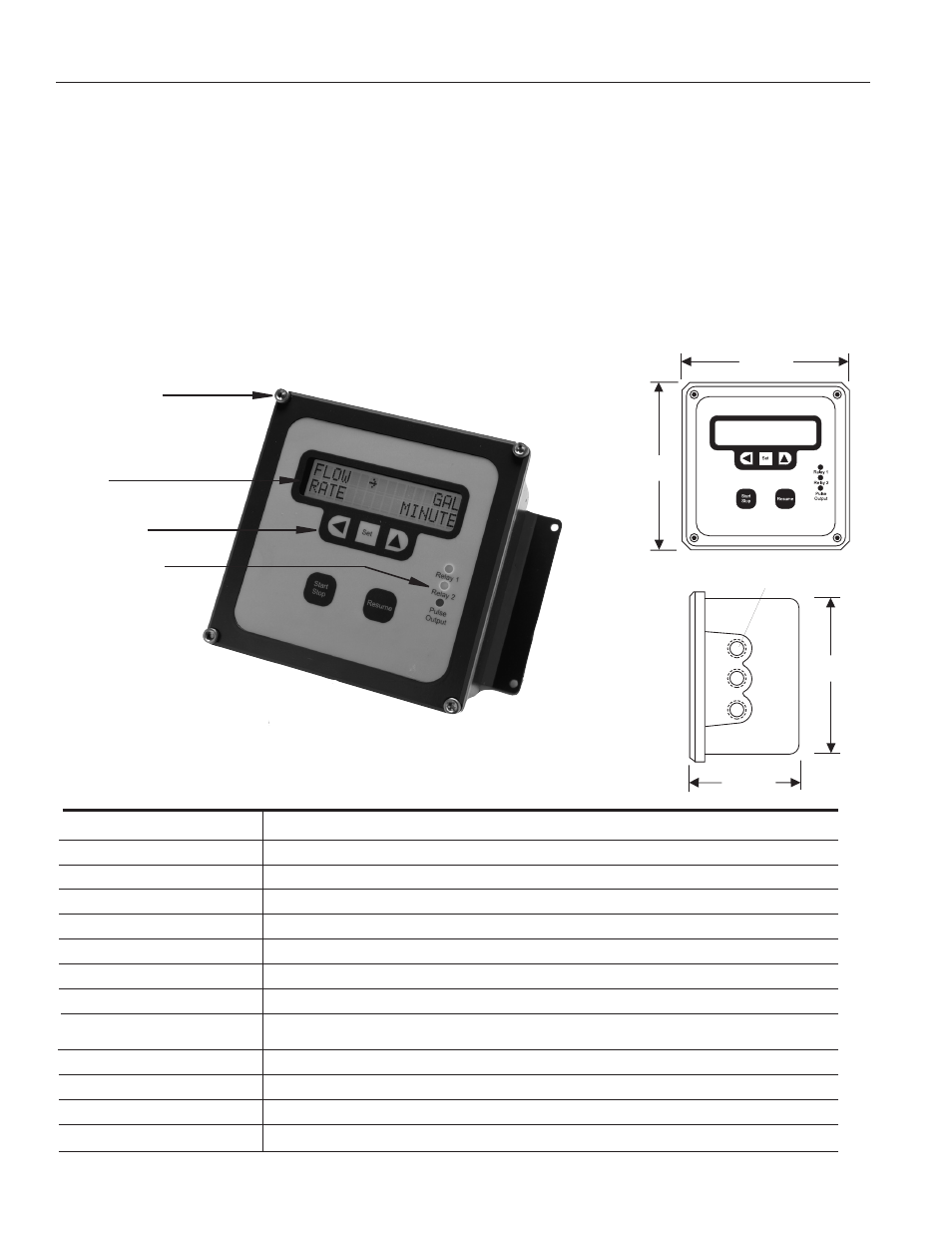

FEATURES
Setting Keys
Cover Screws*
Indicator Lights
The FT500-Series is a batching flow processor with additional
output controls. It is designed for use with Seametrics flow
meters and flow sensors, as well as other manufacturer’s
products which have frequency output proportional to flow. In
addition to batch functions, the FT500-Series indicates flow rate,
and other data in large 3/8” (9.66 mm) digits on an easily-read,
backlit display. Units of measure are user selectable, and range
from milliliters per second to millions of gallons per day. The unit
can be 110 Vac powered with a standard 3-wire cord (included),
220 Vac powered (optional), or DC powered through an internal
terminal strip (battery not included).
An analog output of 4-20 mA is available both in active and
passive loop configuration, and in 0-5 Vdc or 0-10 Vdc outputs,
and can be used in applications such as flow rate logging. Two
programmable pulse scaled outputs are also standard, and can
be used, for example, to provide proportional chemical feed with
a pulse-responsive metering pump.
The housing is supplied with two brackets for wall-mount
applications, or the top/bottom housings can be easily
separated and reassembled for panel-mount.
*Can be ordered cross-drilled for seal wire
Display
115 Vac, 50/60 Hz @ 125 mA, (220 Vac optional), 12 Vdc @ 750 mA
32˚ - 130˚ F (0˚ - 55˚ C)
Precision cast aluminum, NEMA 4X, panel or wall mount configuration
Two form C (SPDT) relays, 115 Vac 6A max
100 mA at 60 Vac/Vdc, opto-isolated, open-collector
Non-volatile EEPROM with auto-backup
12 Vdc, 10 mA
Totalizer = 8 digit Rate = 5 digit, backlit
Volume = Gallons, cubic feet, cubic meters, millions of gallons, milliliters, fluid ounces, pounds, liters
Time = Seconds, minutes, hours, days
4-20 mA passive opto-isolated; 4-20 mA active; 0-5 Vdc, or 0-10 Vdc
1-1000 Hz, ESD protected, interfaces to current sinking sensor output
NEMA 4X
Non-volatile EEPROM, auto-backup
Power
Temperature
Enclosure
Batch Outputs
Max Pulse Output
Memory Type
Sensor Power
Display
Units
Analog Output
Sensor Input
Environmental
Setup Memory
SPECIFICATIONS*
*Specifications subject to change • Please consult our website for current data (www.seametrics.com).
4.65"
6.42"
6.42"
1/2" NPT
5.67"
DIMENSIONS
4.65"
6.42"
6.42"
1/2" NPT
5.67"
