replacement unless it is electrically damaged. If replace-
ment is necessary, unthread the sensor by hand. Thread the
replacement sensor in and tighten by hand.
LT-65200067-082014
8/20/2014
Seametrics Incorporated • 19026 72nd Avenue South • Kent, Washington 98032 • USA
(P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • www.seametrics.com

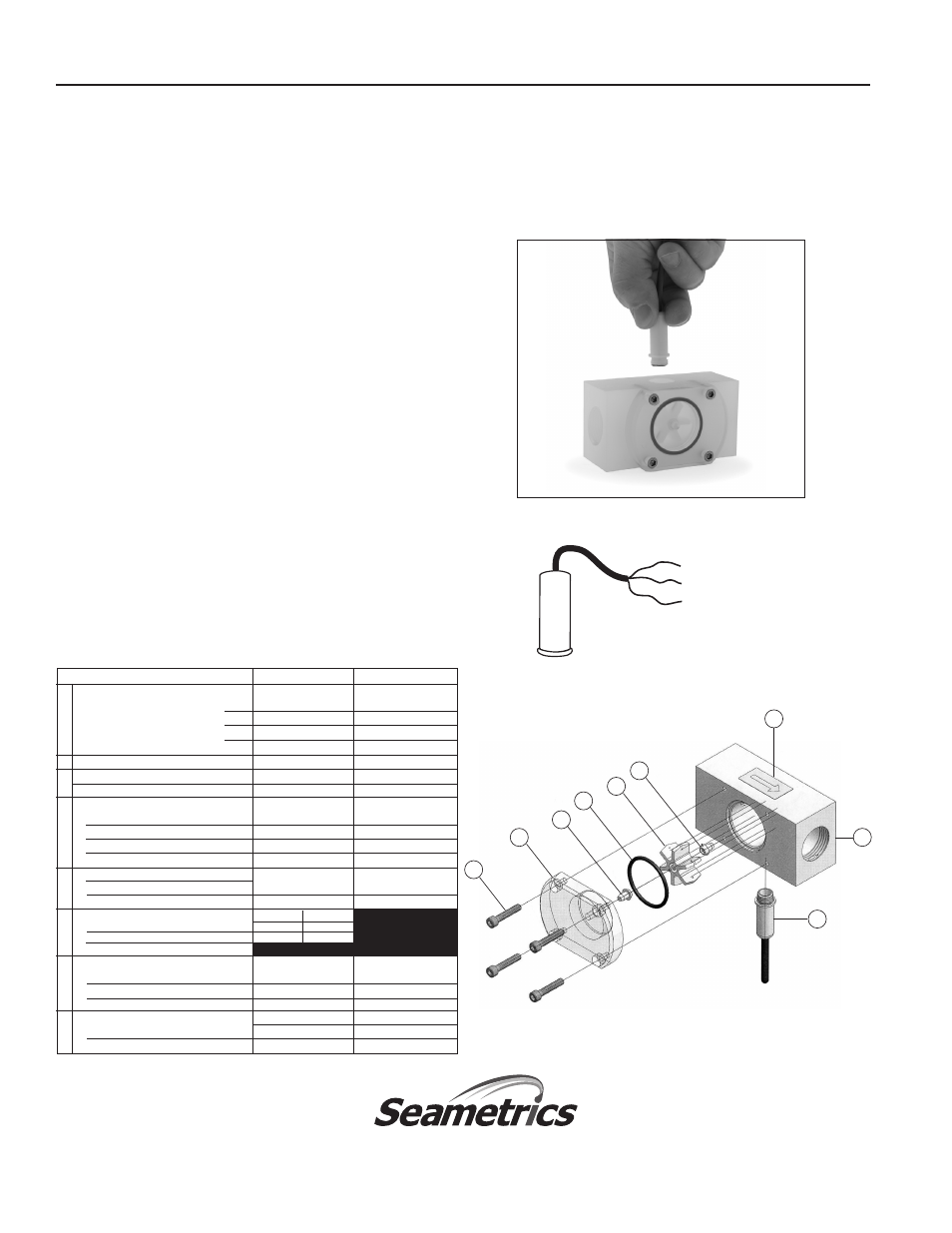

SPX/SPT PARTS LISTING
REPAIR, MAINTENANCE
REPAIR
Rotor Replacement. There is only one moving part to this
meter. The bearings are made of ruby, which rarely wears
out or needs replacement unless they have been physically
damaged by severe shock. The shaft is integrally molded into
the rotor, and shaft and rotor are replaced as one part. (You
may wish to replace the bearings, using the bearing removal
tool, while the meter is disassembled for rotor replacement).
To replace the rotor, disconnect the meter and remove the
four screws that hold the cover in place. Lift the cover and
remove the rotor (see parts diagram below).
When putting in the new rotor, be sure that the ends of the
shaft are in both bearings before tightening the cover. The rotor
can be easily dropped into the bottom bearing. Starting the
shaft into the upper bearing requires a bit of care. It is easier
if the rotor is spinning, which can be done by lightly blowing
into a port. When the upper bearing plate drops into place,
hold it down and check for free spinning (by blowing lightly)
before replacing the cover. Check that the O-ring is in its seat
on the bearing plate before replacing the cover. Replace the
cover, insert the four cap screws and tighten.
Sensor Replacement. The sensor ordinarily does not need
(BLACK) Power (-)
(WHITE) Signal
(RED) Power (+) 6-24 Vdc
SES SENSOR CONNECTION SPX SPT
1 Body
-038 100221 100269
-050 100222 100268
-075 100223 100267
-100 100224 100266
2 Flow Direction Label 100256 100256
3 Bearing Assembly (2 required) 100230 100230
Bearing Removal Tool (not shown) 100372 100372
4 Rotor with Shaft
Kynar/ceramic (2 magnet) 100033 100033
Kynar/carbide (2 magnet) 100034 100034
Kynar/ceramic (6 magnet, high res) 100036 100036
Kynar/cabide (6 magnet, high res) 100035 100035
5 O-Ring
EPDM 100264
Teflon-coated Viton® 100973
6 Cover Before 5/05 After 5/05 Before 5/05 After 5/05
Polypro *See Note 100849
Acrylic *See Note 100848
TFE Teflon 26174 31005
7 Cover Screws (4 required)
Hexscrew 100310
Screw (use with hexnut 07705) 100022
Hexnut (use with screw 07685) 100025
8 Sensor
Standard 100419 100419
Micropower 100508 100508
Reconnect the sensor according to the diagram below.
2
1
8
3
4
5
3
6
7
Page 4
Not availabile
Not Available
*Note: Contact factory for price and availablity
