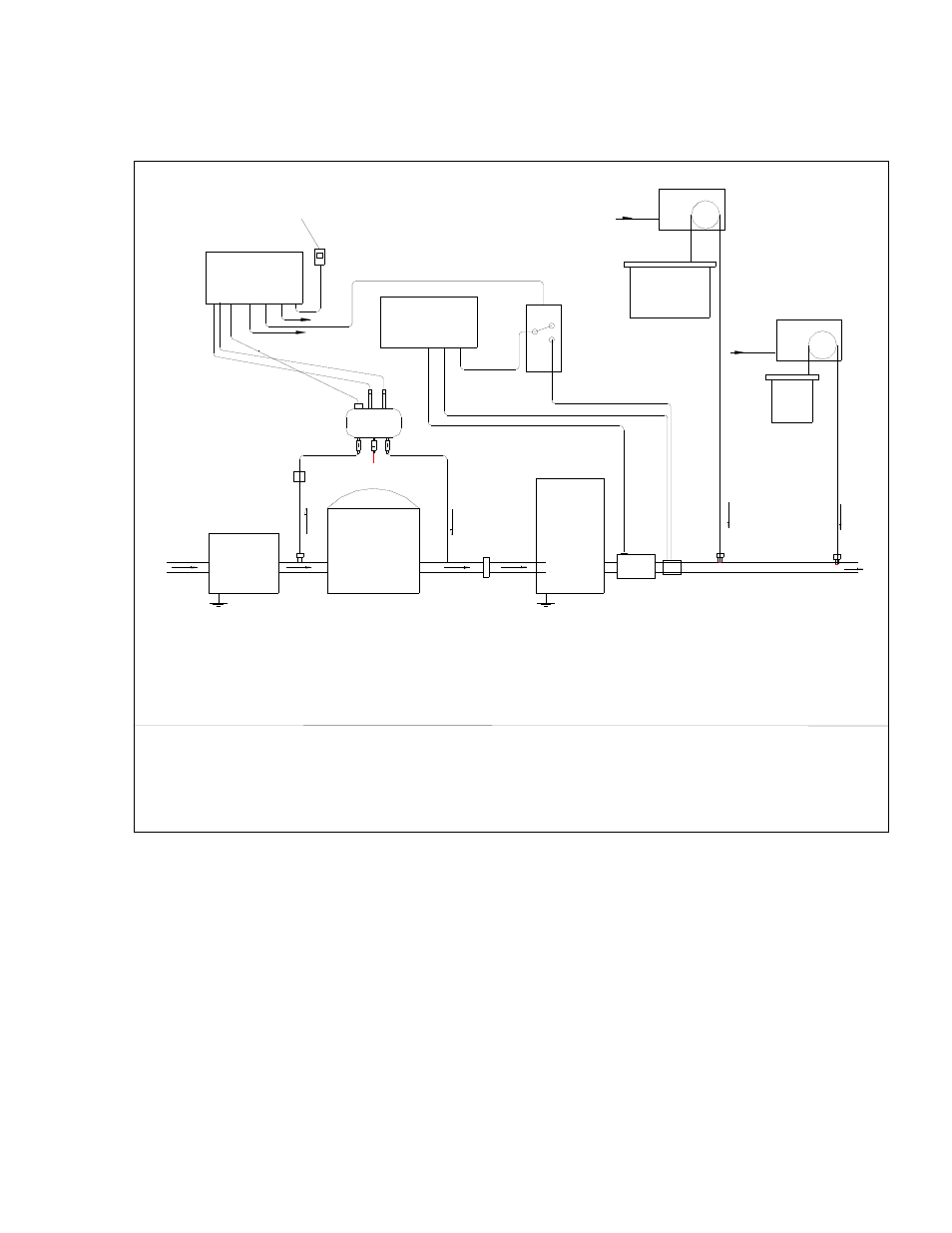

7.4 Typical System Installation
PUMP
CHLORINE
NaOCl
** SAFETY- FLOWSWITCH TO ENSURE
CIRCULATION TO CONTROL PROBES
AND INDICATOR THAT POOL
CIRCULATION IS OCCURRING.
MANIFOLD
CONTROLLER
FILTER
SYSTEM USING ELECTROLYTIC CHLORINE GENERATOR
WITH SODIUM HYPOCHLORITE BACK-UP FEED
(REFER TO SPECIFIC INSTRUCTIONS FROM CHLORINE GENERATOR SUPPLIER)
POOL
PUMP
*SAFETY- FLOWSWITCH FOR
PROTECTION OF HEATER AND
TO ENSURE DILUTION OF
CHEMICAL INTO POOL.
WATER
FROM
POOL
***FILTER
ELECTRICAL OUTLET
CONTROLLED BY
CIRCULATION SYSTEM
*** FILTER TO HELP KEEP
MANIFOLD AND PROBES
CLEAR OF DEBRIS.
*FLOWSWITCH
EARTH
GROUND
WATER
TO
POOL
HEATER
ACID
HCl
CHLORINE
GENERATOR
CONTROLS
CELL
SPDT
120 VAC COIL
RELAY
COM
NO
NC
PUMP
** FLOWSWITCH
PUMP
PUMP
Rola-Chem Digital Controller PN 554331 6/01/2012 Page: 18 of 20
