10
The lens is not supplied with this camera. Purchase a lens suitable for your environment.
This camera accepts the auto iris lens and both C-and CS-mount lens.
Pin 3
Pin 1
Pin 4
Pin 2
Rib Connector
Cover
Iris Control
Cable
Connector
Automatic
Iris Lens
Heat
Shrinkable
Tubes
2. Remove the protective cap, and attach the lens to the camera by turning clockwise.
LENS
For using main functions it is recommended to use Auto Iris Lens with DC type.
If the lens is marked with fingerprints other marks, the image quality might be poor.
It is recommended to use a high quality lens to improve the image quality under
low illumination.

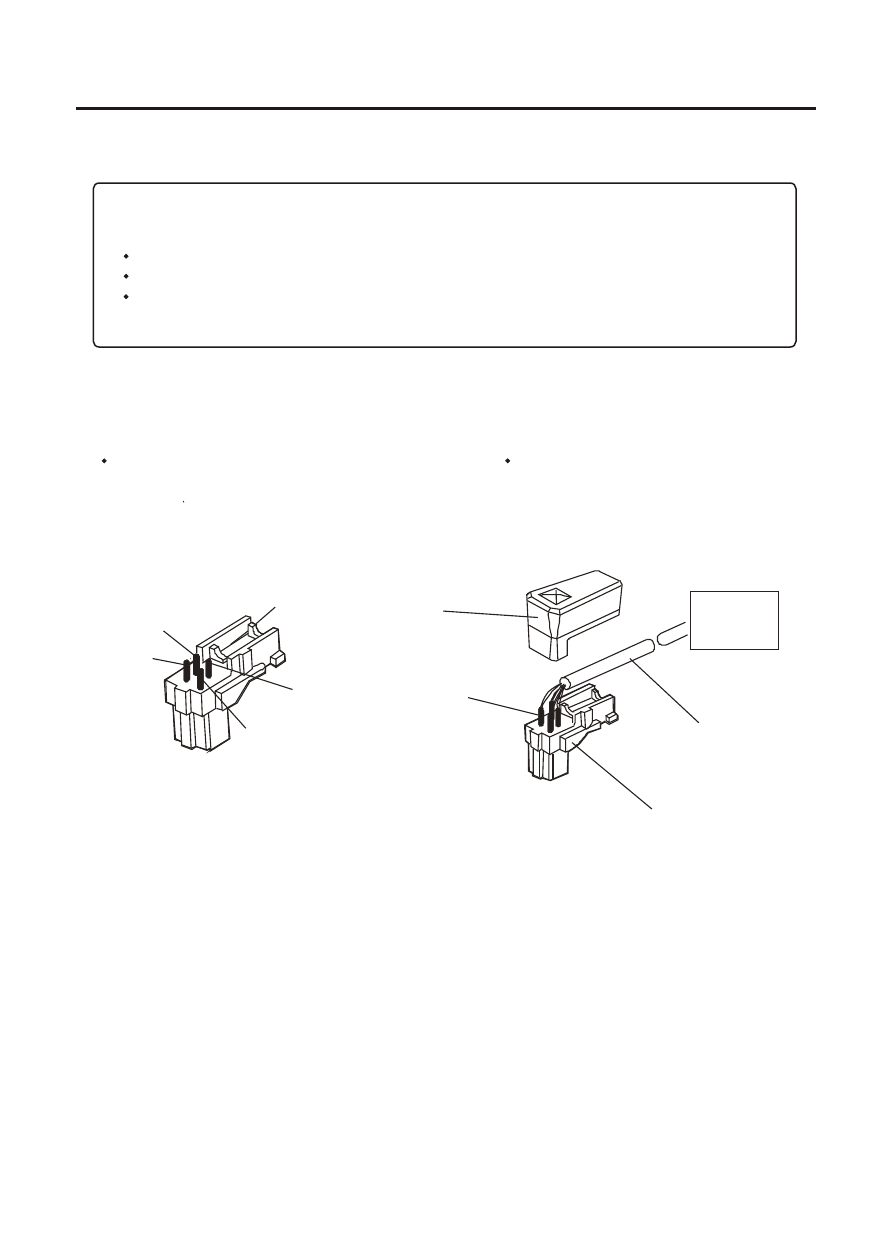

1. Remove the cover from the iris lens plug supplied, and solder the lens cable to the plug as
shown below.
Video type :
Pin 1 --- Red (Power source)
Pin 2 --- N.C
Pin 3 --- White (Video signal)
Pin 4 --- Black (GND)
DC type :
Pin 1 --- Damping-
Pin 2 --- Damping+
Pin 3 --- Drive+
Pin 4 --- Drive-
* Notes *
