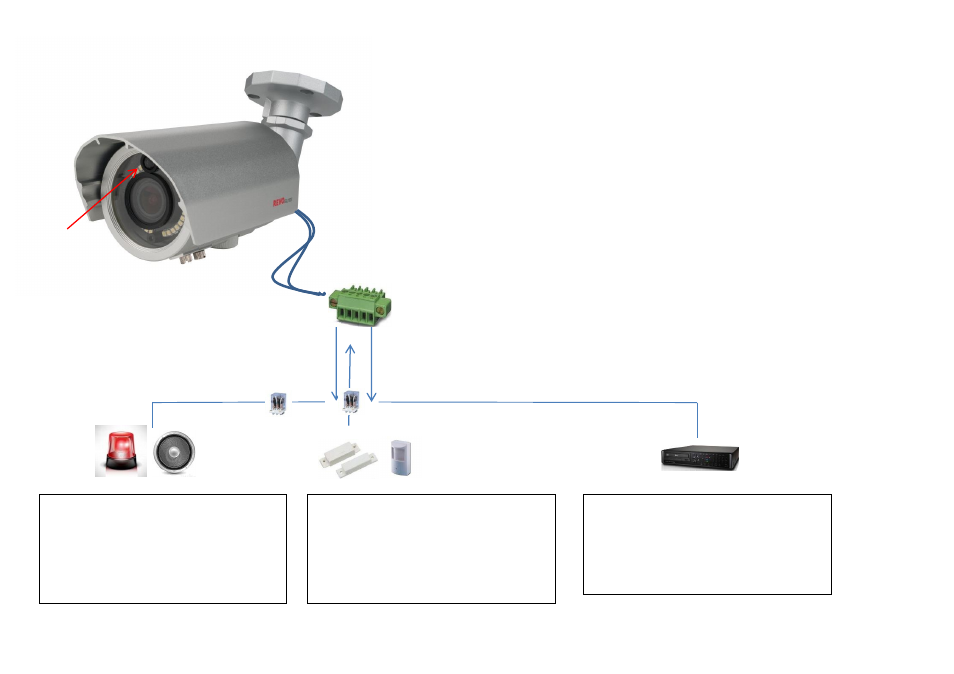

1. Trigger out.
2. Ext_Sensor
3. Sensor_5V
4. Siren (Alarm out)
5. GND
1 2 3 4 5
PIR SENSOR LIGHTING CAMERA
with white LED
Alarm out (Lamp, Siren)
• Built-in PIR sensor turns the white
LEDs on and trigger external devices
(Siren, Lamp) simultaneously when
motion is detected. Only during night
time.
Relay
It features
• The built-in PIR sensor turns the white LEDs
on when motion is detected at night
•
Image stays in color mode even at night
• Sudden intense lighting to deter intruders
• Enforced security functions(See below diagram)
• Trigger out feature to save space on the HDD
• Energy saving
PIR sensor
Sensor input (Magnetic, PIR)
• Remote sensor activates the white
LEDs on the camera and other devices
simultaneously when an event occurs.
Only during night time
Trigger alarm out (DVR)
• PIR sensor detects motion and triggers
event recording on the DVR (day &
night time)
