Precision Control Systems PanelIR 4555 - Manual (Page 11)

Model 4555 PanelIR TM User Manual Product Description
Research, Inc. 8
SPECIFICATIONS – PanelIR 4555

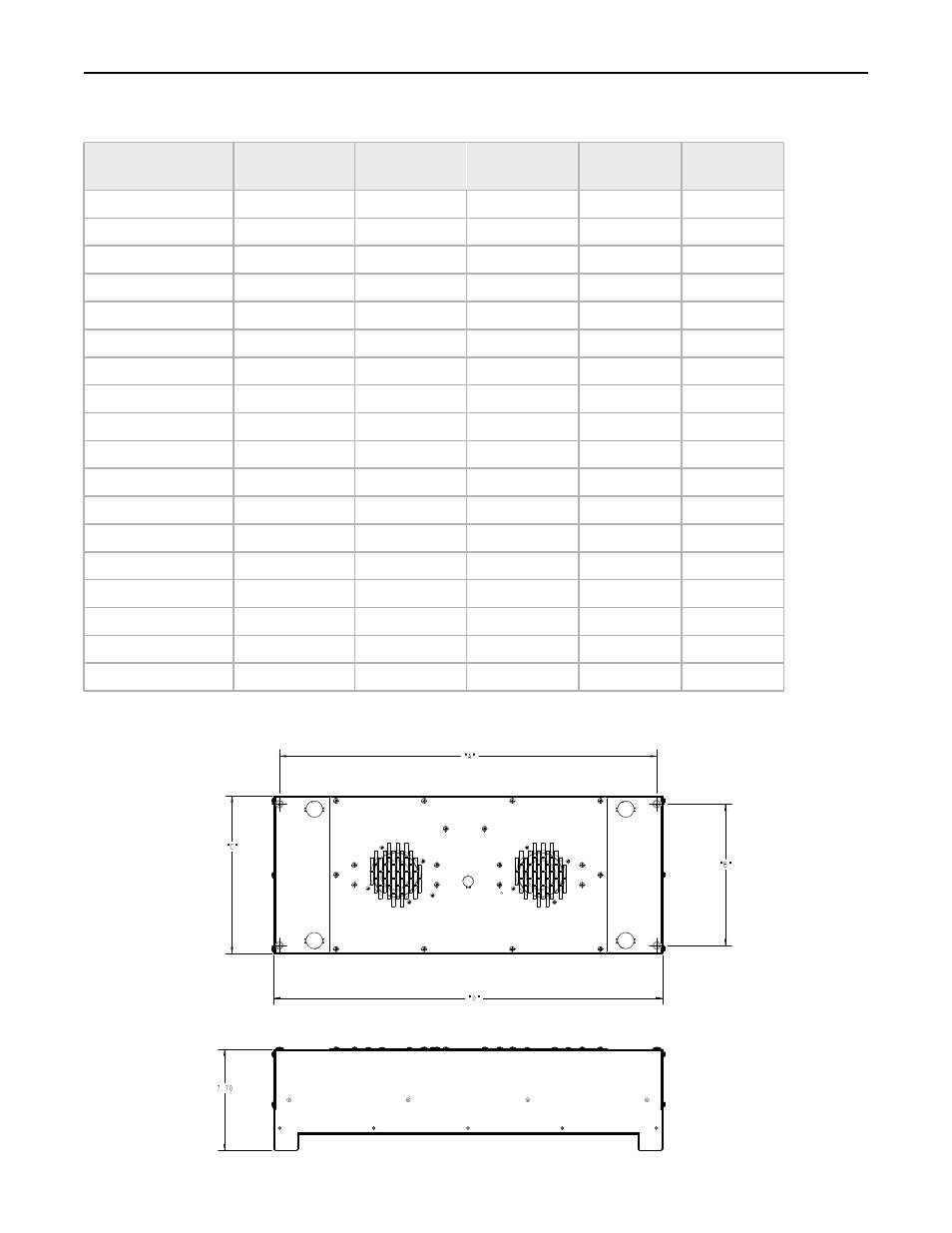

Dimensions – PanelIR 4555
42.41 12.00 10.75 41.58 38 (965) Model 4555-38-12
42.41 9.00 7.75 41.58 38 (965) Model 4555-38-09
42.41 6.00 5.38 41.58 38 (965) Model 4555-38-06
29.41 12.00 10.75 28.58 25 (636) Model 4555-25-12
29.41 9.00 7.75 28.58 25 (636) Model 4555-25-09
29.41 6.00 5.38 28.58 25 (636) Model 4555- 25-06
20.41 12.00 10.75 19.58 16 (406) Model 4555-16-12
20.41 9.00 7.75 19.58 16 (406) Model 4555-16-09
20.41 6.00 5.38 19.58 16 (406) Model 4555-16-06
14.41 12.00 10.75 13.58 10 (254) Model 4555-10-12
14.41 9.00 7.75 13.58 10 (254) Model 4555-10-09
14.41 6.00 5.38 13.58 10 (254) Model 4555-10-06
9.41 12.00 10.75 8.58 5 (127) Model 4555-05-12
9.41 6.00 5.38 8.58 5 (127) Model 4555-05-06
Dimension
D
Dimension
C
Dimension
B
Dimension
A
Lighted
Length(in/mm)
MODEL
