Precision Control Systems LineIR 5194 - Manual (Page 9)

106687-001 Rev.2 3-2
Model Number
Dimension Heater
Weight,
Pounds (kg)
A
Inches (mm)
B
Inches (mm)
C
Inches (mm)
5194-02-1000 6.1 (154.9) 3.35 (85) 2.6 (66.0) 2.7 (1.2)
5194-04-2000 7.5 (190.5) 4.75 (120.6) 4 (101.6) 3.3 (1.4)
5194-05-1000 9.5 (241) 6.75 (171.4) 6 (152.4) 4.2 (1.9)
5194-10-2000 14.5 (368) 11.75 (298) 11 (279) 6.3 (2.8)
5194-16-3000 20.1 (510) 17.35 (440) 16.6 (421) 8.7 (3.9)
5194-25-3550 29.5 (749) 26.75 (679) 26 (660) 12.7 (5.7)
5194-38-3800 42.5 (1079) 39.75 (1009) 39 (990) 18.3 (8.3)

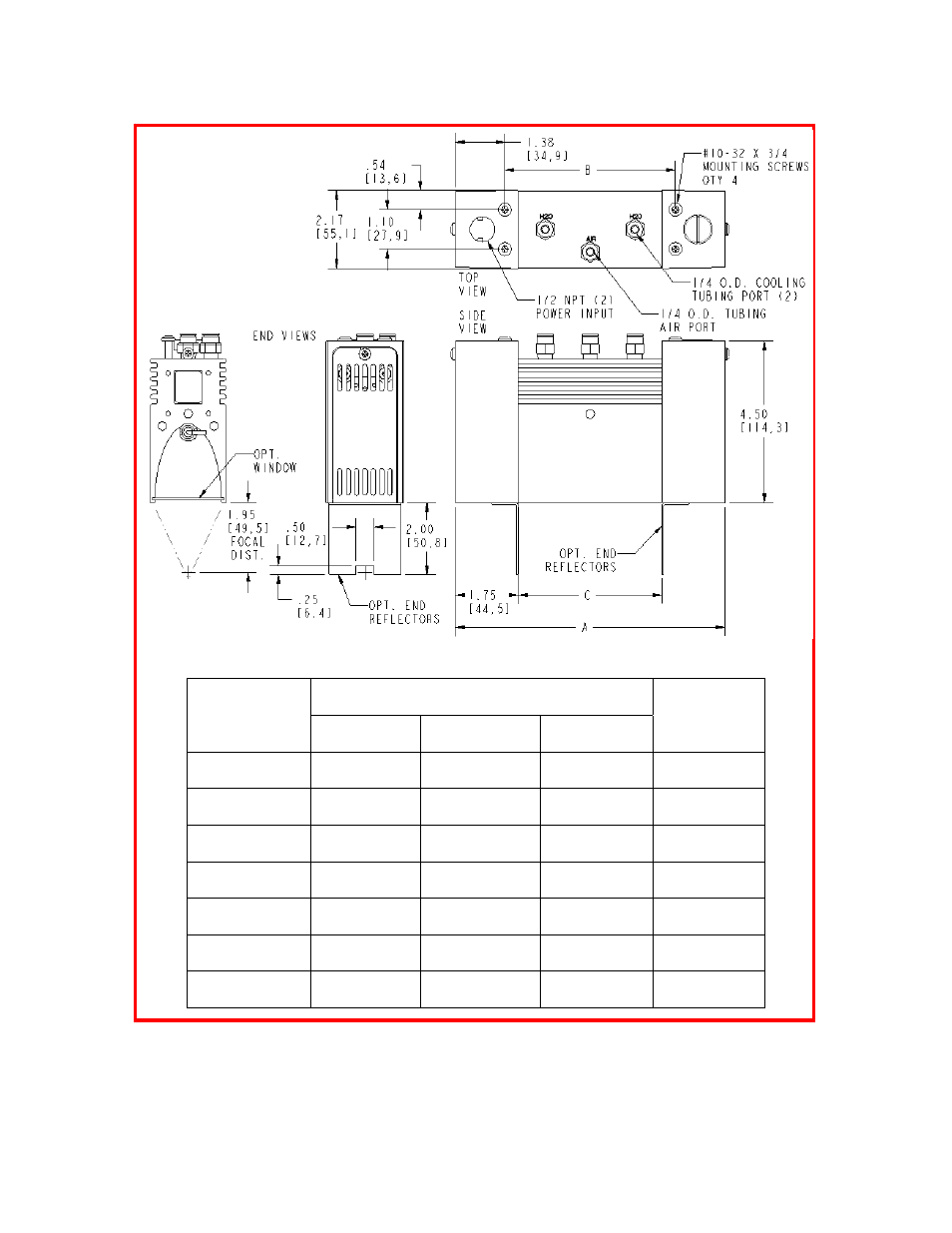

Figure 3-1. Model 5194 Dimensions
