Section 7 – SPARE & REPLACEMENT PARTS



















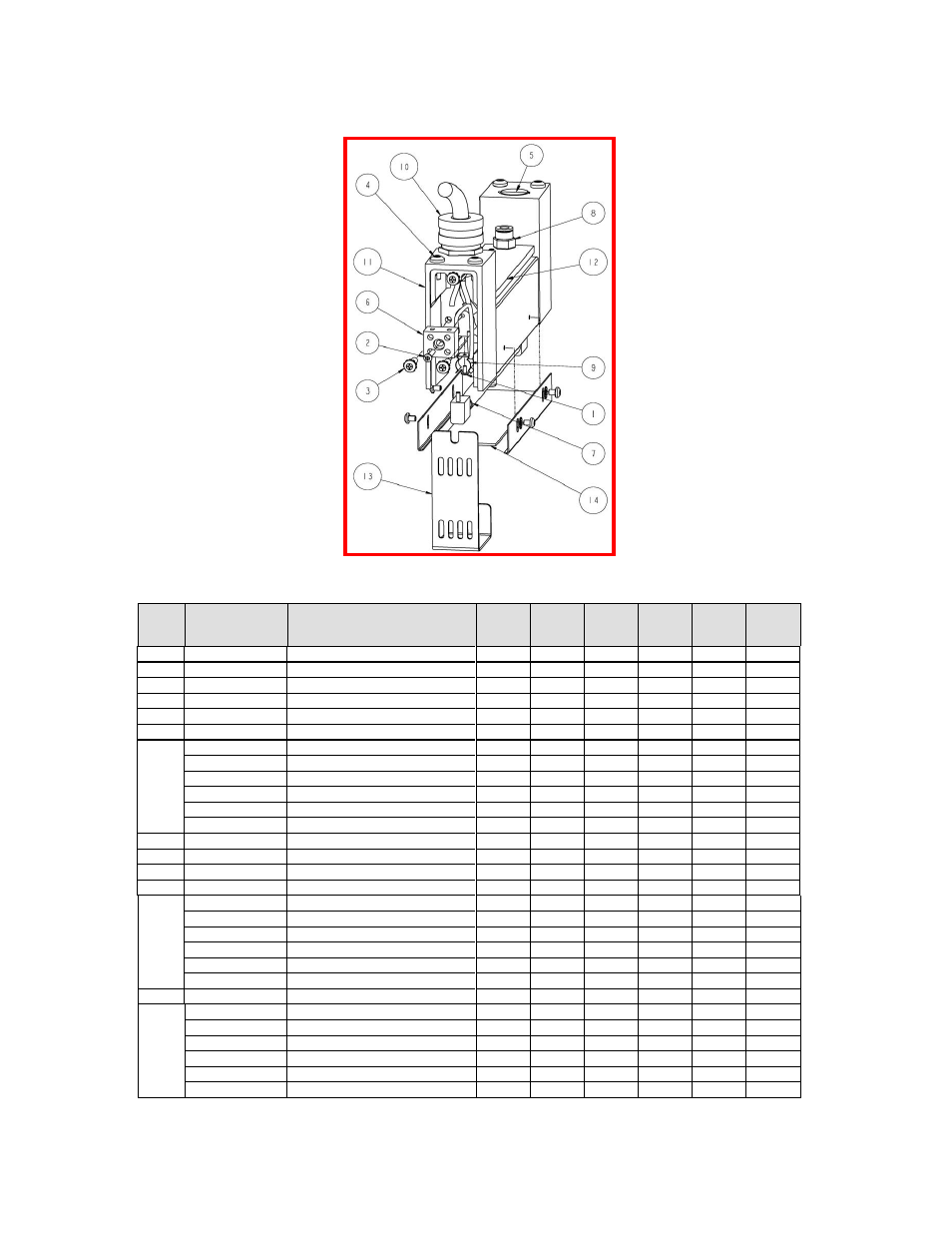

Figures 7-1. Model 5306 Parts Identification.

ITEM

PART NO.

DESCRIPTION

5306-02 5306-05 5306-10 5306-16 5306-25 5306-38

1

054979-001

Panhead Screw, 2-56X3/16

N/A

/used

2

2

2

2

2

2

054979-026

Panhead Screw, 4-40X3/4

1

2

2

2

2

2

3

054979-099

Panhead Screw, 8-32X5/8

6

6

6

6

6

6

4

054979-123

Panhead Screw, 10-32X.5

4

4

4

4

4

4

5

063042-001

Plug, 1/2NPT X 1/4LG

1

1

1

1

1

1

6

100571-001

Terminal Block, 10A

1

2

2

2

2

2

7

106587-001

Lamp-QIH120-1000W

1

103390-002

Lamp-QIH240-1000W

1

103390-004

Lamp-QIH240-2000W

1

103390-012

Lamp-QIH240-3000W

1

103390-008

Lamp-QIH600-5000W

1

103390-010

Lamp-QIH480-3800W

1

8

103830-001

Fittting-1/8NPT x 1/4"

2

2

2

2

2

2

9

103831-001

Spring Clip

N/A

2

2

2

2

2

10

106684-001

Power Cable Assembly, 8ft

1

1

1

1

1

1

11

106833-002

End Casting

2

2

2

2

2

2

12

106834-001

Reflector-5306-02

1

106834-002

Reflector-5306-05

1

106834-003

Reflector-5306-10

1

106834-004

Reflector-5306-16

1

106834-005

Reflector-5306-25

1

106834-006

Reflector-5306-38

1

13

106835-001

End Cover

2

2

2

2

2

2

14

087851-011

Option-Quartz Window Kit,5306-02

1

087851-001

Option-Quartz Window Kit,5306-05

1

087851-003

Option-Quartz Window Kit,5306-10

1

087851-030

Option-Quartz Window Kit,5306-16

1

087851-007

Option-Quartz Window Kit,5306-25

1

087851-009

Option-Quartz Window Kit,5306-38

1
