106837-001 Rev. 1

6-2

3. If installed in the heater, remove the quartz window from the heater by removing

the screws on the window brackets, and carefully set the window aside (see
Figure 6-2). Take this opportunity to clean the window using non-abrasive
cleaning solvent and clean, soft cotton cloth (see Section 6-2).



4. Loosen (do not remove) the setscrews in the ceramic terminal block on each end

of the heater (see Figure 6-3).

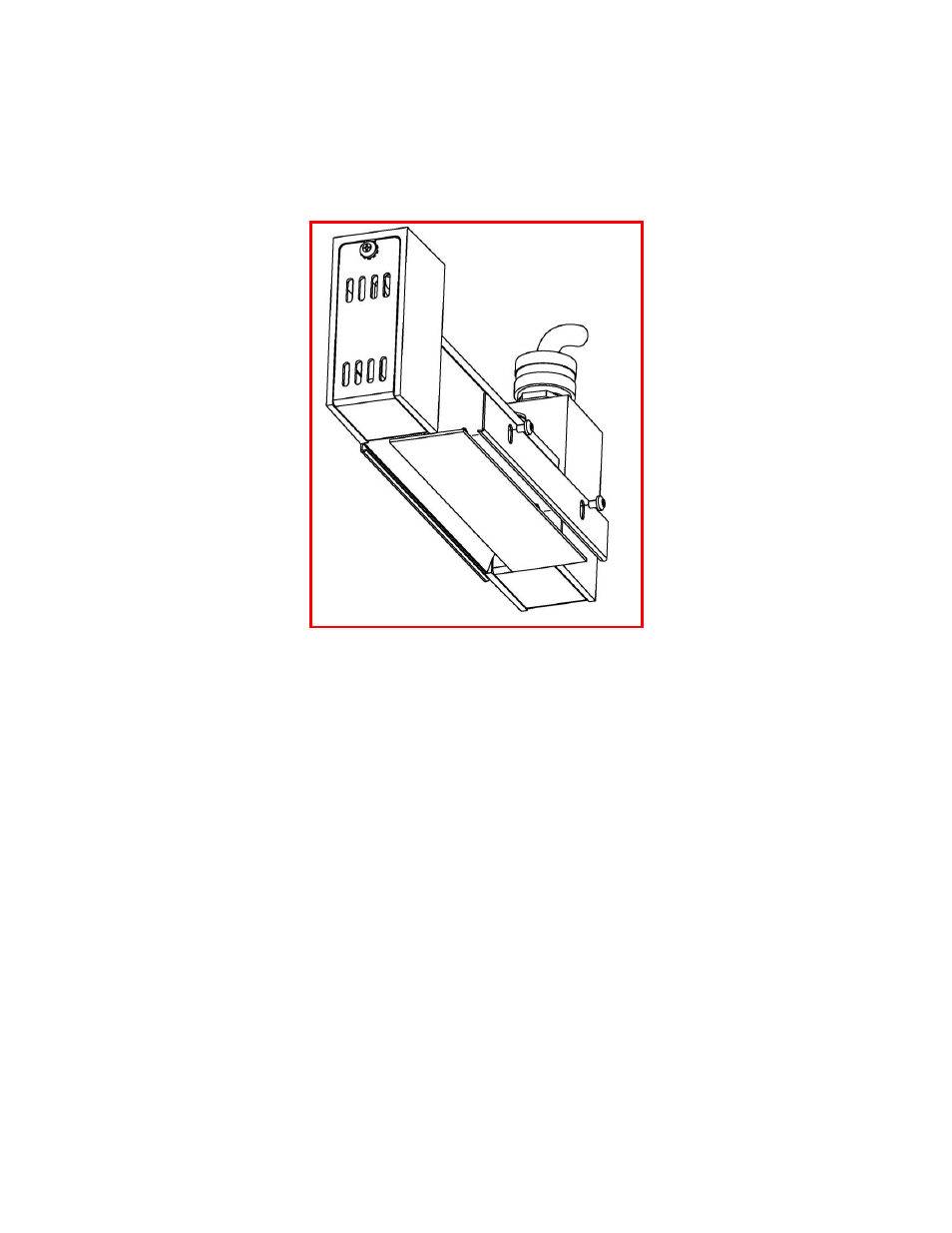

Figure 6-2. Model 5306 Quartz Window Removal.
