Page 9

Press LAT key to advance to the desired # from
10° to 60° north or 10° to 60° south. Press ENTER.
(Unit can not be used for latitudes greater than 60°).

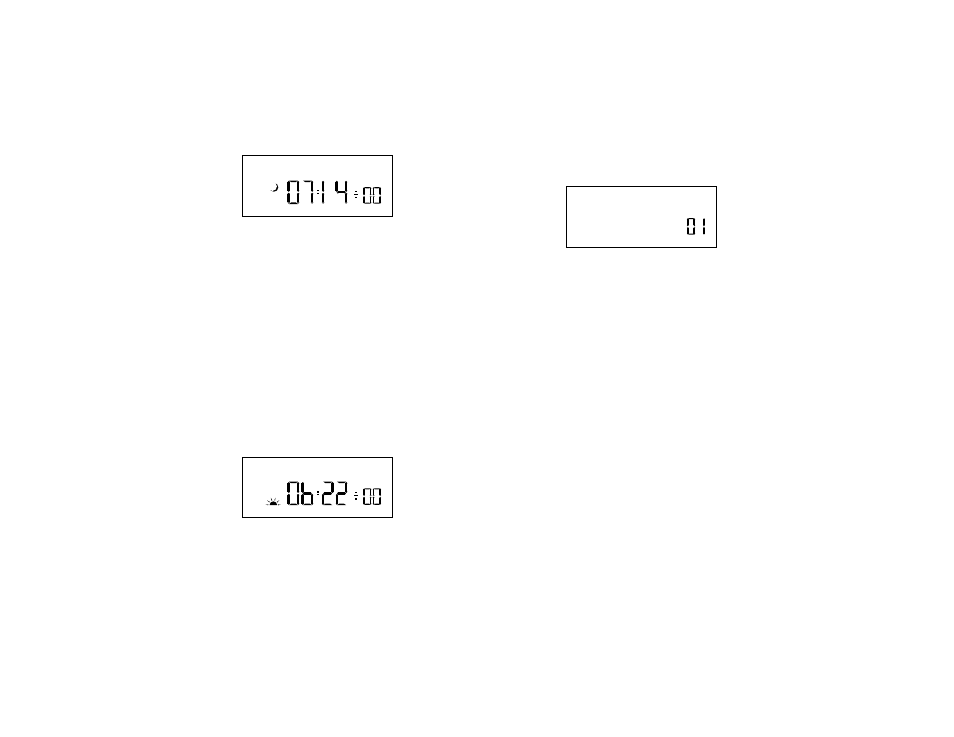

Now display shows

6.1 SELECTING ASTRO DAYS

NOTE: Entering your latitude does not assign the
astronomic function. You must enter DAYS while in the
astro mode in order to enable this function.

Select the day(s) in which you want the indicated
channel to turn ON at sunset. This is done in the
same way as section 5.2 “a.” and 5.2 “b.” using
DAY key and SELCT key.
If you want the load to come on after or before
sunset, you use the OFFSET key. A

sign before

the last 2 digits means the load comes ON that
many minutes after sunset. A

–

sign means the

load comes ON that many minutes before sunset.

Once desired DAYS and OFFSET is set press ENTER.

Now display shows SUNRISE time along with all
days and seasons displayed.

ALL DAYS TURN OFF AT SUNRISE whether or

not those days were astro selected.

In this mode you can only set OFFSET for sunrise.
If you want the load to turn OFF before or after
sunrise, you use the OFFSET key. A

sign

before the last 2 digits means the load turns OFF
that many minutes after sunrise. A

–

sign means the

load turns OFF that many minutes before sunrise.

CH 1
MO

CH
MO

OFF

1 2 3 4

SEASON

6.2 ASTRONOMIC ON, TIME OFF AND/OR

TIME ON, ASTRONOMIC OFF

Set astronomic ON/OFF per section 6.0 and 6.1

To set a time OFF during the night and/or a time
ON before sunrise, proceed as follows:

Press MODE key until schedule 01 appears

Press ENTER key repeatedly until the next blank

schedule screen appears.
Set the hours, minutes, and days per sections 5.1 and
5.2. You can first set an OFF during the night and use the
next blank schedule screen to set an ON before dawn.

7.0 REVIEW, MODIFY AND DELETE

Use MODE key to advance to any of the following
MODES:
1. CLOCK MODE: Use HOUR, MIN, and DAY

keys to modify existing settings. Press ENTER.

2. DATE MODE: Use MONTH, DATE, and YEAR

keys to modify existing settings. Press ENTER.

3. DST

Daylight Saving is automatic. You do

not have to enter start and stop dates. Unit cal-
culates 1st Sunday of April and last Sunday of
October. You do not have to remember to
change every year. To eliminate, press
ON/OFF key to OFF. Press ENTER.

4. HOLIDAY MODE: Holiday dates can be

changed or deleted. Press MONTH and DATE
keys or DLETE key. Press ENTER.

5. SCHEDULE MODE: Schedule review, modify,

delete. You can modify the schedule entry using
HOUR, MIN, ON/OFF key and SELCT key. Press
ENTER after each modification.
To delete, simply press the DLETE key when
unwanted information is on display. This will
blank the entry. Press ENTER to confirm. Do
not leave the MODE without pressing ENTER.

SCH
