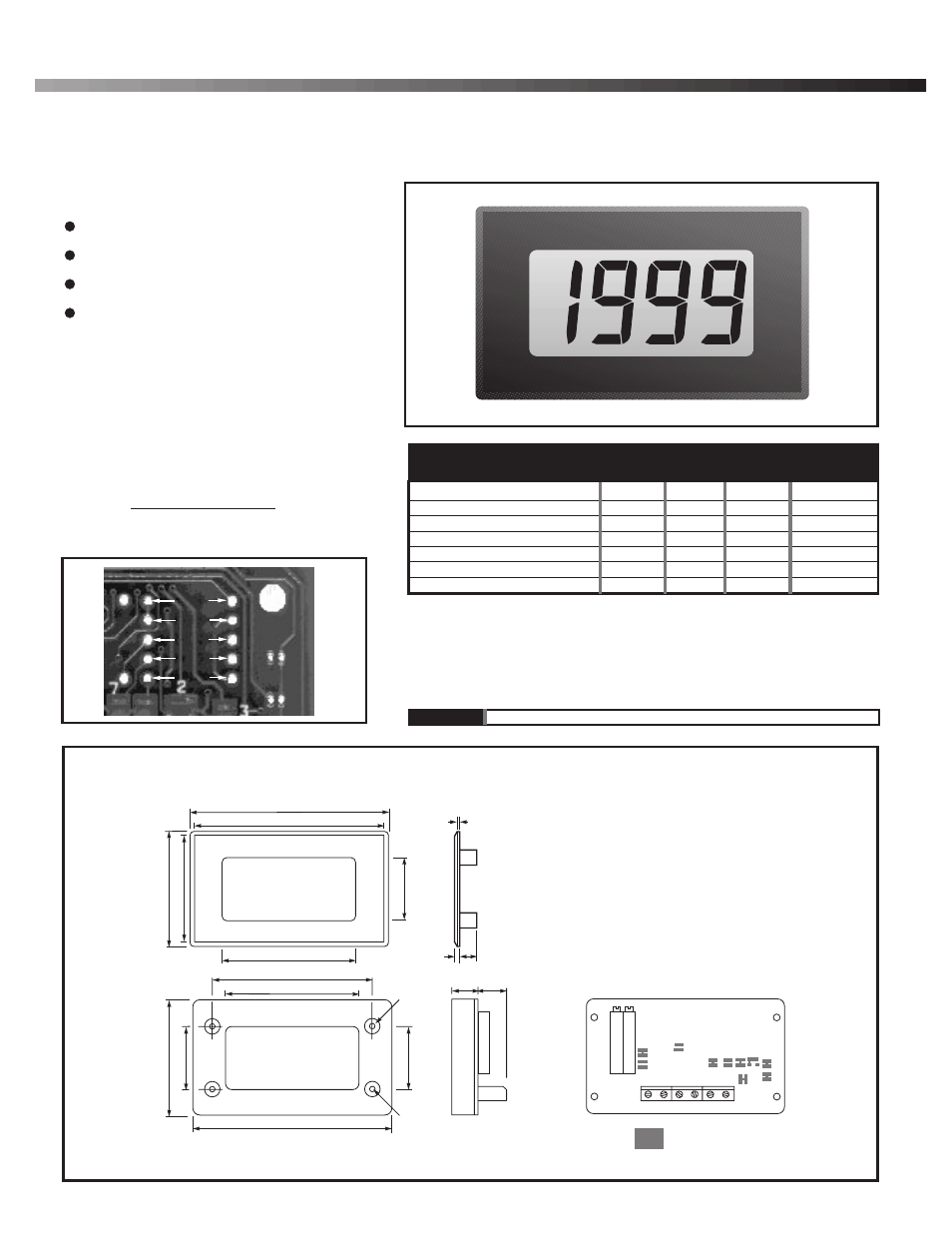

DIMENSIONS

All dimensions in mm (inches)

19mm (0.75“) Digit Height

Programmable Decimal Points

Low Volt Drop

Simple Screw Terminal Connections

DPM 942

4-20mA Loop Powered Indicator

CUSTOM SCALING

For alternative scaling to the standard 0 - 1000, cut Link 8
and short Link 7. Add two resistors R12 and R13 which
will set the basic scale of the meter. The highest practical
value for the R12 and R13 series combination is 12R. To
select your desired scaling, use the following formula:
R12 + R13 = Full Scale reading at 20mA

160

Re-calibrate as necessary.

A loop powered indicator giving an accurate, zero corrected indication of 4-20mA loop current. Calibration is by two 20-turn cermet
potentiometers which allow sensitive adjustment of the instrument. The meter is housed in a robust carrier, which can be bolted in
place or panel mounted using the low profile bezel and clips provided.

Specification

Min.

Typ.

Max.

Unit

Accuracy (overall error) *

0.05

0.1

%(±1 count)

Linearity

±1

count

Sample rate

3

samples/sec

Operating temperature range

0

50

°C

Temperature s

100

ppm/°C

Loop Volt Drop

3.9

4.3

4.8

V

*To ensure maximum accuracy, re-calibrate periodically.

tability

Stock Number

Standard Meter

DPM 942

CONNECTOR SOURCING GUIDE

METHOD

Screw Terminals - No Connector Required

ON BOARD
SOLDER LINKS

R25

R25

R11

R11

R12

R12

R13

R13

R14

R14

Top right hand corner of the pcb.

Top right hand corner of the pcb.

61.5 (2.42)

51.0 (2.01)

Ш5.7

(0.22)

24.5

(0.96)

24.0

(0.94)

39.0

(1.54)

Ш3.0

(0.12)

71.5 (2.81)

d

e

76.0 (2.99)

72.5 (2.85)

40.5

(1.59)

44.0

(1.73)

24.0

(0.94)

51.0 (2.01)

a

b c

Panel cut-out 72 x 40 (2.83 x 1.57)
Maximum panel thickness 3mm (0.12).

REAR
VIEW

DS

DP1

DP2

DP3

I-

I+

OFFSET SPAN

9

4

3

5

7 8 2

1

6

10

a.

1.0 (0.04)

b.

2.0 (0.08)

c.

6.5 (0.26)

d. 11.5 (0.45)
e. 13.0 (0.51)
