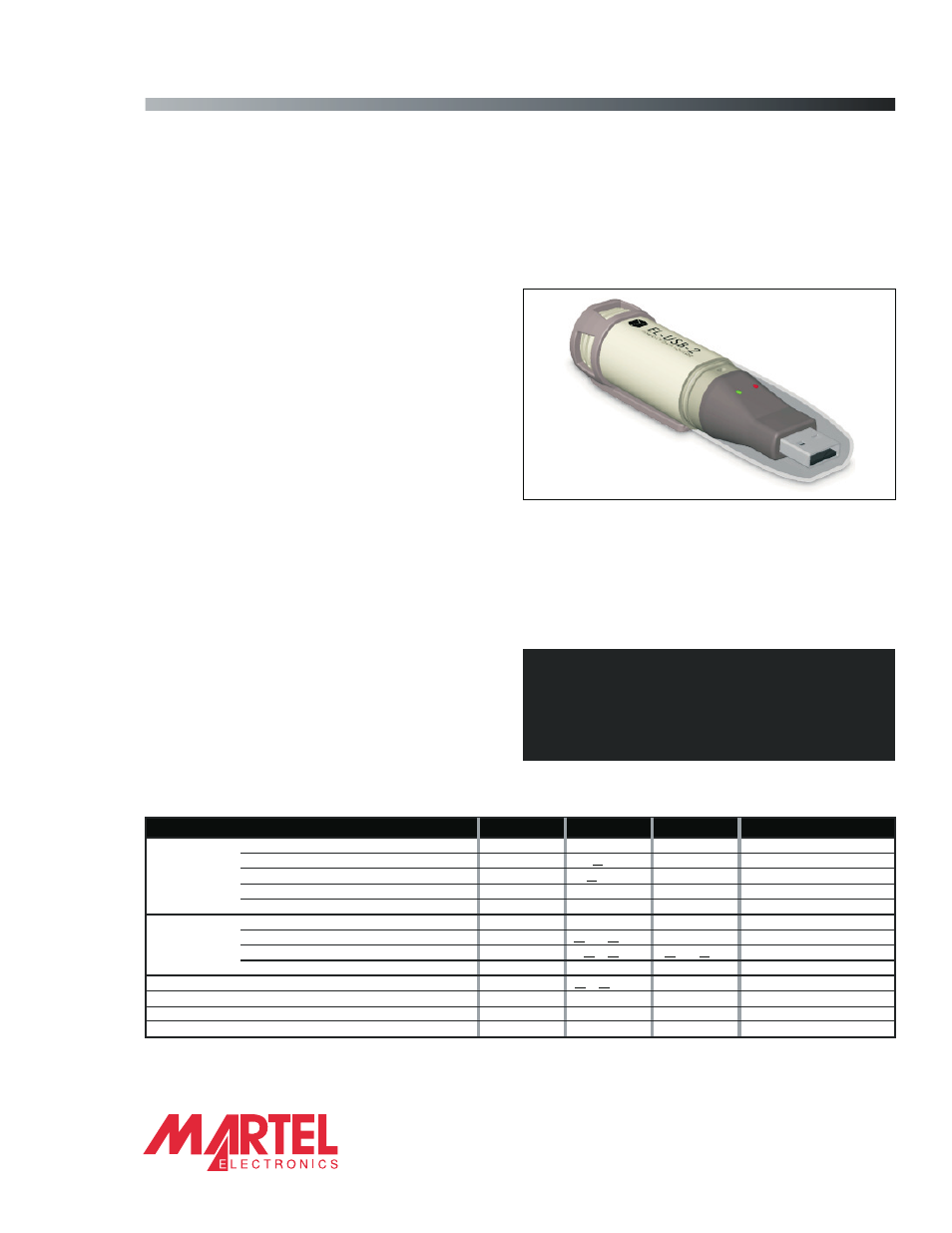

Martel Electronics EL-USB-2 - Manual

FEATURES
ORDERING INFORMATION
Stock Number
Standard Data Logger EL-USB-2
Replacement Battery BAT 3V6
(Data Logger, Software on CD
and Battery)
SPECIFICATIONS
• 0 to +100%RH Measurement Range
• -35 to +80°C (-31 to +176°F) Measurement Range
• Dew point indication via Windows Control Software
• USB Interface for Set-up and Data Download
• User-Programmable Alarm Thresholds for %RH & T
• Status Indication via Red and Green LEDs
• Supplied with Replaceable Internal Lithium Battery
and Windows Control Software
• Environmental Protection to IP67
WINDOWS CONTROL SOFTWARE
EL-USB-2
Humidity, Temperature and Dew Point USB Data Logger
This data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to
100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logging rate and start-
time, and download the stored data by plugging the module straight into a PC's USB port and running the purpose
designed software under Windows 98, 2000 or XP. Relative humidity, temperature and dew point (the temperature at
which water vapor present in the air begins to condense) data can then be graphed, printed and exported to other
applications. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for
a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust
to IP67 standard when the plastic cap and seal are fitted.
Easy to install and use, the control software runs under Windows 98, 2000 and XP (Home and Professional Editions). It
allows the user to set up and download any EL-USB-2. The latest version of the control software may be downloaded
from
. www.lascarelectronics.com
DATA LOGGER SET-UPS
Specification Min. Typ. Max. Unit
Relative Measurement range 0 100 %RH
Humidity Repeatability (short term) 0.2 %RH
Accuracy (overall error) (20-80%RH) 3.5** %RH
%RH/Yr
0.2 ( 0.4) °C (°F)
1 ( 2) 2.5 ( 5) °C (°F)
20 sec
Dew Point Accuracy (overall error) (25°C, 40-100%RH) 2 ( 4)*** °C (°F)
Logging rate every 10s every 12hr -
Operating temperature range -35 (-31) +80 (176) °C (°F)
1/2AA 3.6V Lithium Battery Life* 1 Year
+
+
+ +
+ + + +
+ +
Response time 5 sec
Long term stability 1
Temperature Measurement range -35 (-31) +80 (176) °C (°F)
Repeatability
Accuracy (overall error)
Response time
* Depending on sample rate, ambient temperature and use of alarm LEDs
** This specifies the overall error in the logged readings, for relative humidity measurements between 20 and 80%RH.
*** This specifies the overall error in the calculated dew point, for relative humidity measurements between 40 and 100%RH at 25°C.
See page 4 of this datasheet for accuracy graphs.
• Logger Name
• °C, °F
• Logging Rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
• High and Low Alarms for Humidity and Temperature
• Start Date and Start Time
°C / °F
%RH
