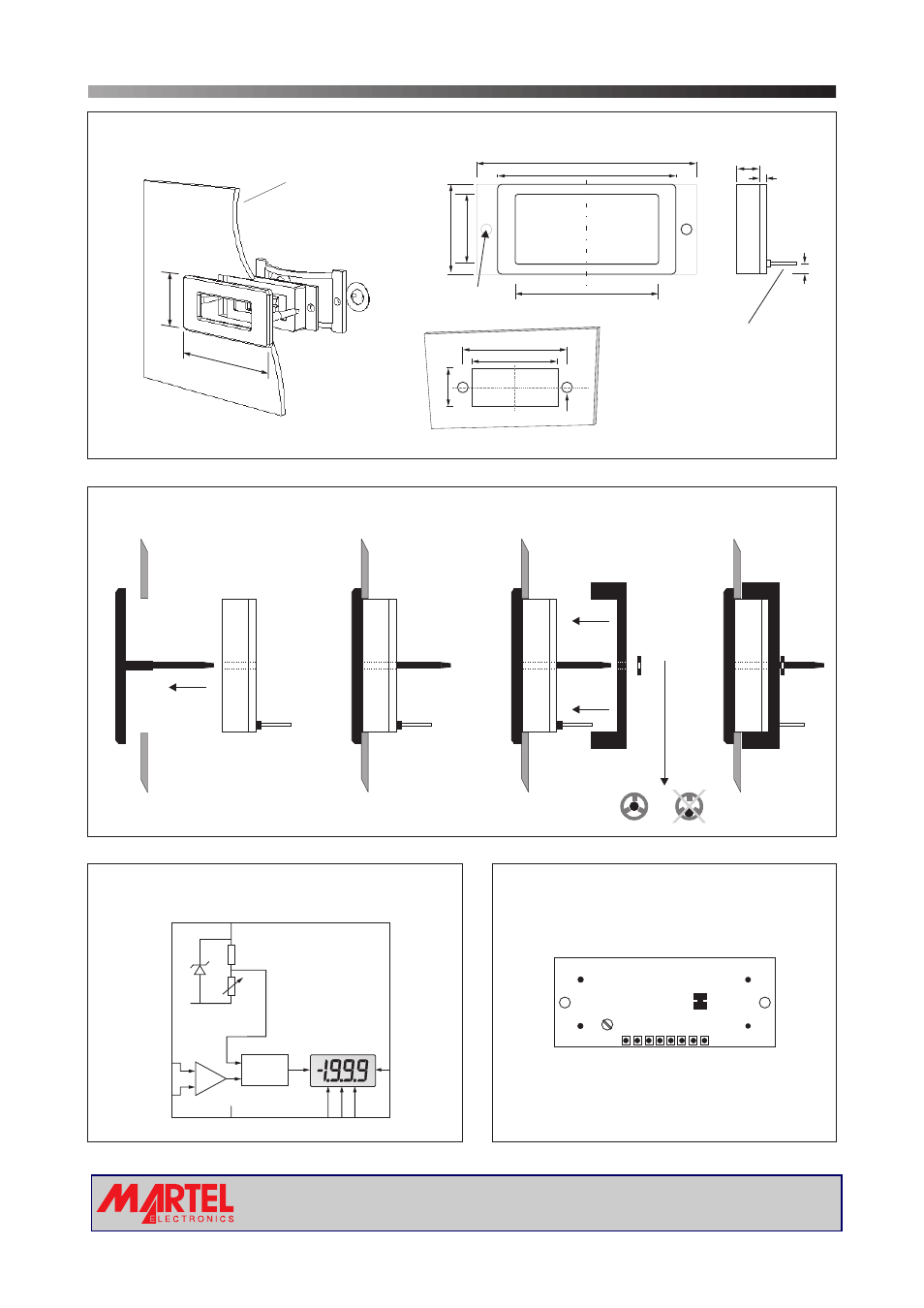

DIMENSIONS
All dimensions in mm (inches)
PANEL FITTING
PIN CONFIGURATION
(rear view)
FUNCTIONAL BLOCK DIAGRAM
Page 2 of 4 Page 2 of 4
Vref
A/D +
_
INHI
COM
INLO
XDP
DP3 2 1
V+
V-
CAL
Panel
Bezel
Meter
1
V 125
3½ Digit LCD Voltmeter Module
1 8
REAR VIEW
V+ V- INHI INL
O
XDP DP1 DP2 DP3
L1
CAL
Panel thickness: 1.0 - 3.0
(0.04 - 0.12)
50.0 (1.97)
24.4
(0.96)
2 4
Fixing Clip
Fastener
3
Pin Pitch 2.5 (0.1)
Pin positions are symmetrical
about the vertical centre line
40.7 (1.60)
dia 2.5 (0.1)
50.0 (1.97)
31.0 (1.22)
5.3 (0.20)
1.6 (0.06)
1.27 (0.05) 20.4
(0.80)
14.0
(0.55)
21.4
(0.84)
41.5 (1.63)
45.0 (1.77)
2.5(0.1) dia
