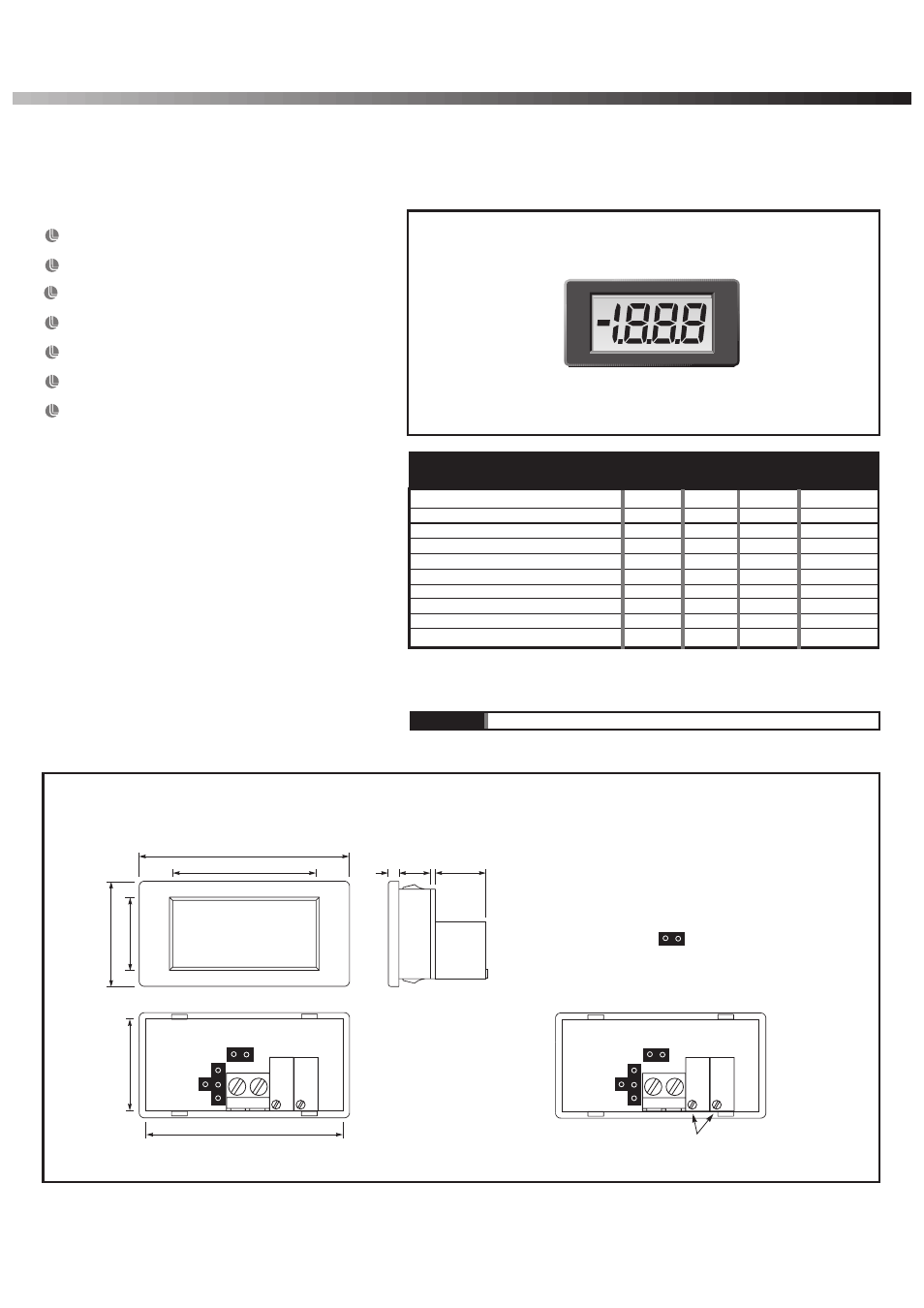

DIMENSIONS

All dimensions in mm (inches)

11mm (0.43“) Digit Height
Programmable Decimal Points
Low Volt Drop
Loop Powered
Simple Screw Terminal Connections
Wide Adjustment Range
Auto-polarity on Display

LED Backlighting

DPM 342

LED Backlit 4-20mA Loop Powered Indicator

A compact loop powered indicator giving an accurate, zero corrected indication of 4-20mA loop current. Calibration is by two multi-turn

potentiometers which allow sensitive adjustment of the instrument. The DPM 342 features an integral snap-in bezel, making installation

easy. The module’s LED backlighting ensures a clear display, even under low light conditions. No soldering is required. Connection to the

current loop is via two screw terminals. The correct decimal point is selected via a jumper link.

Specification

Min.

Typ.

Max.

Unit

Accuracy (overall error) *

0.05

0.1

%(±1 count)

Linearity

±1

count

Sample rate

3

samples/sec

Operating temperature range

0

50

°C

Temperature s

200

ppm/°C

Loop Volt Drop

5

5.6

6

V

Supply current

4

mA

Full scale reading (20mA)

0

1999

Count

Offset adjustment range

-950

+950

Count

*To ensure maximum accuracy, re-calibrate periodically.

tability

+ (span x 0.25)

Stock Number

Standard Meter

DPM 342

CONNECTOR SOURCING GUIDE

METHOD

Screw Terminals - No Connector Required

Panel cut-out

38.0 x 18.0 (1.50 x 0.71)

Panel thickness

1.0 to 2.5 (0.04 to 0.1)

ON BOARD JUMPER LINKS

40.0 (1.57)
27.3 (1.07)

12.7

(0.50)

20.0

(0.79)

17.5

(0.69)

37.5 (1.48)

a

b

c

d

a. 2.00 (0.08)

b. 6.00 (0.24)

c. 1.60 (0.06) max

d. 9.50 (0.37)

OFF

DP1

DP2

DP3

LK1

CAL

+ -

+ -

REAR VIEW

Calibration potentiometers
