Martel Electronics SP300 - Manual

PRODUCT DESCRIPTION
FEATURES
TYPICAL APPLICATIONS
• Precision Instrumentation Systems
• Power Supply Monitoring
• Test Boxes
• Panel-Mount Indication
ORDERING INFORMATION
Stock Number
Standard Meter SP 300
LASCAR ELECTRONICS LTD.
MODULE HOUSE
WHITEPARISH
WILTSHIRE
SP5 2SJ
UK
TEL: +44 (1794) 884567
FAX: +44 (1794) 884616
E-mail: [email protected]
LASCAR ELECTRONICS INC.
PO BOX 50727
PALO ALTO
CA 94303-0727
USA
TEL: +1 (650) 838 9027
FAX: +1 (650) 833 5432
E-mail: [email protected] LASCAR ELECTRONICS (HK) LIMITED
FLAT C, 5/FL., LUCKY FTY. BLDG.
63-65 HUNG TO ROAD
KWUN TONG
KOWLOON
HONG KONG
TEL: +852 2797 3219
FAX: +852 2343 6187
E-mail: [email protected]

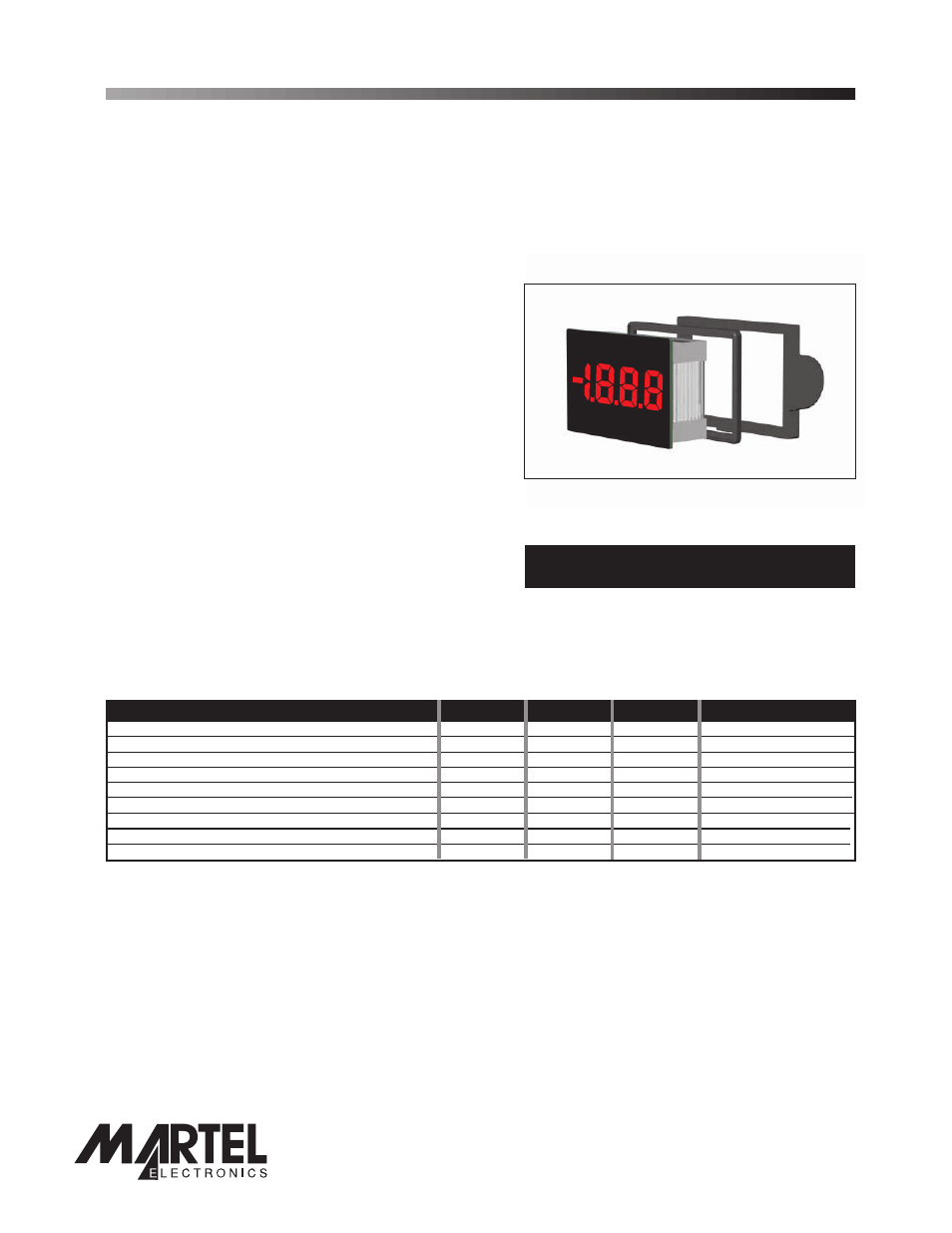

SP 300
3½ Digit LED Voltmeter Module
SAFETY
To comply with the Low Voltage Directive (LVD 93/68/EEC), input voltages to the module’s pins must not exceed
60Vdc. The user must ensure that the incorporation of the panel meter into the user’s equipment conforms to the
relevant sections of BS EN 61010 (Safety Requirements for Electrical Equipment for Measuring, Control and
Laboratory Use).
ELECTRICAL SPECIFICATIONS
Page 2 of 4 Page 2 of 4
Page 1 of 4 www.lascarelectronics.com
•
• 200mV d.c. Full Scale Reading
• 50mA @ +5V d.c. Power Supply
•
•
• Bright Red 9.4mm (0.37") Digit Height
Programmable Decimal Points
LED Display
• Display Blanking Facility
• Simplified Connection
• Splash Proof
Auto-zero and Auto-polarity
The SP 300 features a 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user
selectable. The SP 300 features a negative rail generator which enables the meter to measure a signal referenced to its
own power supply 0V. The bright red LED display ensures excellent readability under low light conditions. It can be
blanked in applications requiring low power operation. The module is easily fitted into the panel, using the fixing clip
provided. The module's low cost means it will suit high and low volume applications. The design of the panel meter's
housing and seal ensures splash proofing in many applications.
Specification Min. Typ. Max. Unit
Accuracy (overall error) * 0.1 % (±1 count)
Linearity ±1 count
Sample rate 2.5 samples/sec
Operating temperature range 0 50 °C
Warm-up time 10 minute
Temperature stability 150 ppm/°C
Supply voltage 4.75 5 5.25 V
50 mA
Input leakage current (Vin = 0V) 1 10 pA
* To ensure maximum accuracy, re-calibrate periodically.
Supply current
