Features
• Pre-assembled unit includes 8" dia. loudspeaker, transformer,
enclosure, baffl e and mounting hardware
• Labor-saving hardware package – complete with new snap hanger
assembly, allows quick and easy installation
• Innovative input panel includes combination knock-out and strain
relief connector to accommodate fl exible or rigid conduit
• Design enables upward, downward, or horizontal orientation
• 734 in
3 enclosure for extended low frequency response
• Available in Black or White epoxy fi nishes to blend with a variety of
open ceiling plans
• Suitable for use above suspended ceiling systems or open ceiling
spaces approved for use in air handling (plenum ceilings)
• UL 1480 & UL 2043
Technical Specifi cations
Loudspeaker 8" Dual Cone
Magnet Weight 10 oz (260 g)
Transformer Taps .25, .5, 1, 2, & 4 Watts, plus an off switch
(plus an 8 Ω bypass on the M1000-W)
Sound Dispersion Upward, Downward, or Horizontal
Enclosure Volume 734 in
3 (12,075.1 cm 3 )
Height 5 1 ⁄
2
" (13.97 cm)
Length 11 9 ⁄
16
" (29.4 cm)
Width 11 9 ⁄
16
" (29.4 cm)
Weight 9 lbs (3.4 kg)
General Description
With a majority of America’s workplaces having adopted an open office
plan, favoring a labyrinth of cubicles over traditional closed offices, con-
versational privacy has become an increasingly sensitive issue. A prop-
erly designed sound masking system can significantly increase speech
privacy and improve the overall work environment.
The new Atlas Sound M1000 masking speaker assembly is designed to
accurately reproduce the needed spectrum of masking sound into the
plenum space. The innovative 734 in
3 square enclosure ensures ample
low frequency response. A specially designed 8" dual cone loudspeaker
is included in the package. A high efficiency 70.7V internal transformer
is coupled to an external selector switch for easy system tuning. For
more precise adjustments, an off switch and a wide selection of watt-
age taps ranging from .25 watts to 4 watts are provided. Along with the
various wattage tap selections, the M1000-W comes with an 8 Ω bypass
setting.
The exclusive Atlas Sound EZ hang brackets simplify installation. This
innovative suspension system utilizes two collapsible galvanized hang-
ers configured to allow quick upward, downward, or horizontal firing
installation. The hangers are factory-installed on the unit and fold flat
for shipping. To meet most local code requirement, the M1000 includes
an innovative cover containing both knockouts and a strain relief. This
system will allow the use of rigid or flexible conduit (if required) and
easily accommodates “through” connections on the removable plate.
To fit continually shrinking construction budgets, the M1000 is very
aggressively priced. Contact your regional Atlas Sound representative for
details.
Architect & Engineer Specifi cations
Sound masking assembly shall be Atlas Sound model M1000 or
M1000-W. Unit shall contain Atlas Sound 8" diameter Loudspeaker
equipped with a 70.7V transformer, an enclosure, baffle, and related
mounting hardware. It shall be factory assembled, wired and ready for
installation. Model M1000 shall include external tap selector switch with
an off position and .25 .5, 1, 2, & 4 watts power taps clearly identified.
Model M1000-W shall include an external tap selector switch with an off
position and .25 .5, 1, 2, & 4 watts power taps and an 8 Ω bypass clearly
identified. Suitable strain relief shall be installed to protect hook-up leads
and accomodate conduit installations. Provisions on input panel also
included to facilitate up to
3 ⁄
4
" conduit.
The CRS enclosure shall measure 11 9 ⁄
16
" (243 mm) L x 11 9 ⁄
16
" (243 mm) W
x 5 1 ⁄
2
" (140 mm) H and have a volume of 734 in 3 (12,075.1 cm 3 ). It shall
include fiberglass material to further dampen the enclosure. Baffle shall
be a sturdy steel one-piece CRS grille measuring 11
9 ⁄
16
" (243 mm) L x
11 9 ⁄
16
" (243 mm) W. Grille shall have a perforated loudspeaker opening.
Baffle and enclosure shall be finished in textured black epoxy or white
epoxy finish on the M1000-W. Assembly shall include a dual suspen-
sion hanger system which fastens via holes provided on the enclosure.
Hangers shall be adjusted for (upward, downward or horizontal
_________ radiation.)

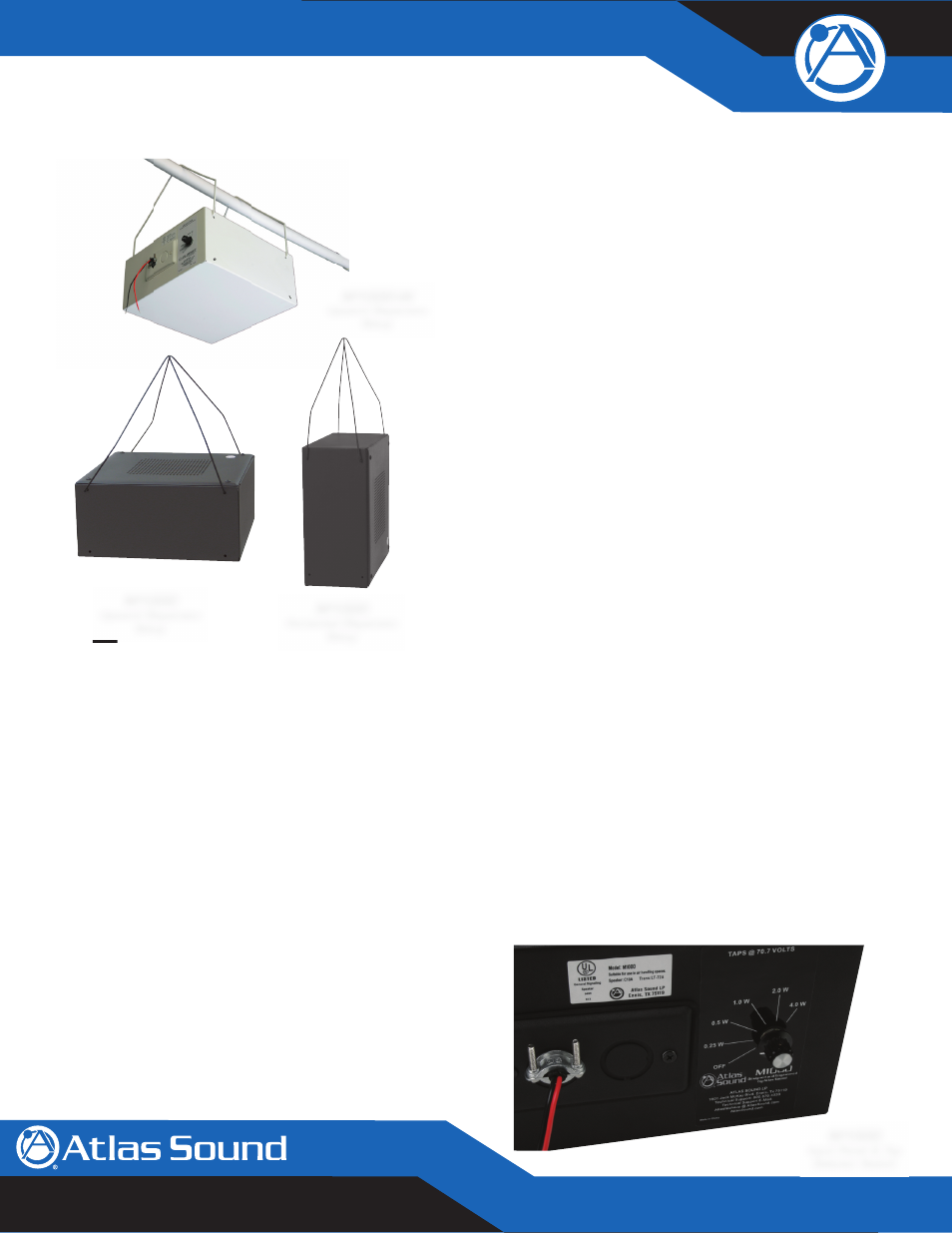

M1000-W
Upward Dispersion
Setup
M1000 & M1000-W
Sound Masking Loudspeaker Assemblies
M1000
Horizontal Dispersion
Setup
M1000
Upward Dispersion
Setup
M1000
Input Panel & Top
Selector Switch
