■ Precautions before Use
● The adapter and cable are dedicated for KYORITSU digital multimeters (DMM) and
cannot be used with other products.
● To ensure safety, turn off the DMM and printer, remove the test leads from the
DMM, and then connect the adapter and cable to the DMM and printer.
● Follow the precautions in the instruction manual for both the DMM and printer.

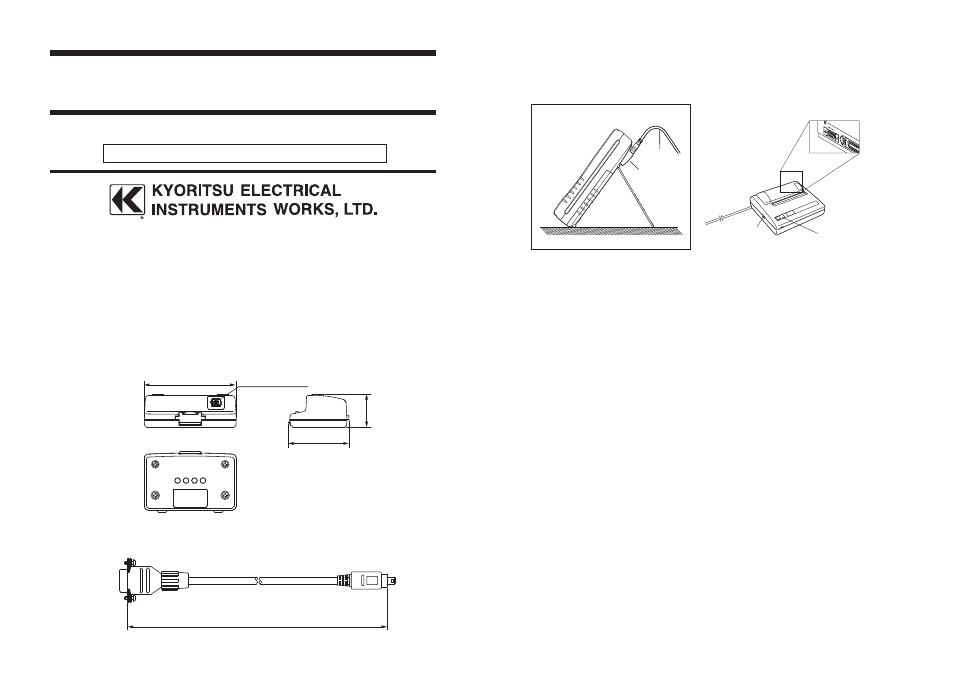

■ Dimensional drawing
Read this manual in order to use these instruments properly.
■ Connection
Remove the Blank cover on the back of the DMM to attach the adapter.
Infrared (IR) Adapter and Printer cable
■ Output to Printer
● Printer settings
Input: serial
Baud rate: 9600 bps
Note: For detailed settings, refer to the instruction manual of the printer.
● Printing real-time measured value
The measured value on the display can be printed.
1) Press the MEMORY key of the DMM. The “MEM” symbol appears on the display.
2) Press the PRINT (SELECT) Key.
3) The data is printed everytime the PRINT (SELECT) Key is pressed.
1) Press the MEMORY key of the DMM. The “MEM” symbol appears on the display.
2) Keep the PRINT (SELECT) key depressed for at least one second.
The data is printed at the specified time intervals.
3) To cancel printing, keep the MEMORY key depressed for at least one second.
The “MEM” symbol disappears on the display.
● Printing data in manual-mode (SAVE) memory
1) Press the MEMORY key of the DMM. The “MEM” symbol appears on the display.
2) Press the PRINT (SELECT) key.
3) Press the SAVE (HOLD) key.
All the data in manual-mode (SAVE) memory are printed, then the “MEM” symbol
disappears from the display.
● Printing data in logging-mode memory
1) Press the MEMORY key of the DMM. The “MEM” symbol appears on the display.
2) Press the PRINT (SELECT) key.
3) Press the LOG (MIN/MAX) key.
All the data in logging-mode memory are printed. Then the “MEM” symbol
disappears on the display.
8-08 92-1984
Keep this document in a safe place for future reference.
MODEL 8243
Printer Adapter and Cable
65.3 Cable Connector
23
.1
43.1
To Adapter (DMM)
Unit: mm
To Printer
1100±30
Printer
Power switch
Cable
Adapter
Main unit
DMM
On-line switch
Printer’ s serial port (9 pins)
MODEL 8246
INSTRUCTION
MANUAL
