― 8 ―
①Meter zero adjuster ②Test button
③Scale plate ④Pointer
⑤Insulation resistance scale ⑥AC voltage scale
⑦"BATTERY-GOOD" range ⑧Power-on-indication LED
⑨Guard terminal ⑩Probe socket
⑪Backlight switch ⑫Range switch
⑬Test lead with remote control switch (MODEL7103)
⑭Remote control switch
⑮Line probe
⑯Earth cord ⑰Standard prod (MODEL8072)
⑱Probe connector ⑲Flat test bar (MODEL7101)
⑳Safety alligator clip(MODEL7131)
○
21 Extension prod (MODEL8017)
○
22 Test lead for Guard terminal (MODEL7081)
※ Item⑨and ○
22 are only for MODEL3321A.

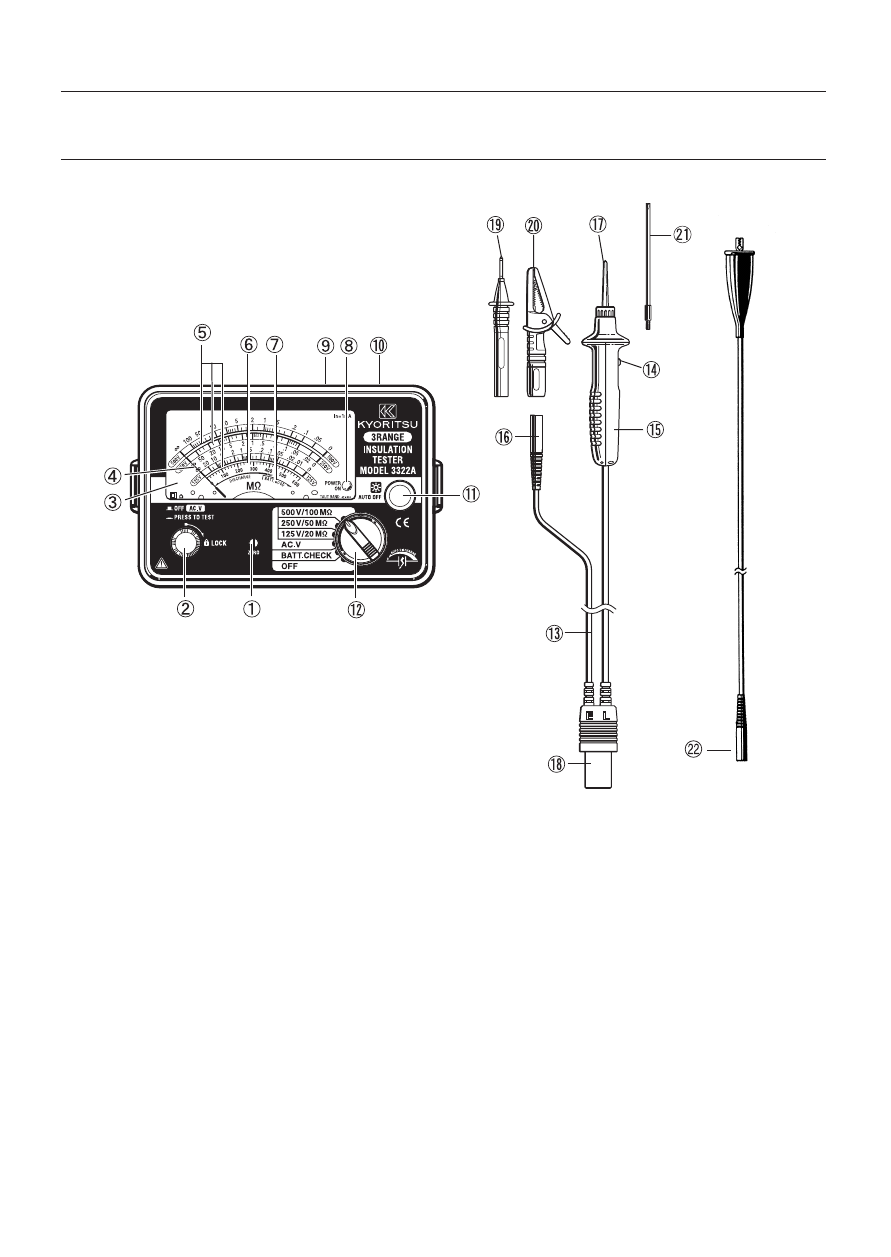

４．Instrument layout
Fig. 1 Instrument layout
