Display
1 2 5 6 7 8
I2C

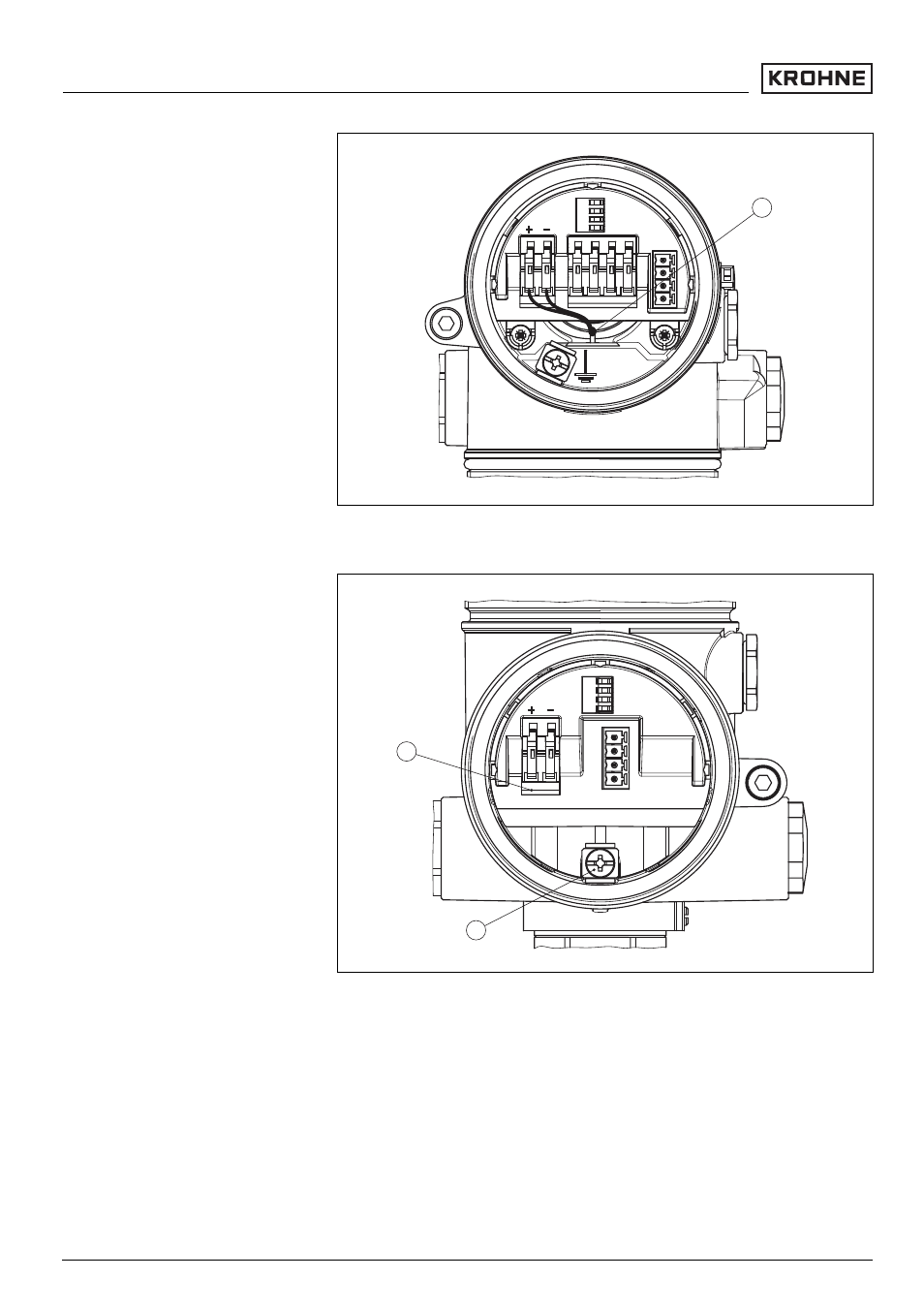

Fig. 17: Electronics compartment, double chamber housing
1 Internal connection cable to the connection compartment
1
2
Display
1 2 I2C
Fig. 18: Connection compartment, double chamber housing
1 Spring-loaded terminals for power supply
2 Ground terminal for connection of the cable screen
Electronics compartment
Connection compartment
20 OPTISOUND 3030 C - 4 ... 20 mA/HART - four-wire
Connecting to power supply
