TECHNICAL DATA

4

35

OPTISONIC 3400

www.krohne.com

11/2013 - QS OPTISONIC 3400_4002741202_R02-en

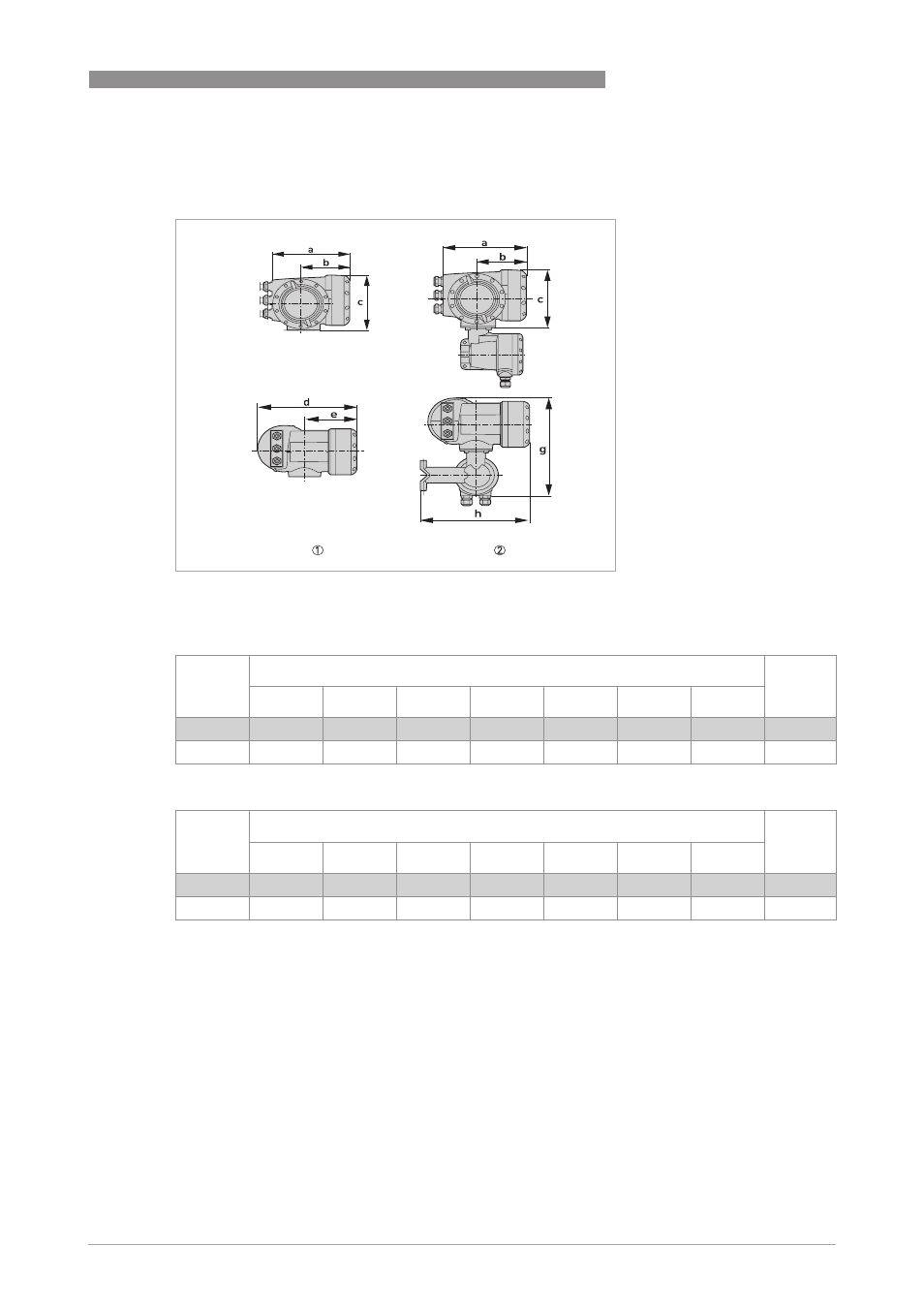

4.6 Signal converter housing

Dimensions and weights in mm and kg

Dimensions and weights in inch and lb

1 Compact housing (C)
2 Field housing (F)

Version

Dimensions [mm]

Weight

[kg]

a

b

c

d

e

g

h

C

202

120

155

260

137

-

-

4.2

F

202

120

155

-

-

295.8

277

5.7

Version

Dimensions [inch]

Weight

[lb]

a

b

c

d

e

g

h

C

7.75

4.75

6.10

10.20

5.40

-

-

9.30

F

7.75

4.75

6.10

-

-

11.60

10.90

12.60
