ELECTRICAL CONNECTION
5
7
IFC 300
www.krohne.com 07/2010 - 4000410703 - AD Modbus IFC 300 R03 en
Electrical connection
Terminals A and B of the converter are dependant on the options selected at order. Refer to the
standard handbook of the converter for connection details.
Modbus connections
Terminals Description
D- Signal A (D 0)
D Signal B (D 1)
C- Common 0 V
C Not connected

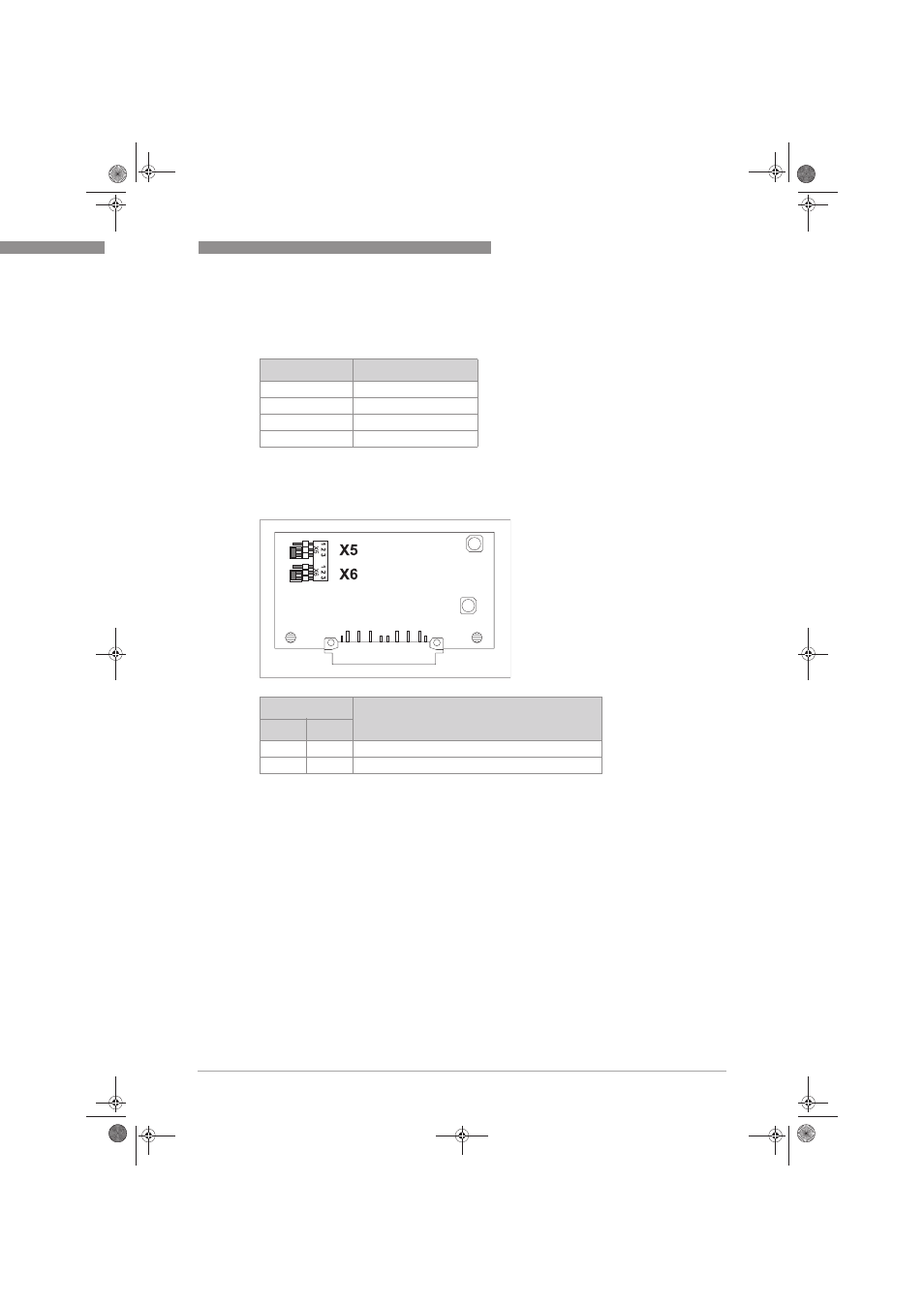

Jumper settings on the Modbus printed circuit board
Jumper position Description
X5 X6
1-2 1-2 With termination and polarization
2-3 2-3 Without termination and polarization
