INSTALLATION
2
7
OPTIFLUX 4000
www.krohne.com 04/2010 - 7309852300 - QS OPTIFLUX 4000 R03 en
2.5.3 Flange deviation
2.5.4 T-section
2.5.5 Vibration
CAUTION!
Max. permissible deviation of pipe flange faces:
L
max
- L
min
≤ 0.5 mm / 0.02"

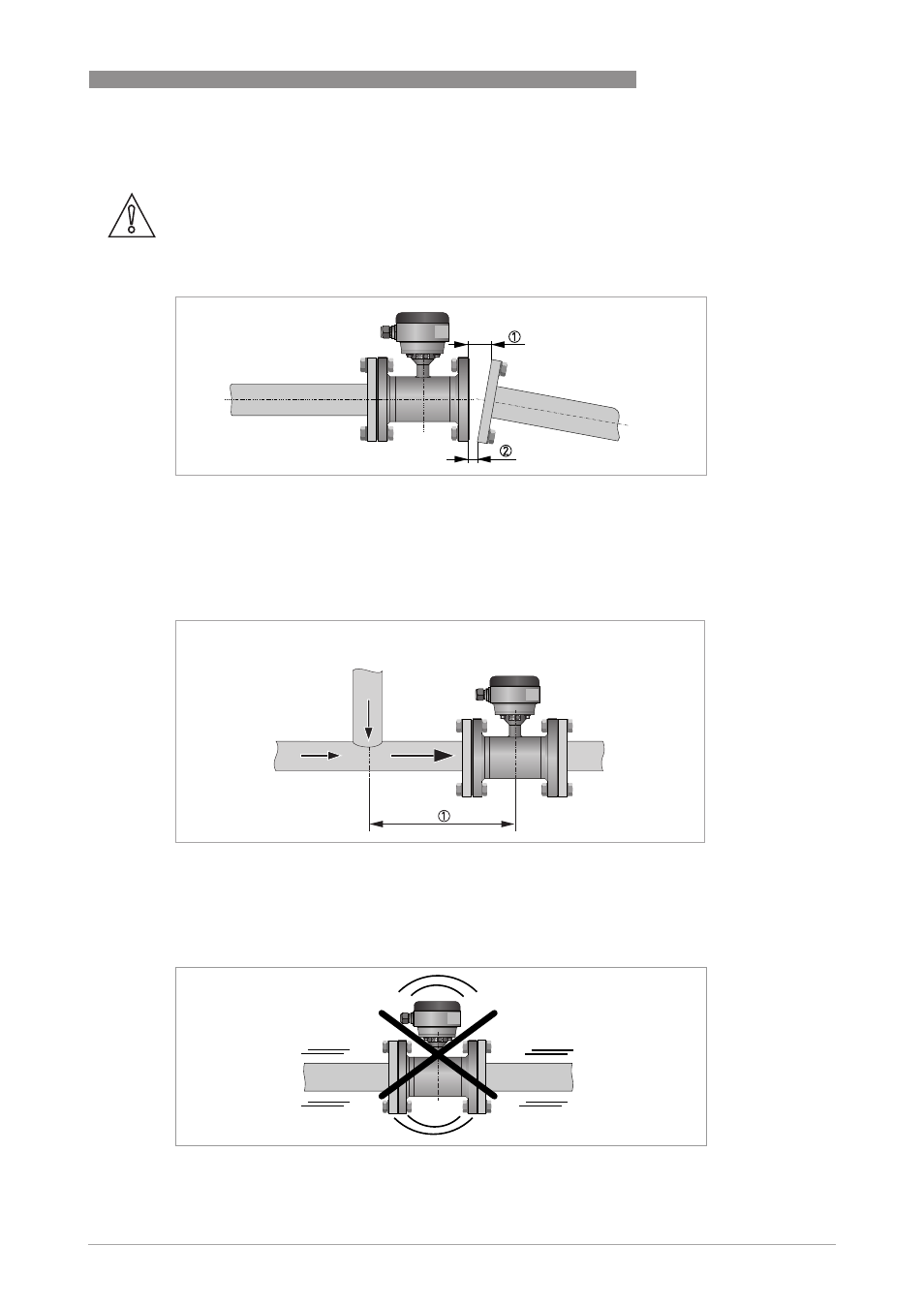

Figure 2-5: Flange deviation
1 L
max
2 L
min
Figure 2-6: Distance after T-sections
1 ≥ 10 DN
Figure 2-7: Avoid vibrations
