ASUS P3V133 User’s Manual
19
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
NOTE:
Overclocking your processor is not recommended. It may result in a slower
speed. Voltage Regulator Output Selection (VID) is not required for Pentium III/II
processors because they send VID signals directly to the onboard power regulator.
Set the jumpers by the Internal speed of your processor as follows:
(CPU BUS Freq.)
(Freq. Multiple)
CPU:PCI
Intel CPU Model
Freq.
Mult.
BUS F.
FS0 FS1 FS2 FS3
BF0 BF1 BF2 BF3 MS0 MS1
Pentium III
733MHz 5.5x
133MHz
[1-2] [1-2] [1-2] [1-2] [1-2] [1-2] [1-2] [2-3] [2-3] [1-2]
Pentium III
667MHz 5.0x
133MHz
[1-2] [1-2] [1-2] [1-2] [2-3] [1-2] [1-2] [2-3] [2-3] [1-2]
Pentium III
700MHz 7.0x
100MHz
[1-2] [1-2] [1-2] [2-3] [2-3] [1-2] [2-3] [1-2] [1-2] [2-3]
Pentium III
650MHz 6.5x
100MHz
[1-2] [1-2] [1-2] [2-3] [1-2] [2-3] [2-3] [1-2] [1-2] [2-3]
Pentium III
600MHz 6.0x
100MHz
[1-2] [1-2] [1-2] [2-3] [2-3] [2-3] [2-3] [1-2] [1-2] [2-3]
Pentium III
550MHz 5.5x
100MHz
[1-2] [1-2] [1-2] [2-3] [1-2] [1-2] [1-2] [2-3] [1-2] [2-3]
Pentium III
500MHz 5.0x
100MHz
[1-2] [1-2] [1-2] [2-3] [2-3] [1-2] [1-2] [2-3] [1-2] [2-3]
Pentium II/III
450MHz 4.5x
100MHz
[1-2] [1-2] [1-2] [2-3] [1-2] [2-3] [1-2] [2-3] [1-2] [2-3]
Pentium II
400MHz 4.0x
100MHz
[1-2] [1-2] [1-2] [2-3] [2-3] [2-3] [1-2] [2-3] [1-2] [2-3]
Pentium II
350MHz 3.5x
100MHz
[1-2] [1-2] [1-2] [2-3] [1-2] [1-2] [2-3] [2-3] [1-2] [2-3]
Celeron
466MHz 7.0x
66MHz
[1-2] [1-2] [2-3] [2-3] [2-3] [1-2] [2-3] [1-2] [2-3] [2-3]
Celeron
433MHz 6.5x
66MHz
[1-2] [1-2] [2-3] [2-3] [1-2] [2-3] [2-3] [1-2] [2-3] [2-3]
Celeron
400MHz 6.0x
66MHz
[1-2] [1-2] [2-3] [2-3] [2-3] [2-3] [2-3] [1-2] [2-3] [2-3]
Pentium II/Celeron 333MHz 5.0x
66MHz
[1-2] [1-2] [2-3] [2-3] [2-3] [1-2] [1-2] [2-3] [2-3] [2-3]
Pentium II/Celeron 300MHz 4.5x
66MHz
[1-2] [1-2] [2-3] [2-3] [1-2] [2-3] [1-2] [2-3] [2-3] [2-3]
Pentium II/Celeron 266MHz 4.0x
66MHz
[1-2] [1-2] [2-3] [2-3] [2-3] [2-3] [1-2] [2-3] [2-3] [2-3]
Pentium II
233MHz 3.5x
66MHz
[1-2] [1-2] [2-3] [2-3] [1-2] [1-2] [2-3] [2-3] [2-3] [2-3]

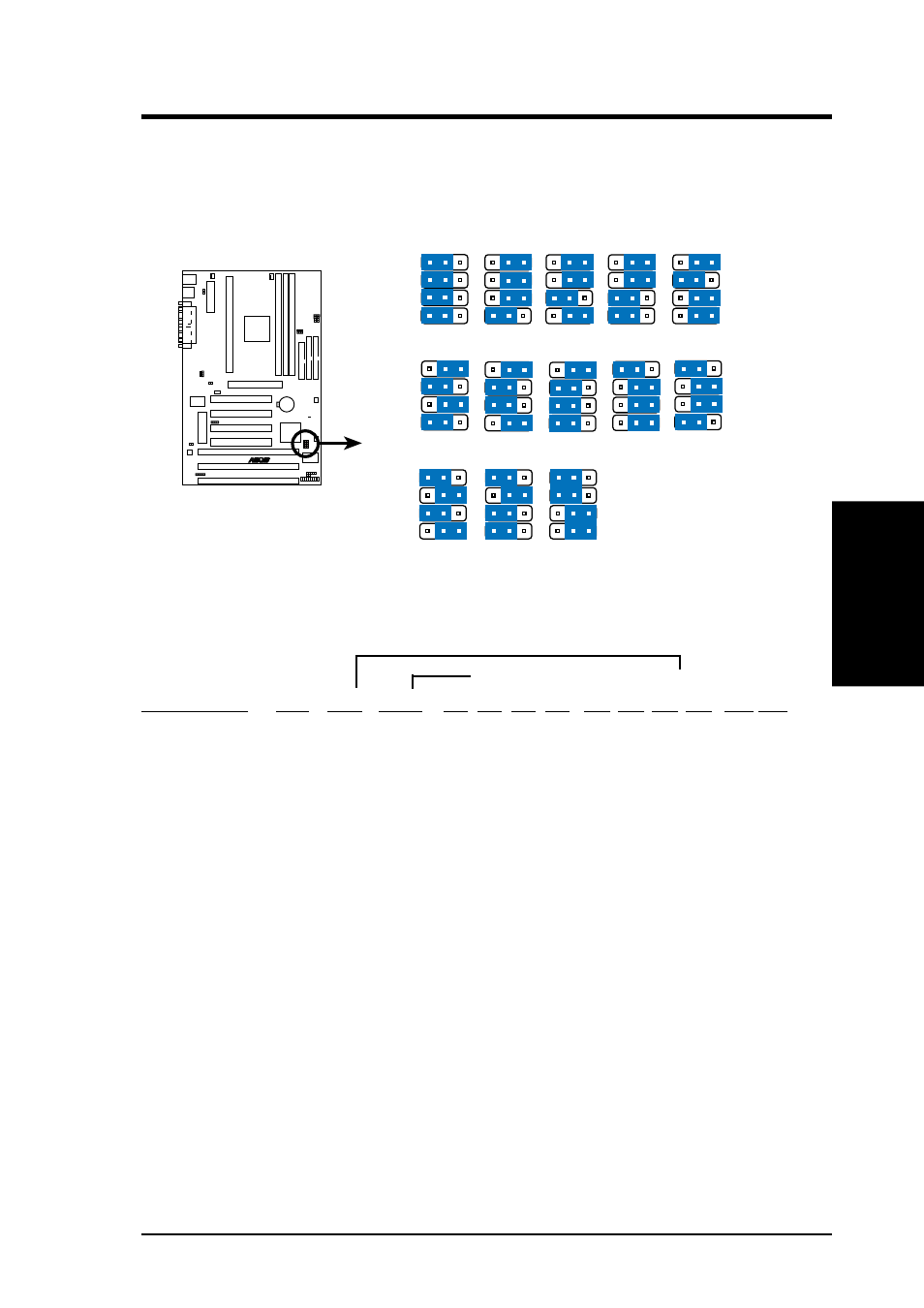

6. CPU Core:BUS Frequency Multiple (BF0, BF1, BF2, BF3)
This option sets the frequency multiple between the Internal frequency of the
CPU and the CPU’s External frequency. These must be set in conjunction with the
CPU Bus Frequency.
P3V133 CPU Core:BUS
Frequency Multiple
BF2
BF1
BF3
BF0
4.0X (4/1)
3.5X (7/2)
3.0X (3/1)
2.5x (5/2)
2.0x (2/1)
BF2
BF1
BF3
BF0
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
R
P3V133
4.5X (9/2)
2
1
3
7.0X (7/1)
2
1
3
BF2
BF1
BF3
BF0
5.0X (5/1) 5.5x (11/2) 6.0x (6/1) 6.5X (13/2)
2
1
3
2
1
3
2
1
3
2
1
3
7.5X (15/2)
2
1
3
8.0X (8/1)
2
1
3
For updated processor settings, visit the ASUS web site (see ASUS CONTACT INFORMATION)
