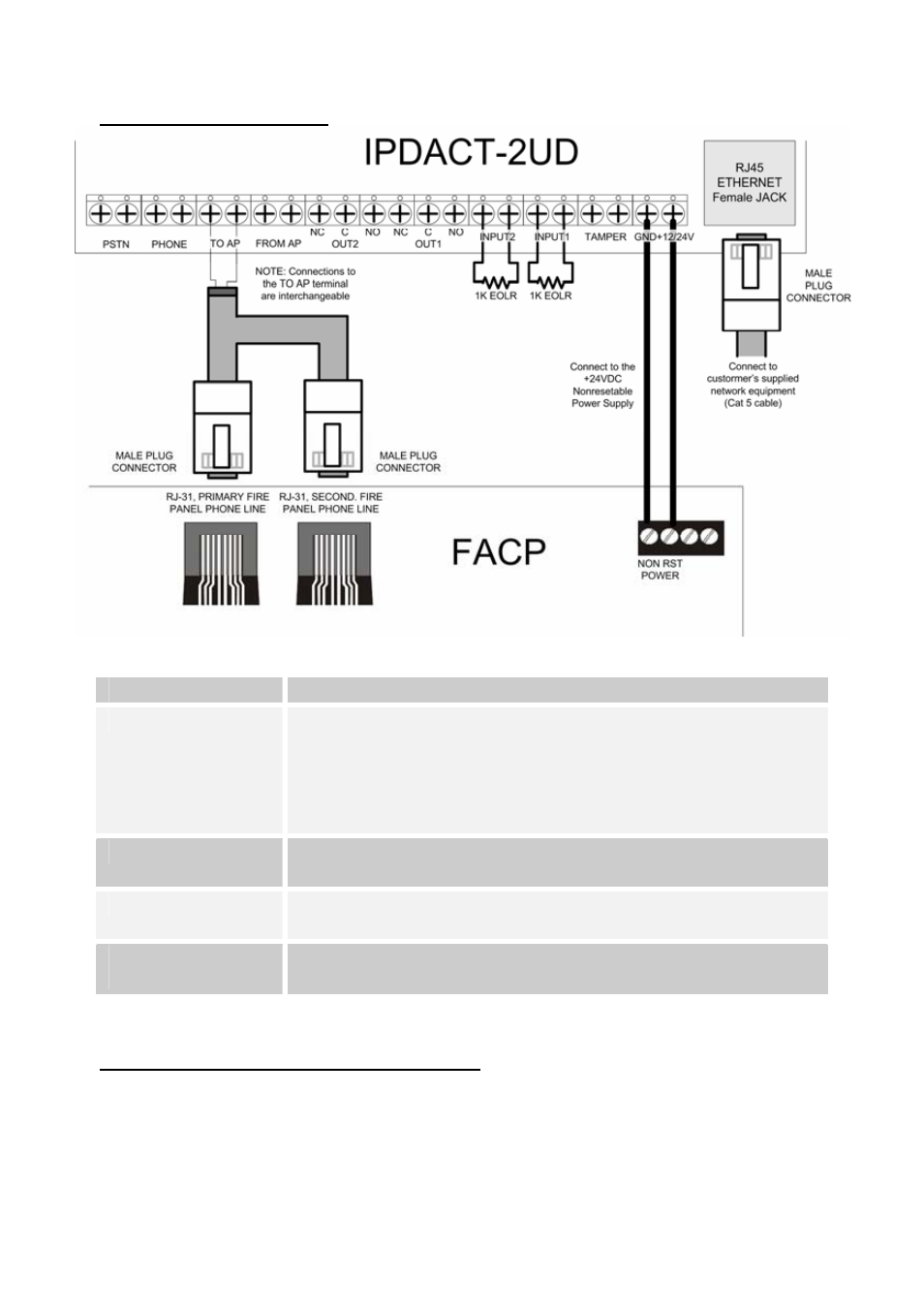

3. Physical Connections
IPDACT-2(UD) Connects to…
TO AP To the PRIMARY and SECONDARY FIRE PANEL PHONE LINE.
The connections to the TO AP terminal are interchangeable.
Maximum voltage: -72 VDC
Maximum current: 22 mA
Impedance: 600
Ω
INPUT1, INPUT2 To be connected to supplied 1K resistors (factory installed).
GND +12/24V To the power supply from the Fire Alarm Panel (or other electric
supply).
Ethernet Network
(RJ45) To a broadband modem/router or a network switch/hub for internet
access with a IEEE 802.3 interface.
4. IPDACT-2(UD) Default Configuration
Through a short circuit in the IPDACT-2(UD) P1 jumper during the start up process, you can
configure the IPDACT-2(UD) with the default factory settings. The process for this is as
follows:
1) switch off the IPDACT-2(UD),
2) short circuit the jumper with the supplied berg header,
3) switch on the device,
Dm387-Iv3 2
