Page 5
5
INDEPENDENT USE OF LEFT AND RIGHT CHANNELS
The
M-EQ 230
need not be used in a stereo mode since each
channel is completely independent. In
Figure 2
, the right
channel is connected to the house sound system for room tuning
while the left channel is connected to the on-stage monitor system
for feedback control.

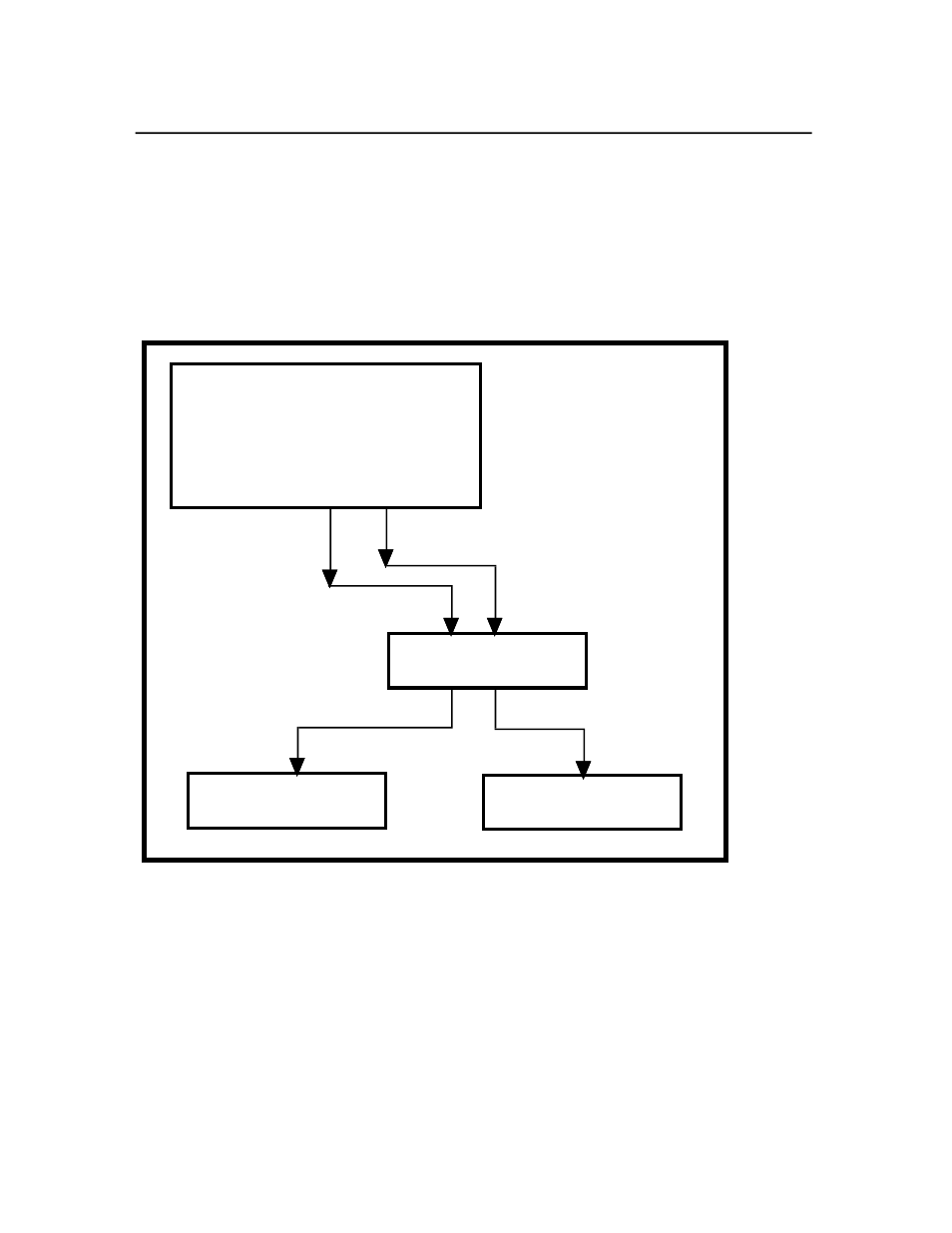

FIGURE 2
INDEPENDENT USE OF LEFT AND RIGHT CHANNELS
Alesis 1622
MIXING
CONSOLE
M-EQ 230
LEFT
INPUT
LEFT
OUTPUT
AUX SEND OUT
or
MONITOR OUT
MAIN OUT
RIGHT OR LEFT
RIGHT
OUTPUT
RIGHT
INPUT
HOUSE
POWER AMP
INPUT
INPUT
MONITOR
POWER AMP
