ALESIS Spitfire 15 - Manual

Quick Start Owner’s Manual
Manual de inicio rápido para el usuario (Spanish)
Guide d’installation rapide (Français)
Schnelles Hinweisbuch (Deutsch)
Manuale rapido di utilizzazione (Italiano)
Box Contents:
Spitfire Guitar Amplifier
User Manual
Important Safety Instructions
Schachtelinhalt:
Spitfire Gitarrenverstärker
Gebrauchsanleitung
Wichtige Sicherheitshinweise
Contenue de la boîte :
Amplificateur de guitare Spitfire
Guide de l’utilisateur
Consignes de sécurité importantes
Contenido de la caja:
Amplificador de guitarra Spitfire
Manual de usuario
Instrucciones de seguridad importantes
Contenuto della Confezione:
Amplificatore Chitarra Spitfire
Manuale d’Uso
Importanti Istruzioni di Sicurezza
Quick Start Owner's Manual (English)
Quick Setup for the Spitfire
1. Make sure all items listed on the front of this guide are in the Spitfire's box.
2. Read the Important Safety Instructions document included with the Spitfire.
3. Study the Hookup Diagram below.
4. Make sure all equipment is turned off and all gain knobs are set to zero.
5. Connect your guitar and other equipment to the Spitfire in the manner illustrated below. Refer to the
Features section for details on which cables and equipment to use.
6. Plug in all devices and turn them on.
7. Experiment with the Spitfire's effect combinations. Refer to the Effect Quick Reference on the next page.
8. When finished, turn off the amp before disconnecting any equipment to prevent damage to the speaker.
9. Go to http://www.alesis.com to register the Spitfire.

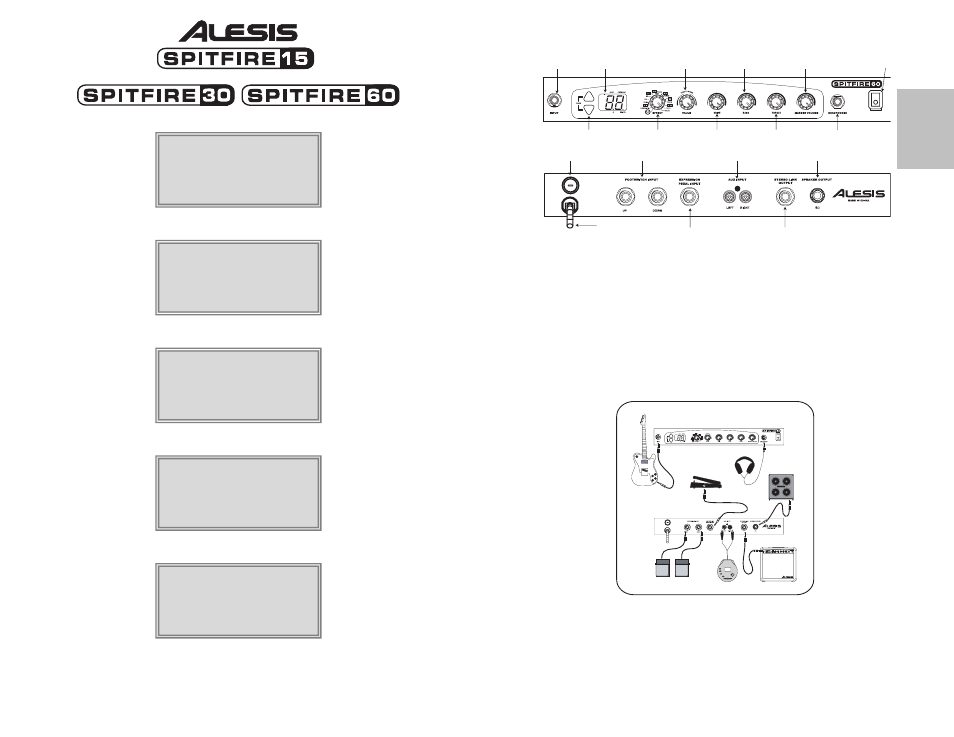

Fron
t Pa
ne
l
Input Display VALUE Knob BASS Knob MASTER VOLUME Knob Power Switch
Program Up/Down EFFECT Knob DRIVE Knob TREBLE Knob HEADPHONES Jack
Note:
Spitfire 60 is
pictured. Some
of the front
panel features
are not found
on the Spitfire
15 and 30.
Rear Pan
el
Fuse FOOTSWITCH UP/DOWN INPUTS AUX INPUT SPEAKER OUTPUT
Power Cord
EXPRESSION PEDAL INPUT STEREO LINK OUTPUT
Spitfire Hookup Diagram
Expression
Pedal
Front Panel
Rear Panel
Footswitches
CD
Player
Amp
