5/8” #8
Marking an X with a pencil on the pi-
lot holes under the tabletop will help
to line up the pilot holes with
the L Brackets in step 14.
STEP 13
Drop Leaf Assembly

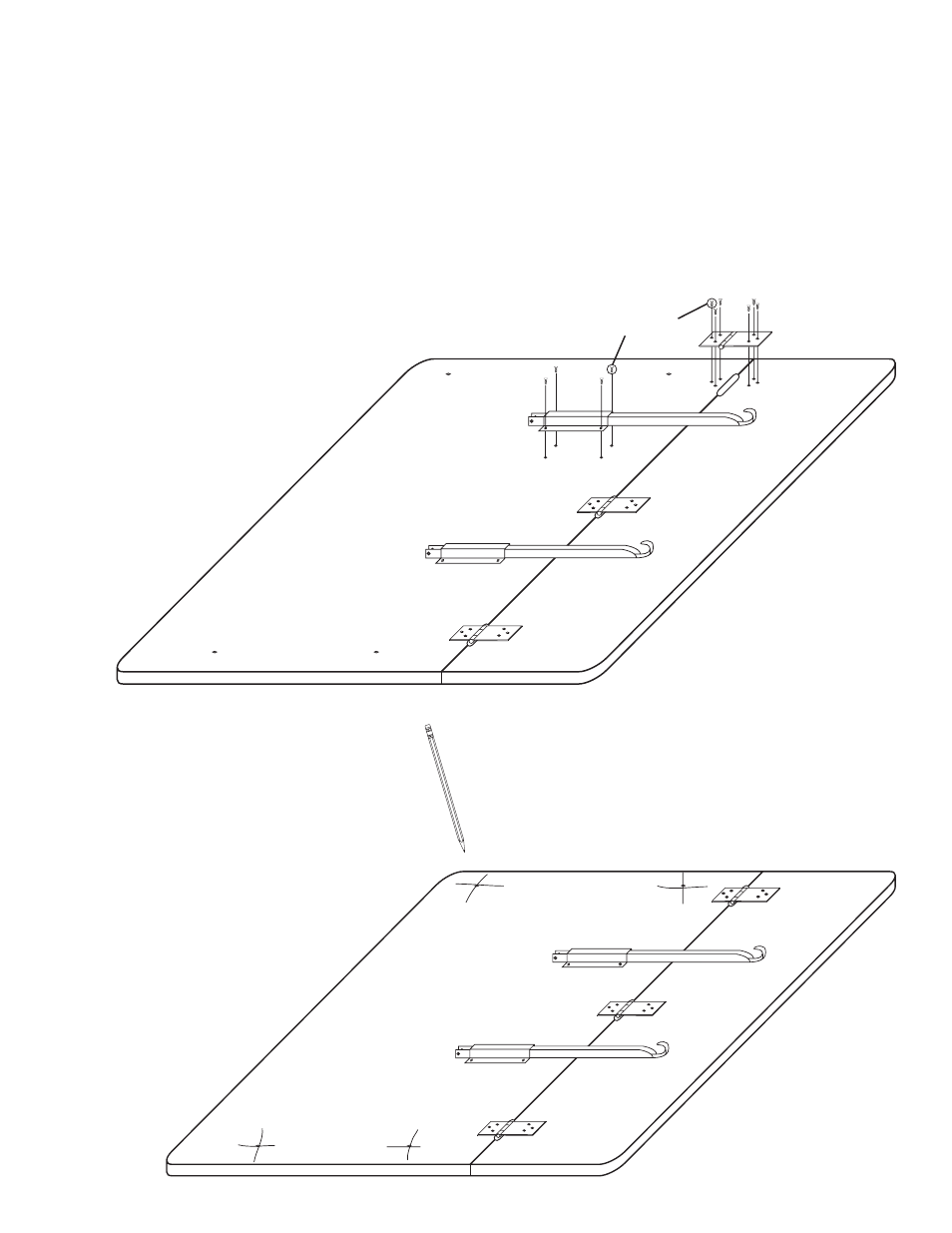

A. Invert Table Top on a smooth flat surface and make a large (X) mark over each of the 4 pilot holes
in the bottom. Make marks about 1 1/2” long. These marks will help you align the cabinet with the pilot
holes in the bottom of the Top.
B. Attach hinges/drop leaf supports with 5/8” #8 screws. Place the Cart Top on the cabinet.
C. Open the outside doors. Maneuver the Cart Top so that the ( X ) marks/pilot holes in the bottom of
the Top align with the holes in the “L” brackets. Secure top to “L” brackets with 5/8” #7 screws.
