STEP 1
A. Attach the 4 “L” Brackets to both of the side
panels with four 5/8” Phillips Flat Head #7
Screws as illustrated. Use the slot in the “L”
Brackets not the side with the hole and slot.
The top of the L-Bracket should be even with
the top of the side panel.
STEP 2
A. There are two separate racks. Each rack has a left and a right leg, a side panel and 3 retaining rods.
Identify the parts from the parts illustrations.
B. Take one right leg and attach it to a side panel with three 1 1/2” Phillips Flat Head #8 screws. Also
note that the smooth side of the back panel faces out and the reverse side of the side panel has the
top set of holes near the top of the panel. Study the illustrations to make sure all parts are in the proper
alignment.
C. insert 3 metal retaining rods into the 3 holes on the inside of the right side rack, then take a left leg,
align retaining rods and secure side with three 1 1/2” Phillips Flat Head #8 screws.
D. Illustration 2A shows an assembled side rack. Repeat with other rack.
Smooth Side Out
TOP
Retaining Rods
Left
Leg
Right
Leg
1 1/2” #8 screws
Side Panel
1 1/2” #8 screws
TOP

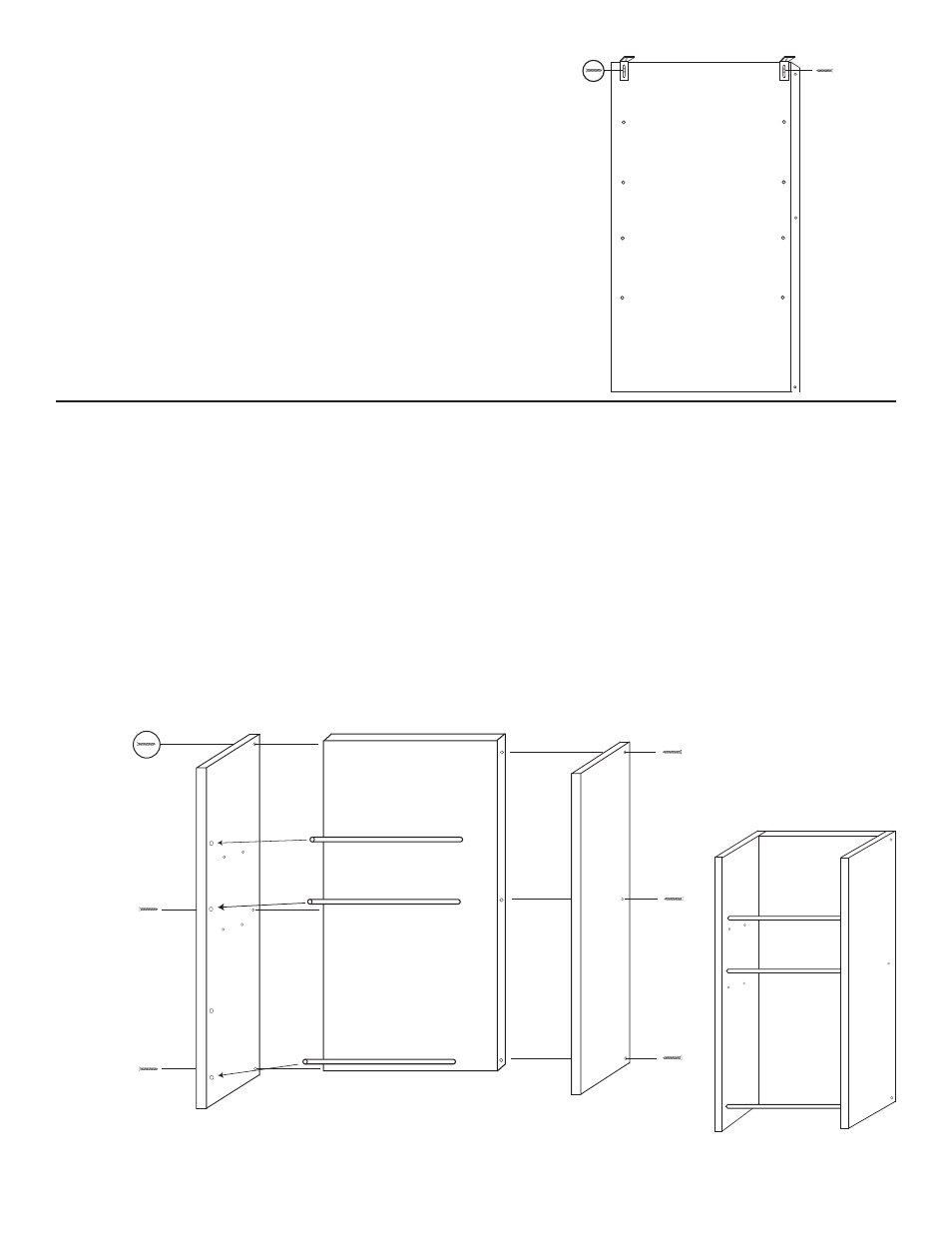

ILLUSTRATION 2
ILLUSTRATION 2A
5/8” Phillips Flat Head #7
