STEP 7
A. Take the top front brace (identical
to bottom front brace) holes in bottom
long edge up, insert the pins into the
slots on the inside of the front legs
and slide brace down until the holes in
the brace ends align with the holes in
the front legs. Secure brace with
1 3/4” bolts/hex nuts.
B. Take the middle front brace with
magnet block and slide brace into
place making sure magnet block
and holes for door pins are up as
illustrated. Secure with 1 3/4” bolts/
hex nuts.
STEP 8
A. Insert the pins in the door tops
into the holes in the middle front
brace as in Illustration 7. Place a
washer over the pins in the door
bottoms.
B. Take the bottom front brace,
insert brace as in step 7, making
sure the pins in the doors align
with the holes in the brace as in
Illustration 8. Secure with 1 3/4”
bolts/hex nuts.
1 3/4” Bolts
Nut
Insert brace pins here
Washer
Middle Front Brace

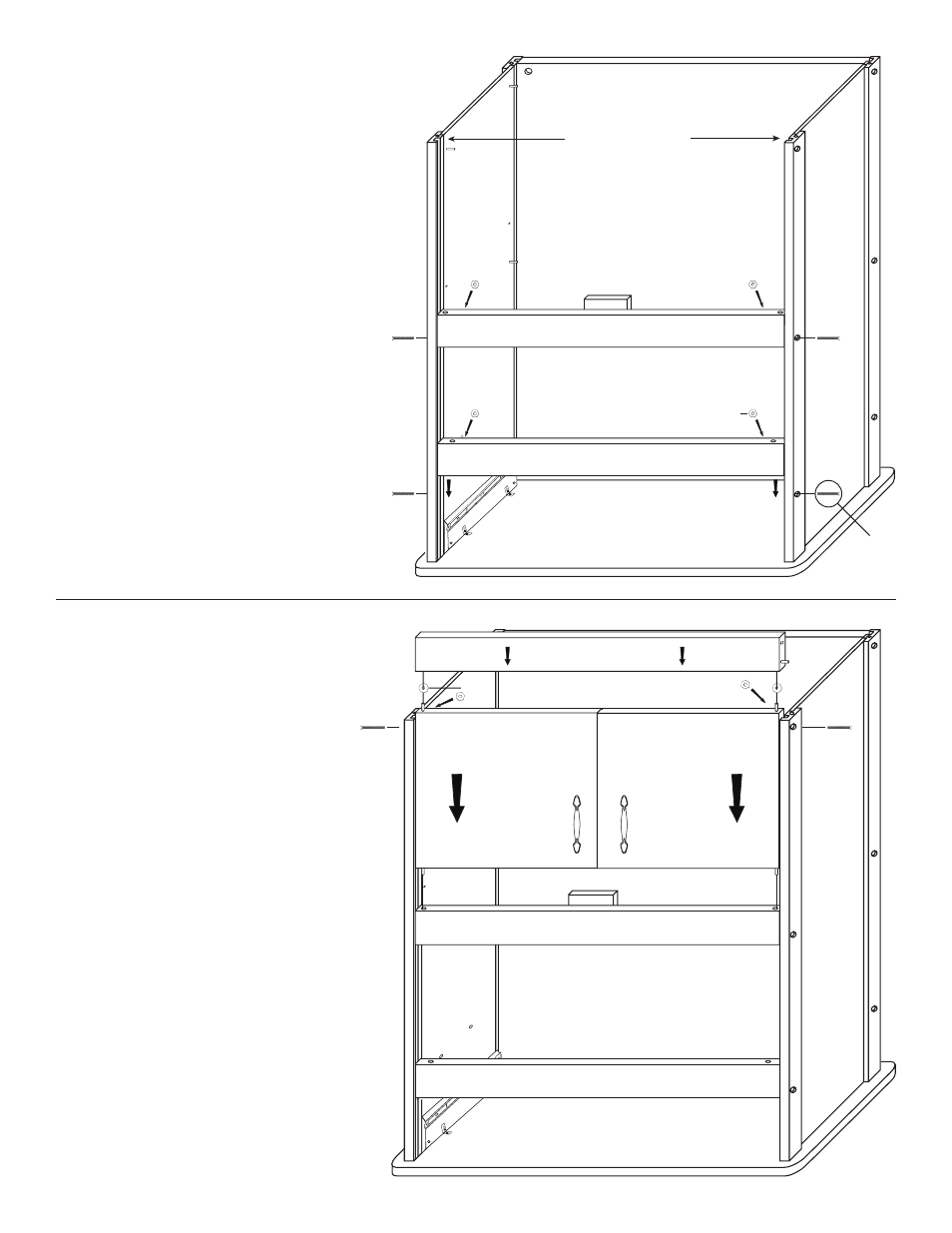

ILLUSTRATION 7
ILLUSTRATION 8
