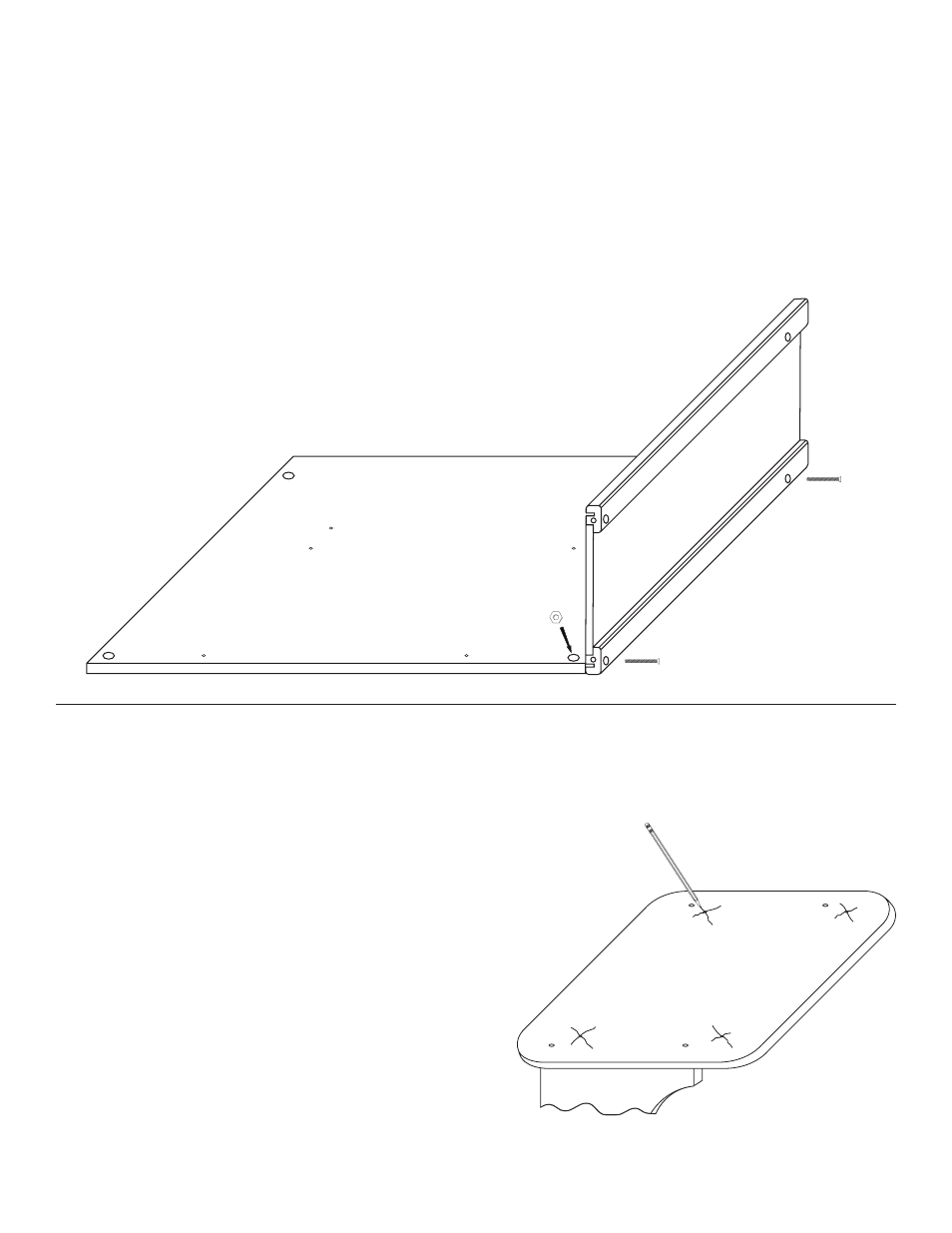

STEP 3

A. Lay Back Panel flat on a smooth surface with holes up.
B. Attach Side Panels with 1 3/4” bolts and hex nuts. After inserting bolts(s) thru the holes in the Side

Panels, thru the holes in the long edges of the Back Panel, place a hex nut on the tip of your finger,

align nut with bolt and tighten.
C. Look ahead to step 5 which shows side panels attached to back panel.

NOTE: Make sure you position the side panels according to Drawer Glides (left or right).

STEP 4

STEPS 5 - 14 WILL BE ACCOMPLISHED WITH

THE UNIT TOP UPSIDE DOWN (INVERTED),

BUILDING UPWARD TOWARD THE BOTTOM/

CASTER END! BE CAREFUL AS PART

DESCRIPTIONS ARE BASED ON AN UPRIGHT,

COMPLETED UNIT!
Mark a Large (X) mark over each of the 4 pilot holes

in the bottom. Make marks about 1 1/2” long. These

marks will help you align the cabinet with the pilot

holes in step 5.
