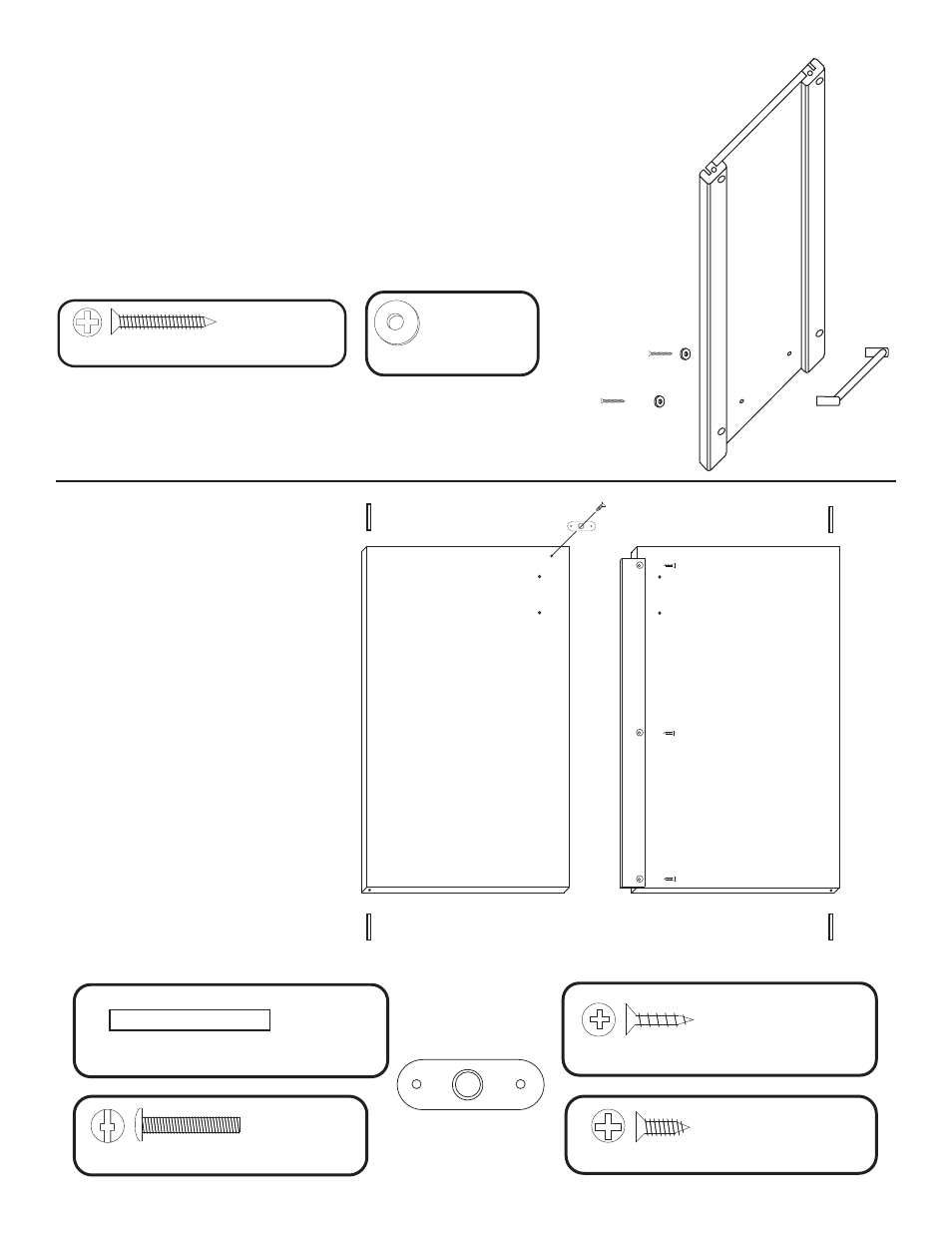

STEP 9
Attach handle/towel bar to side panel with 1” #8 screws/washer
from inside one panel.
2 used in this step
1” Phillips Flat Head #8 Screw
2 used
in this step
3/16” Flat Washer
1 1/2” Long 3/16” DIA. Steel Pin
4 used in
this step
5/8” Phillips Flat Head #8 Screw
3 used in this step
Magnet Plate
7/8” Truss Head Machine Screw
2 used
in this step
1/2” Phillips Flat Head #4 Screw
1 used in this step
STEP 10
A. Tap/insert ONE 1 1/2” pin into
each end of both doors. DON’T
OVERDRIVE PINS! Pins should
stick up about 1/2” when seated.
B. Attach the doorspacer to the
left door with 5/8” #8 screws. The
spacer has a space at the top to
allow magnet clearance and is
almost flush with the bottom of the
door. Countersunk holes out.
C. Attach the magnet plate (may
be stuck to magnet! ) with the 1/2”
#4 screw to the top of the right
door. Bumps go toward the wood.
D. Attach door handles with 7/8”
truss head machine screws.
