STEP 2
ATTACH DRAWER GLIDES TO GLIDE SUPPORT STICKS
A. Take the Drawer Glides, extend them to theif fullest. See illustration 4. The Glide has 3 parts.
Remove the furthest extended part (1) (smallest) by pushing the black plastic lever down – then pull
part out, separating it. This part will attach to the Drawer Side later. Attach the largest parts (2&3) to
the Glide Support Stick using holes as illustrated. Attach with 7/16” #6 pan head screws. About 1 1/4”
of this glide will overlap the Front Leg. See illustration 2B.
B. Repeat with the other side.
This end of the glide overlaps front leg 1 1/4”
& the bottom edge drops below the
glide support brace
Right Front Leg
Bastion Post
Positions for Top
Back Brace
Push down on the black tab and pull out
Gets attached to the Drawer Side Gets attached to the Glide Support Brace
(1) (2) (3)
(1) (2) & (3)
Tab faces out
This side goes against glide support brace
This shows back side of Glide. Part (1) is separated from Parts (2) & (3).
This side of Part (3) goes against the Glide Support Brace. Screw holes are blackened.

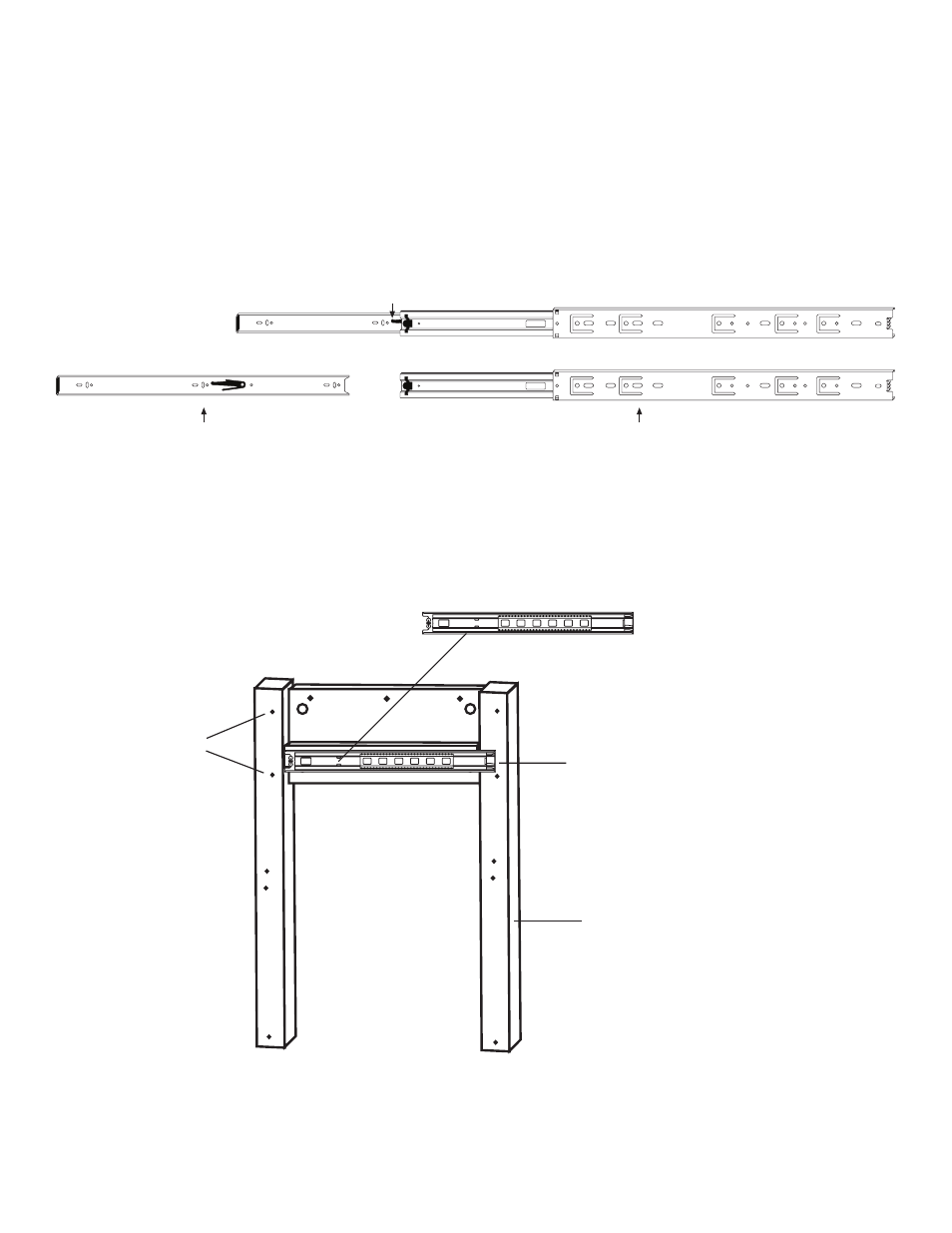

Illustration 2A
Illustration 2B
PREPARE SIDE ASSEMBLIES FOR BACK BRACES
The top back brace utilizes the bastion system for attachment. Place the bastion posts into their
positions on the back legs only of both side assemblies.
