Step 1

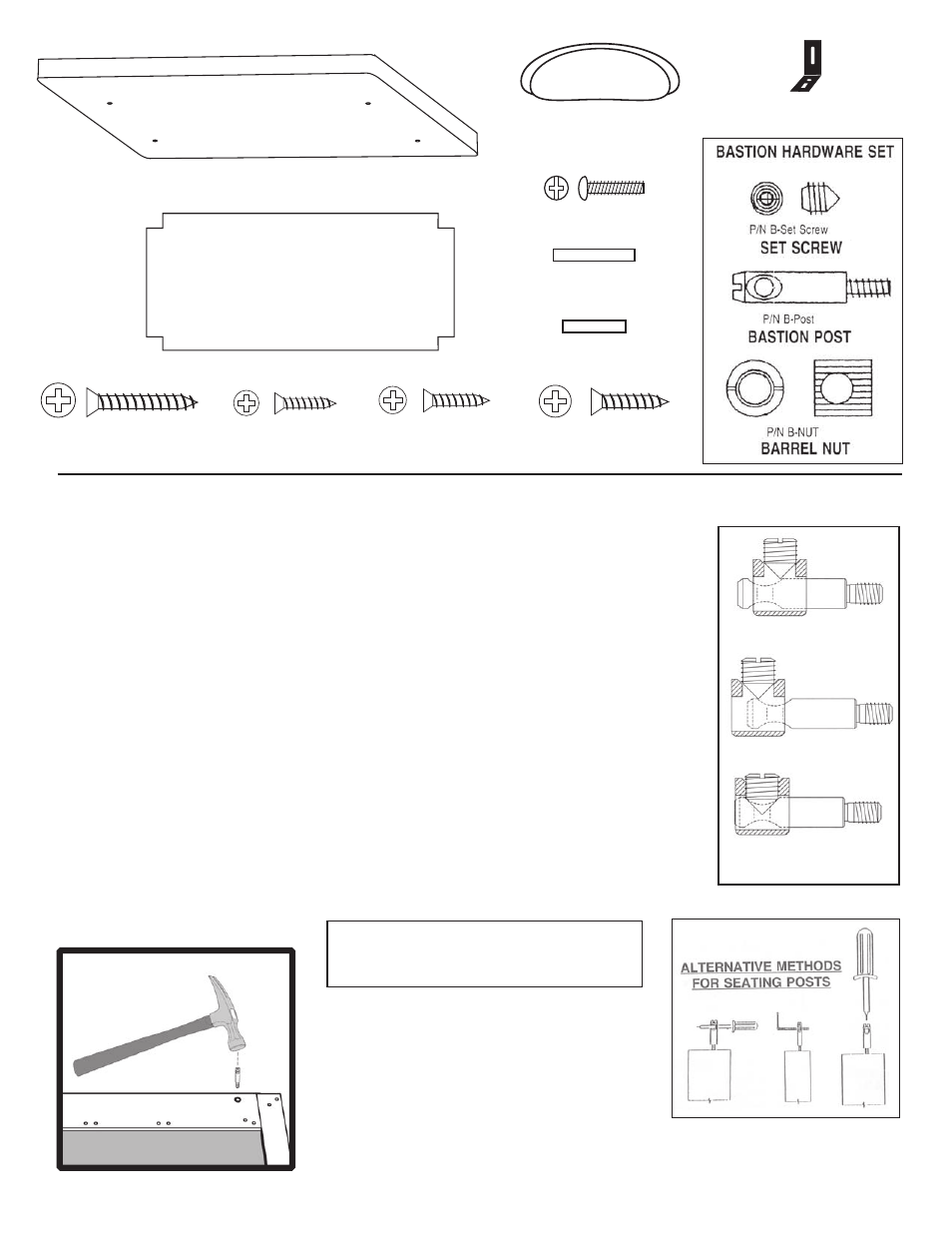

TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS

1. The Bastion fastening system consists of a steel post (threaded on one end with a hole through the shaft on the

other end); a Barrel Nut (cylindrical barrel-shaped with threaded open end & holes through the sides); and a Set

Screw (Phillips slot on one end, pointed on the other)

2. To attach Posts: A) Dip threads of Post in vegetable oil. B) Align threaded end of Post with hole in wood, tap on

slotted end with hard hammer until threads enter, then tighten down using a flat head screw driver or the provided

allen wrench (See the Illus. Bas. 3 for alternate seating methods). DO NOT TRY TO HAMMER THE POST ALL THE

WAY IN AS IT WILL STRIP THE POST HOLE. C) When solid shaft of Post hits wood, back out approximately ½ turn

and align hole in shaft.

3. Place the Barrel Nut into the designated hole in the brace or drawer side, threaded side up, making sure the hole

for the Post is aligned in the proper direction. Insert the Post into the designated hole, right into the Barrel Nut, where

you should be able to see the entire Post hole. See Illustration Bas. 1 to compare the alignment of the Post hole in

the Barrel Nut.

4. Insert the Set Screw into the threaded end of the nut and tighten down. The Set Screw will seek the center of the

hole in the Post as it is tightened down, forcing the Nut toward the main shaft of the Post. This is what tightens the

wooden parts together. Nuts should thread easily – DON’T CROSS THREAD! If Set Screw doesn’t thread easily,

check position of the hole in Post.

5. If the wooden parts are not tight against each other, the Post needs to be screwed in another half turn or so.

Illustration Bas. 1

Step 2

Illustration Bas. 2

Illustration Bas. 3

(1) Table Top

48” x 26” x 1-3/4”

Part #: TT-1426

(1) Middle Shelf

43-1/2” x 22” x 7/16”

Part #: MS-1426

(4) Clamshell Handles

Part #: Handle-1426

(8) Clamshell Handle Screws

Part #: CHScrews-1426

(50) 3/4” Steel Pins

Part #: PIN3/4

(12) 1-1/4” #8 Screws

Part #: 1-1/4#8-1426

(4) L Brackets

Part #: Lbracket-1426

(20) 5/8” #6 Screws

Part #: 5/8#6-1426

(12) 5/8” #5 Screws

Part #: 5/8#5-1426

(6) 1” Steel Pins

Part #: PIN1

(34)

(12) 5/8” #7 Screws

Part #: 5/8#7-1426
