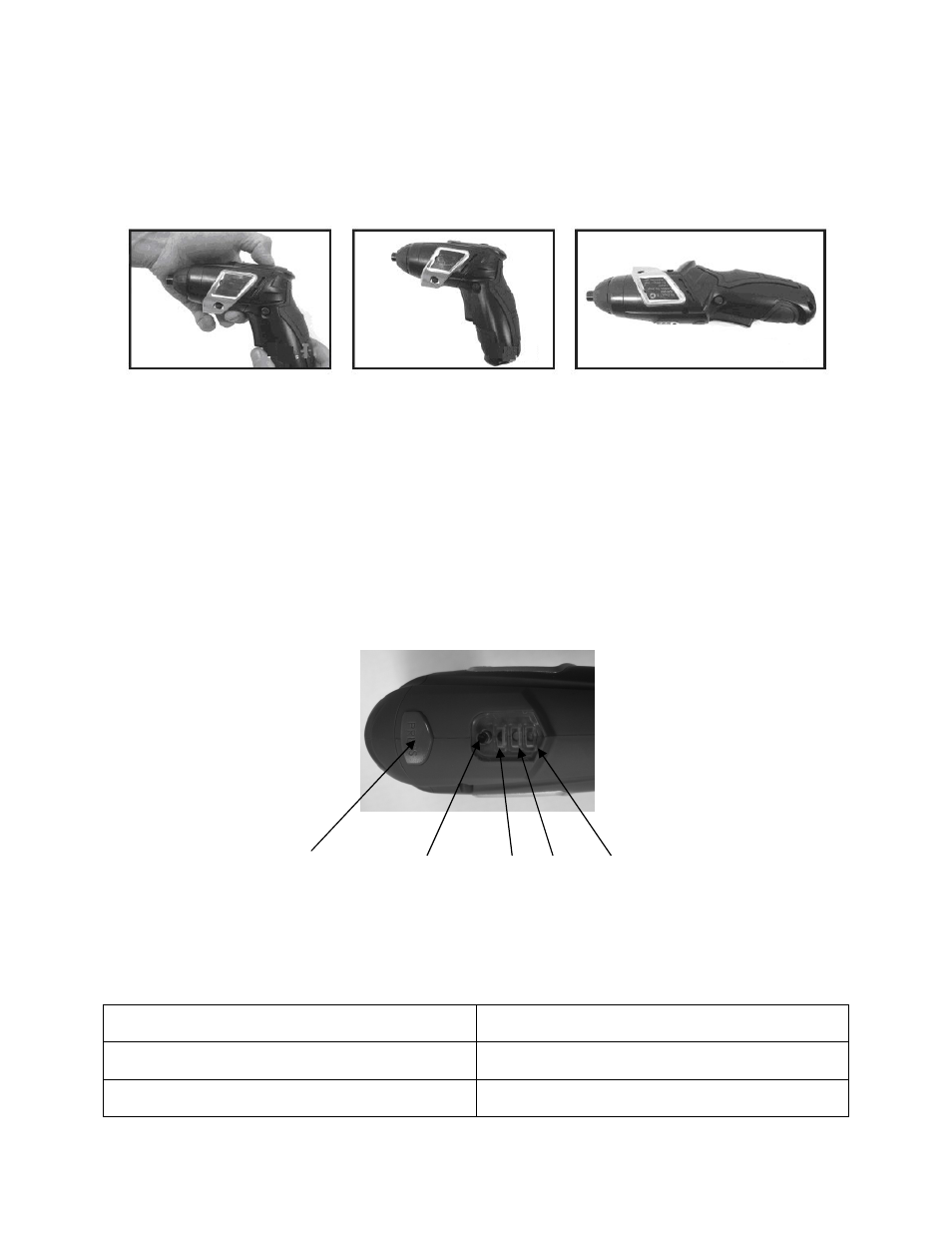

PIVOTING THE TOOL HEAD
The head of the tool can be pivoted for optimum versatility.
1. Press the pivot release button.
2. Pivot the tool head to the inline position
until an audible click is heard.
WARNING: Check to make sure tool handle is locked after pressing pivot release button and changing screwdriver
positions.
WARNING:
• To avoid being pinched at the areas indicated with black arrows, hold the screwdriver at both ends and use your
thumb to depress the pivot release button when changing positions.
• Do not use screwdriver as a pry bar in any position.
•
To avoid screwdriver being turned on accidentally, do not carry in your pocket.
POWER INDICATOR
This drill is equipped with a power indicator which is used to display the battery pack’s remaining run time. Press
the power indicator button to display the LED lights. When the battery capacity indicator is red, the battery has less
than 30% of its capacity and should be charged.
(1) (2) (3) (4)
Pivot Release Button
(1) Power Indicator Button- Press it to display the LED lights
(2) Red Light
(3) Yellow Light
(4) Green Light
Full Power Green, yellow and red lights are on.
Full Power But Will Require Charging Shortly (70%-
80% Charge) Yellow and red lights are on.
Needs charging the battery Only red light is on.
