7

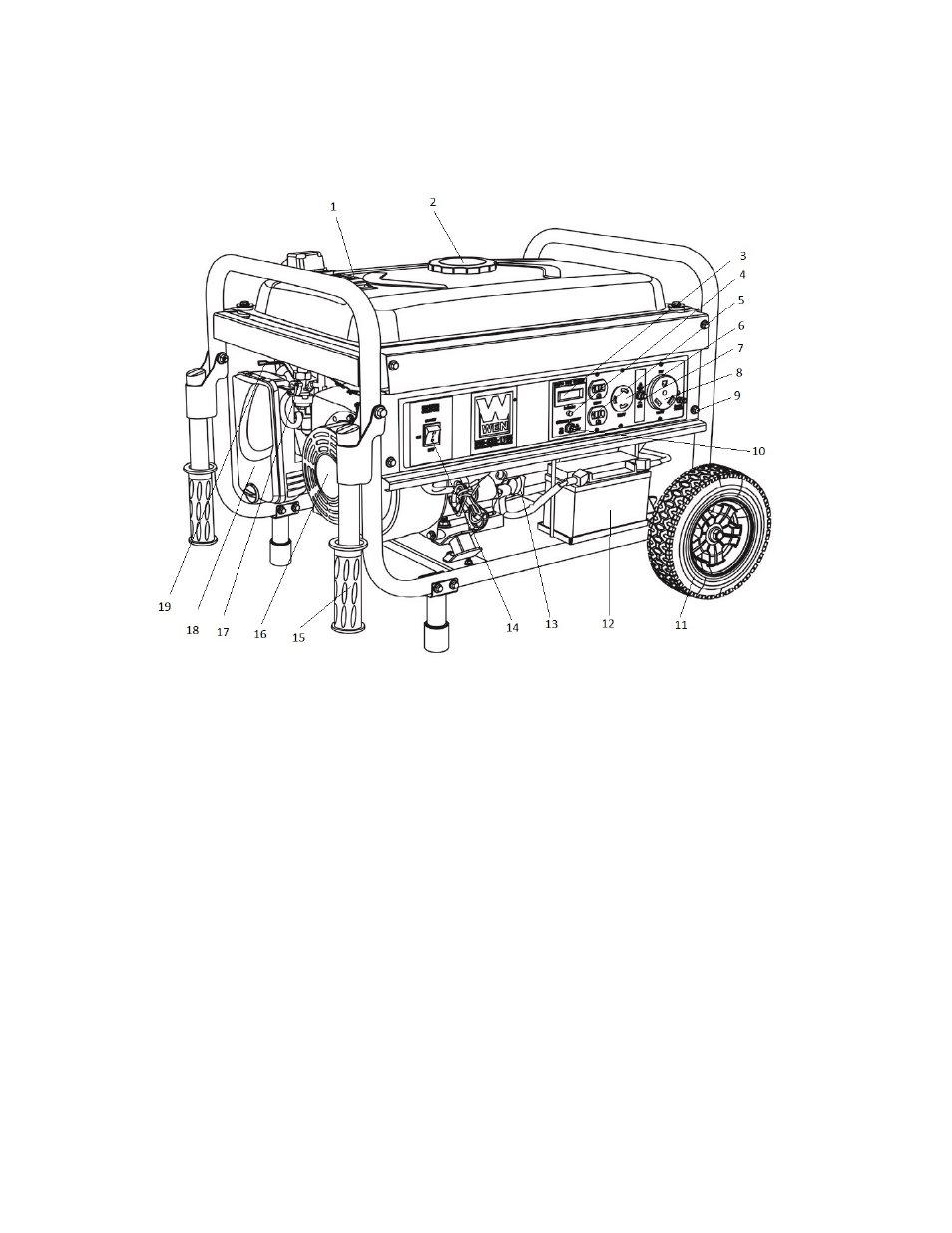

GENERATOR COMPONENTS
Please familiarize yourself with the locations and functions of the various components and controls
of your generator.
(1) Fuel Gauge- Indicates the amount of fuel in the
tank.
(2) Fuel Cap- Access to the fuel tank for adding
fuel.
(3) Digital Engine hour counter
(4) Power Indicator-Green lights that turn on to
indicate the output of power to each receptacle.
(5) 120 Volt AC Duplex Receptacle- To connect
electrical devices that run 120 Volt, 60 Hz,
single phase, AC current.
(6) 120 Volt AC Receptacle- To connect electrical
devices that run 120 Volt, 30A, 60 Hz, single
phase, AC current.
(7) 30A Circuit Reset Button- Reset button that
protect the generator from electrical overload.
(8) 120V 30A RV Receptacle
(9) Grounding Nut
(10) 20A Circuit Reset Button- Reset button that
protect the generator from electrical overload.
(11) 8" Wheels- For easy transport.
(12) 12V Battery
(13) Oil Fill and Dipstick- Location for checking and
filling engine oil.
(14) Engine Switch- Used to start/stop engine.
(15) Handles- For easy transport.
(16) Recoil Starter- Pull-cord for starting engine.
(17) Fuel Valve- Allows fuel to enter engine.
(18) Air Cleaner- a removable, cleanable, sponge-like
element that limits the amount of dirt pulled into the
engine.
(19) Choke Lever
