WEN 3500 Generator Parts Instructions - Manual (Page 6)

…and a quick-disconnect terminal on the other.

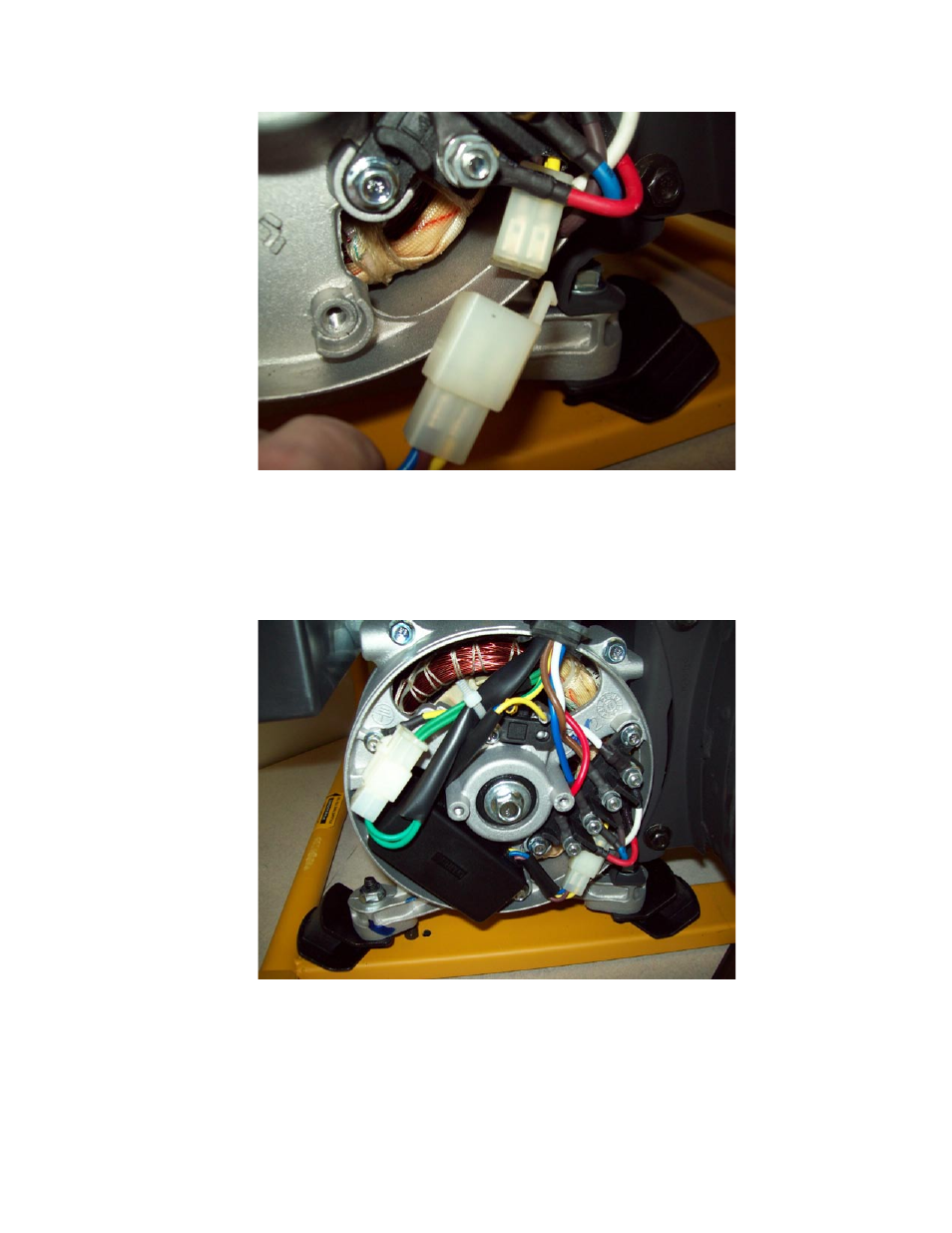

As noted above, the Brush Assembly polarity is important. Make sure the Voltage Regulator
wires going to the Brushes are installed correctly. The wire marked with a “+” should be
attached to the tab on the LEFT.
Reattach the quick-disconnect terminal.
Before reinstalling the cover, dress the wires to prevent them from touching moving parts when
the Generator is running.
