Video Mount Products LCD-MID-CHB - Manual (Page 2)

4
20
19
3 1
18
10
7
9
11
12
8
6
14
5
16
17
15 13
2
30
32
34
35
33
31
29
28
27
26
24
21
22
23
25

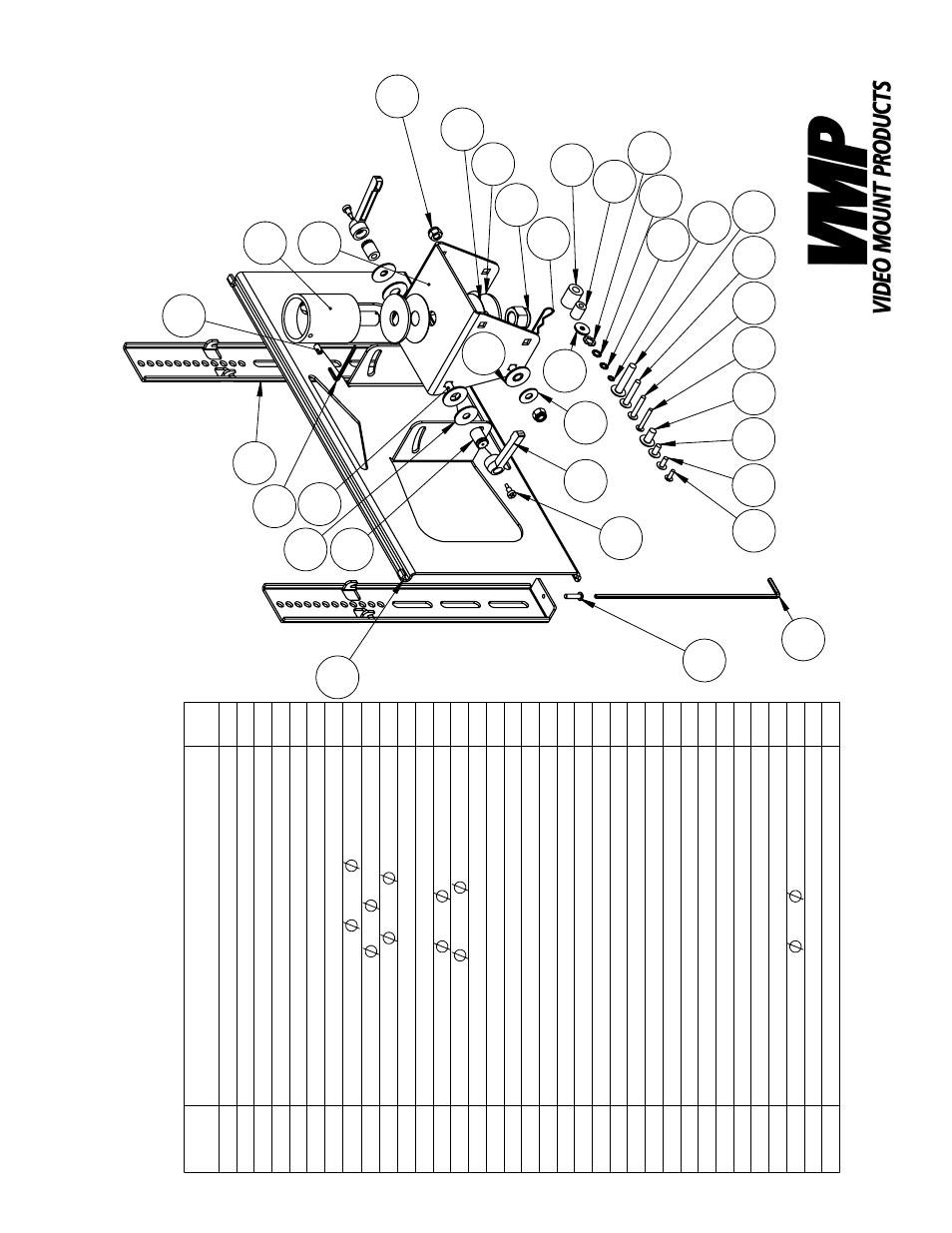

LCD-MID-CHB
ITEM NO.
DESCRIPTION
Qty
1
Base Plate
1
2
Tilt Plate
1
3
Pipe Couple
1
4
Screen Mounting Brackets
2
5
Security Screw M5*P0.8*L20
2
6
Long Allen Key M4
1
7
Screw M8*P1.25*L20
4
8
Nylon Washer
12.5*
30*T1.8
4
9
Washer
17*
55.6*T3.0
2
10
PVC Washer
16.5*
55.6*T0.7
2
11
Nylon Nut M16*P2.0
1
12
Cotter Pin
1
13
Washer
8.5*
25*T2.0
2
14
Washer
5/16"*
19*T1.6
2
15
Gear Nut
2
16
Lever Handle
2
17
Lever Screw
2
18
Nylon Nut 5/16" - 18UNC
2
19
Brake Screw 1/4" - 20UNC*L3/8"
1
20
M3 Allen Key
1
21
Cross Screw M4*P0.7*L12
4
22
Cross Screw M5*P0.8*L12
4
23
Cross Screw M6*P1.0*L12
4
24
Cross Screw M8*P1.25*L16.5
4
25
Cross Screw M4*P0.7*L30
4
26
Cross Screw M5*P0.8*L30
4
27
Cross Screw M6*P1.0*L35
4
28
Cross Screw M8*P1.25*L40
4
29
Lock Washer M4
4
30
Lock Washer M5
4
31
Lock Washer M6
4
32
Lock Washer M8
4
33
Washer
5.5*
18*T2.0
4
34
Spacer M6
4
35
Spacer M8
4
