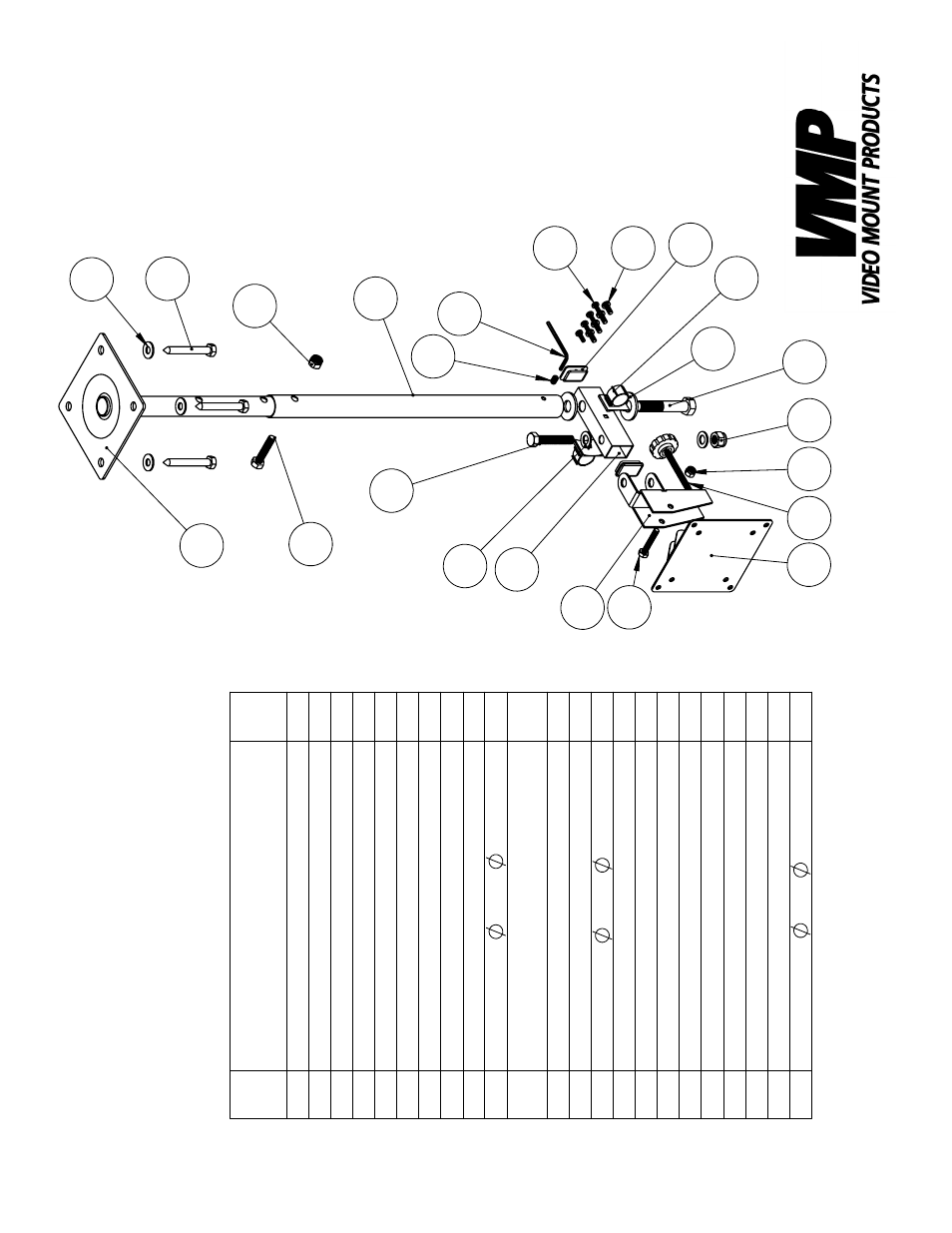

Video Mount Products LCD-1CW - Manual (Page 2)

1
18
19
2
15
17
22 21
20
14
13
11
10
8
7
12
5
4 9
3
16
24 23
LCD-1C
ITEM NO.
DESCRIPTION
QTY.
1
Ceiling Plate
1
2
Extension Tube
1
3
Support Tube
1
4
Swivel Bracket
1
5
Mounting Plate
1
7
Nylon Nut M6*P1.0
1
8
Nylon Nut 3/8"-16UNC
1
9
Screw M6*P1.0*L35
1
10
Screw M12*P1.75*L65
1
11
Washer
1/2"*
32mm
2
12
Adjusting Screw 1/4"-
20UNC*50mm
1
13
Cable Clips
2
14
End Plug
2
15
Washer
3/8"*
19*T1.6
2
16
Screw 3/8"-16UNC*L2"
1
17
Brake Screw 1/4"-20UNC*L3/8"
1
18
Screw 5/16"-18UNC*L1-1/2"
1
19
Nylon Nut 5/16"-18UNC
1
20
M3 Allen Key
1
21
Screw M4*P0.7*L12
4
22
Screw M5*P0.8*L12
4
23
Lag Screw 5/16"*L2.5"
4
24
Washer
8.3*
19*T1.6
4
