Video Mount Products LCD-DM2 User Manual

Page 3

Step1

Before starting, lay out all parts to your mount and match them to the
parts list provided. Verify that you have all your parts before attempt-
ing to assemble the mount.

Note: The LCD-DM2 and LCD-1 combo was

designed to mount two of the same TV or TVs of similar size and weight.

It is not designed to have two signif cantly different TVs mounted. Also
note that LCD-1 part numbers have hexagons around their numbers
and LCD-DM2 has circles around its part numbers.

Through bolting the LCD-DM2

Step 2

Mark the desk or desired mounting surface in preparation of instal-
lation of the bottom tube

LCD-DM2. Drill a ½” hole through the

desired mounting surface. Place a plastic washer

LCD-DM2 on

either side of the drilled hole and place metal washers

LCD-DM2

on top of the plastic washers

LCD-DM2. Insert the M10 screw

LCD-DM2 through the bottom most metal washer LCD-DM2

through to the top most metal washer and then screw the bottom
tube

LCD-DM2 onto the M10 screw. Warning: Please verify

that your mounting surface will support the combined weight of
your mount, mounting hardware, and monitor. Also verify that the
mounting surface is safe to drill through. If in doubt, please contact
a professional installer.

Step 3

Make sure the fl at head screw

LCD-DM2 is connecting the bottom

tube

LCD-DM2 to the base seat LCD-DM2. Note: The mount

may come assembled with the button cap M10 screw

LCD-DM2

attaching the base seat please make sure to attach the fl at head
screw instead.

Step 4

Place the clamp on the edge of the desk or mounting surface and
turn the adjustable bolt

LCD-DM2 until the fi xed plate LCD-

DM2 is tight against the bottom of the desk or desired mounting
surface.

Warning: Please verify that your mounting surface will sup-

port the combined weight of your mount, mounting hardware, and
monitor. If in doubt, please contact a professional installer.

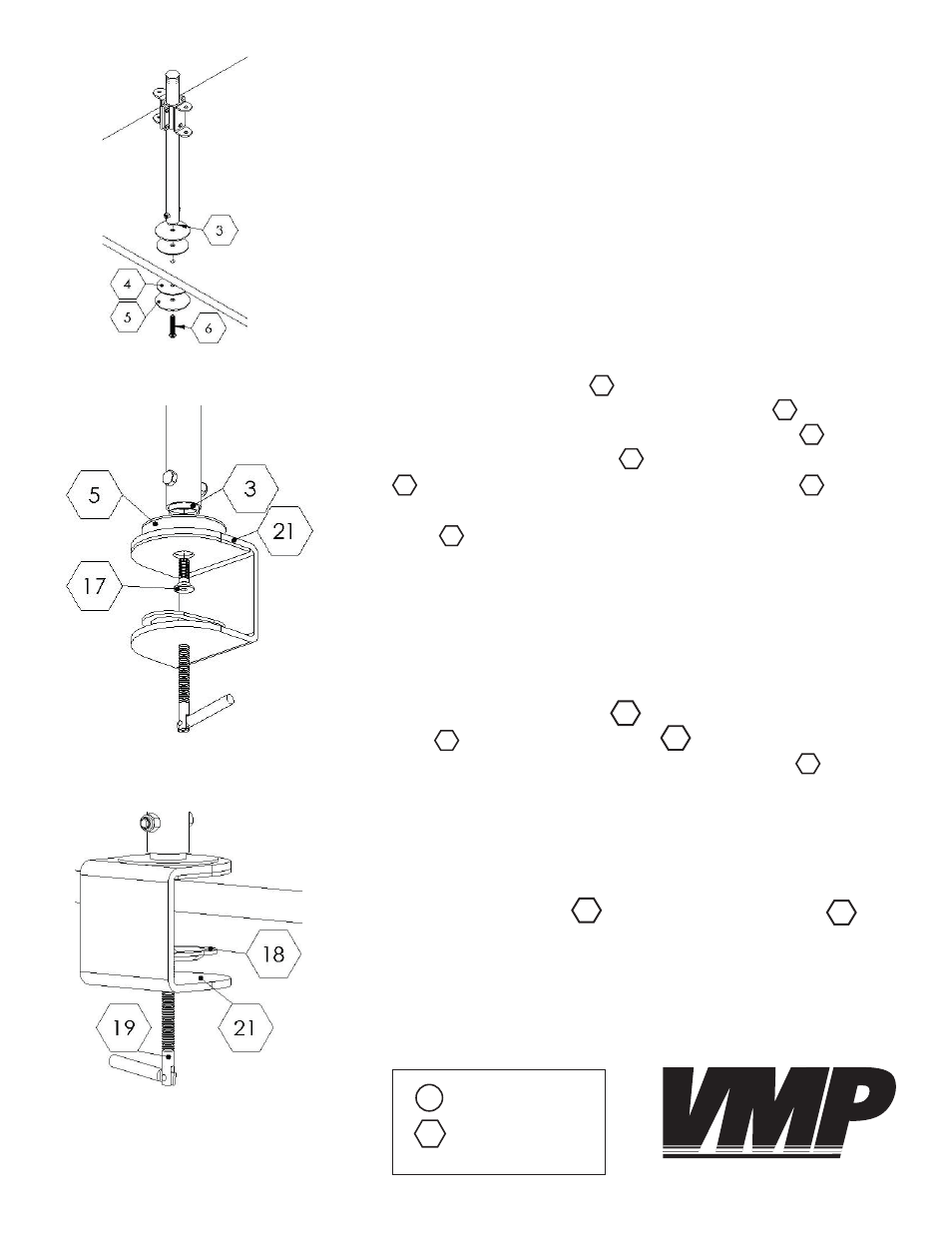

Step 2: Through bolting the mount

Step 3: Connecting the base seat

Step 4: Clamping down on the desk

VIDEO MOUNT PRODUCTS

Key:

LCD-1

LCD-DM2
