Alcatel-Lucent 1645 AMC Access Mutiplexer Compact 6

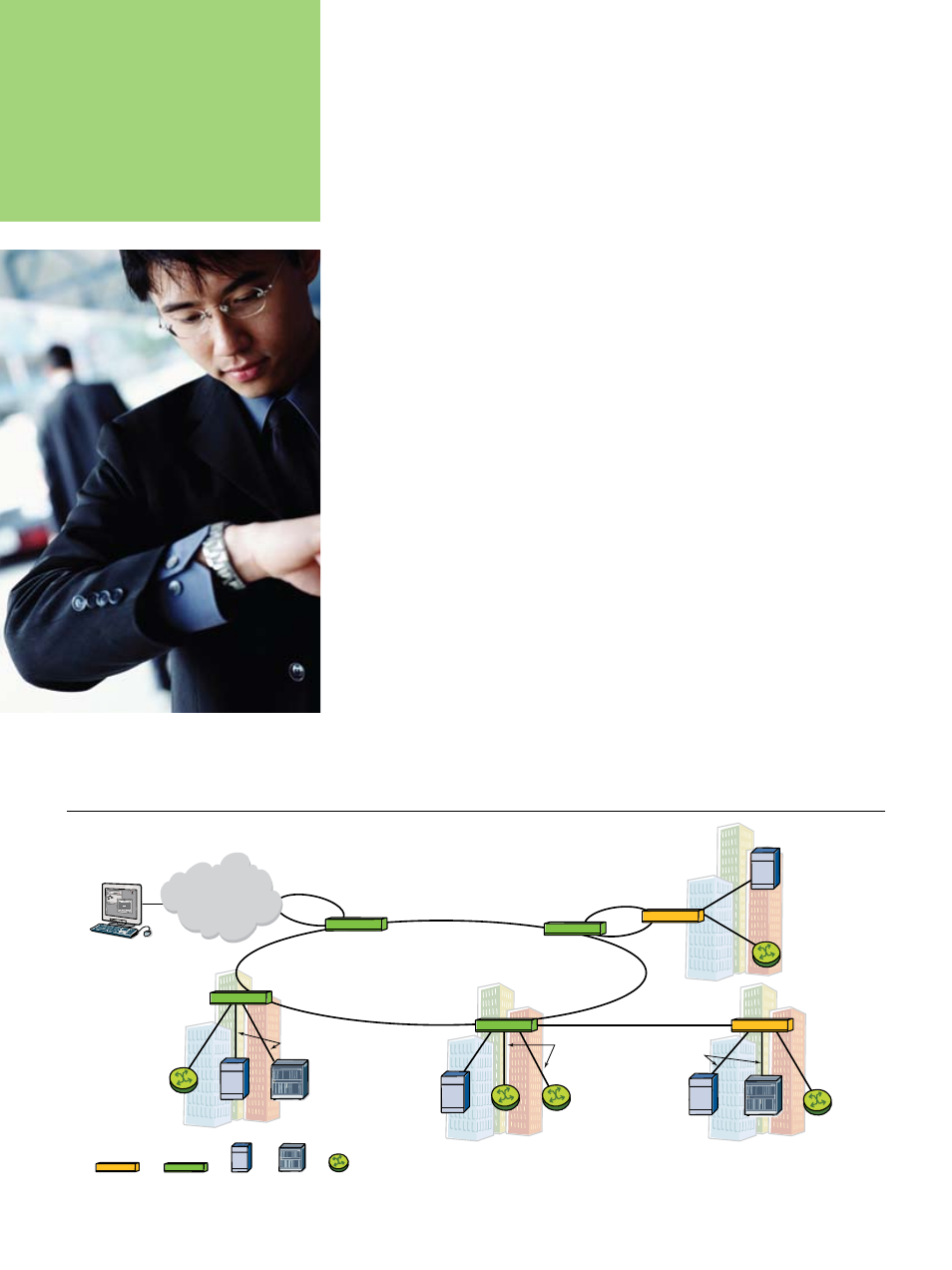

Figure 1. 1645 AMC supporting a typical metro-access application
STM-4
1643 AMS 1645 AMC
1350 OMS
ATM
switch
Router PABX
10/100/1000
Ethernet
STM-1
STM-1
STM-4
E1, E3, DS3,
STM-1
E1, E3, DS3
10/100/1000
Ethernet
10/100/1000
Ethernet
E1, E3, DS3
SDH
(STM-16/64)
1850 TSS
16XX OMSN
10/100/1000
Ethernet E1, E3, DS3, STM-1
Cost-effective TDM,
IP and Ethernet
Create new revenue-generating op-
portunities by offering more services
to SME customers. Transport metro
and access services over existing SDH
facilities, eliminating the need for
overlay networks.
The 1645 AMC offers Ethernet
and IP applications, including:
• Economical voice and data CPE
• Ethernet services for business
customers:
¬ Point-to-point Ethernet
private line (EPL)
¬ Point-to-multipoint Ethernet
virtual private line (EVPL)
¬ E-LAN
• Multipoint-to-multipoint virtual
line/LAN services (packet ring)
with bandwidth sharing and
statistical multiplexing
• Ethernet over copper using
symmetric high-speed digital
subscriber line (SHDSL)
• Second-Generation Mobile
Network/Third-Generation
Mobile Network (2G/3G)
mobile aggregation
The 1645 AMC supports cost-
efficient and reliable transport of
TDM and Ethernet services in the
metro access. Figure 1 shows the
1645 AMC and the Alcatel-Lucent
1643 Access Multiplexer Small (AMS)
platforms working together to support
a typical metro-access application,
with the 1645 AMC providing STM-4
transport and the 1643 AMS
supporting STM-1 transport for
multiservice traffic.
