EB-5662RE
High Performance GPS Engine Board
- 26 -
Appendix

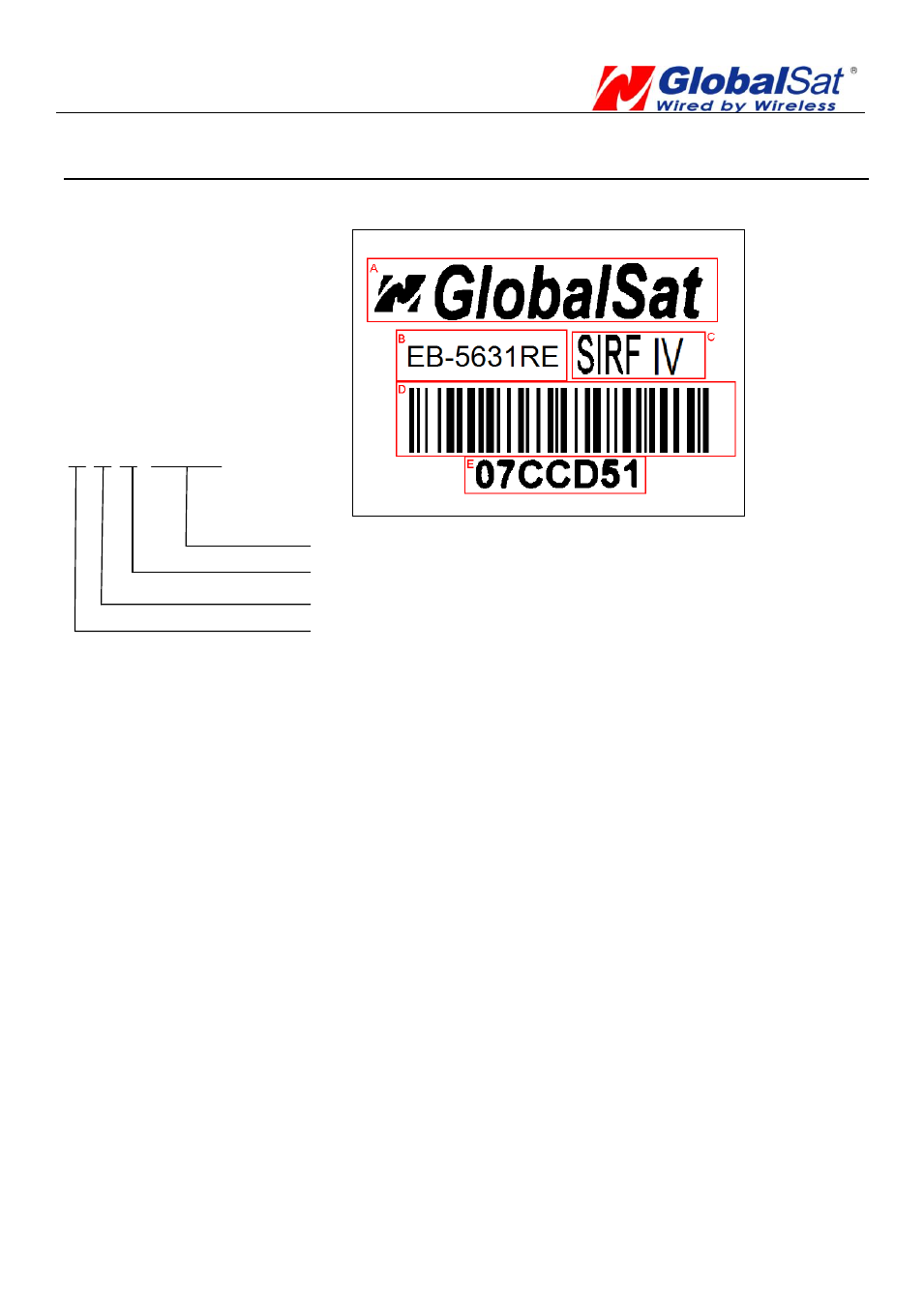

LABEL Artwork
A: Brand: GLOBALSAT
B: MODULE Model: EB-5662RE
B-1:
R = UART, I = I2C I/F
E = Included EEPROM
C: CHIP Type: SiRF IV
D: Bar code
E: Serial Number:
□ □ □ □□□□
Product NO (HEX)
Place of origin, T= Taiwan, C=China
Product Month, 123456789XYZ, X->Oct,Y->Nov,Z->Dec
Product Year
Function Description
EB-5662RC
EB-5662RC default is close Static Mode and SBAS; B/R setting 4800; NMEA output is GGA, GLL,
GSA and RMC. Output rate is 1 message per 1 second. GSV rate is 1 message per 5 second.
1PPS output = 200mS.
EB-5662RJ
EB-5662RC default is close Static Mode and SBAS; B/R setting 9600; NMEA output is GGA, GLL,
GSA and RMC. Output rate is 1 message per 1 second. GSV rate is 1 message per 5 second.
1PPS output = 200mS.
EB-5662RE
EB-5662RE default is open Static Mode; close SBAS; B/R setting 9600; NMEA output is GGA,
GSA, GSV, RMC, VTG, GLL and ZDA. Output rate is 1 message per 1 second. GPS is not 3D
Fixes, the GPIO5 is LO output, 3D Fixed is Flash output, or other GPS feature and NMEA output
feature.
EB-5662RU
EB-5662RU default is open Static Mode; close SBAS; B/R setting 9600.When GPS is not 3D
Fixes, the GPIO5 is LO output, 3D Fixed is Flash output, and have GPS Active ANTENNA detect
function feature.
