Trail Master 6.0 Inch Knuckle Suspension Lift Kit with Rear NGS Shocks (TM403N) - Manual (Page 17)

TM403N
Revised
12.5.13
17
5/16” X 1”
Bolts
T
hr
ea
d L
oc
kin
g
C
om
po
un
d

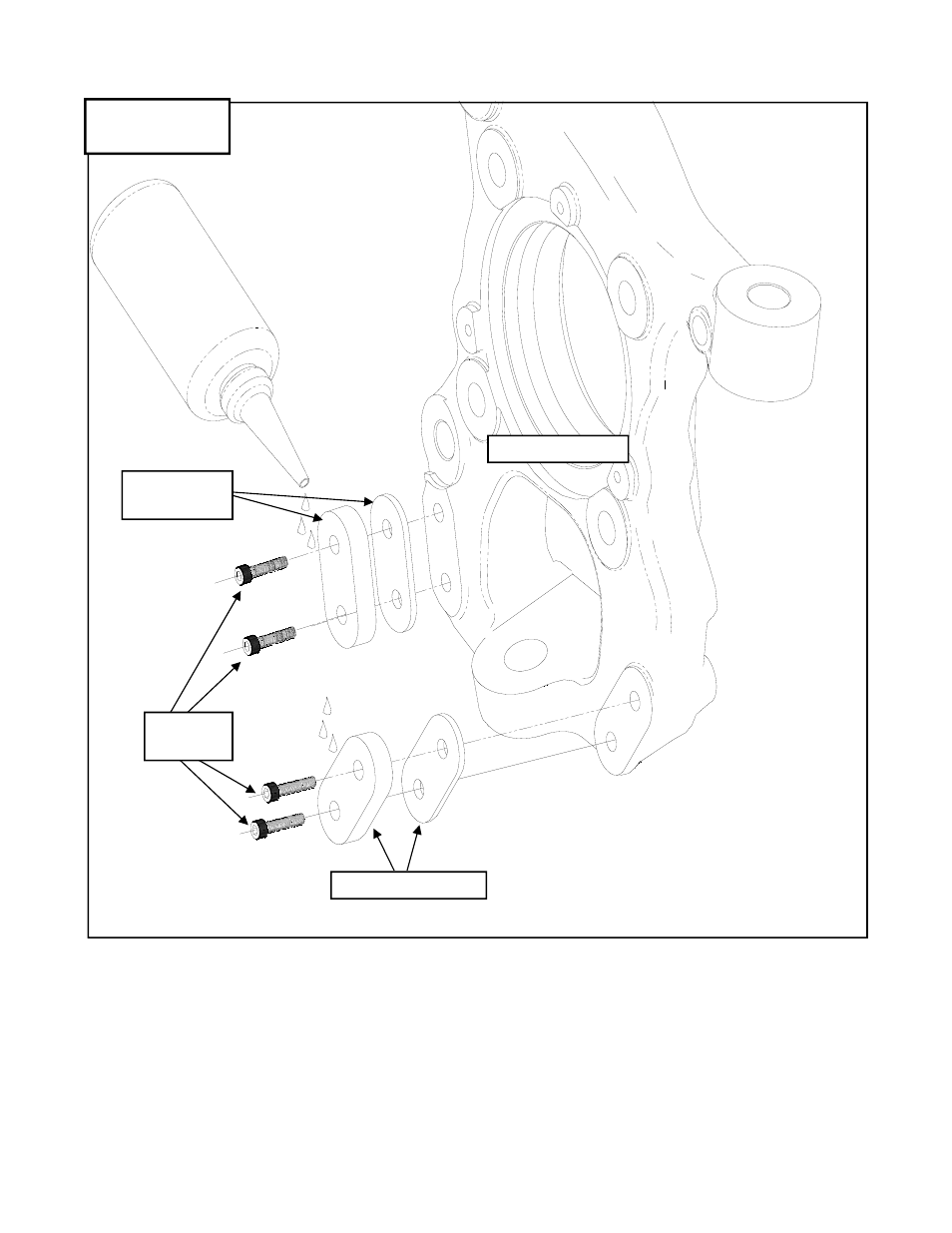

NOTE: This Illustration is just a representation and every application will be different
Illustration C
Shim Installation
Steering Stop Shims
Steering Stop
Shims
Steering Knuckle
